4I-1455 Hose Repair Specifications

Excavator · Caterpillar · CAT®317-A · Attachments – Breaker

Finished length2,330 mm

Locate this hose

Installation diagram — Pipe No. 22

Locate Pipe No. 22 in the diagram, then confirm part number 4I-1455 before removing the hose.

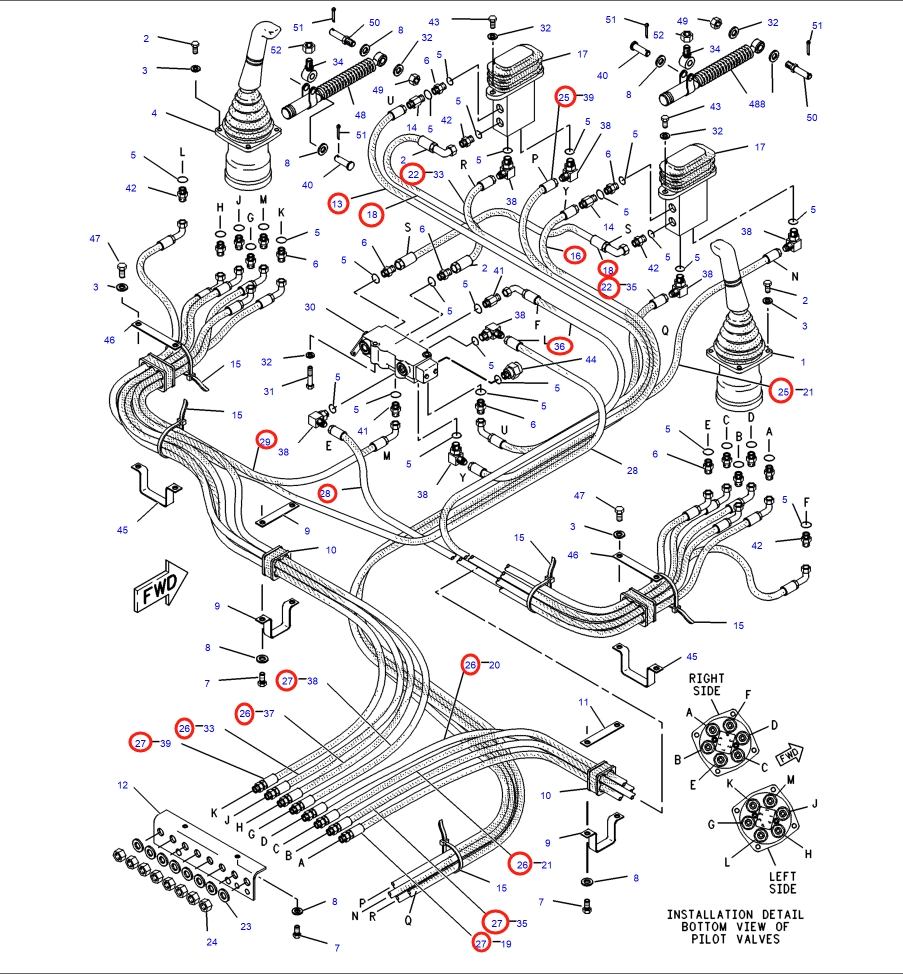

Caterpillar CAT®317-A installation diagram showing hydraulic hose 4I-1455 at Pipe No. 22 — Caterpillar CAT®317-APart 4I-1455 · Pipe No. 22Open full-size diagram

Repair specifications

Part number: 4I-1455
Diagram pipe number: 22
Installation route: 破碎器踏板~分配阀
Hose specification: DN10;-6;10.3Mpa
Finished length: 2,330 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 25

4I-6242

Installation route: 破碎器踏板~分配阀

Length: 2,950 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 8

4I-3778

Installation route: 破碎器踏板~手动阀

Length: 820 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 5

4I-1455

Installation route: 破碎器踏板~分配阀下

Length: 2,330 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
