Hose assembly specifications

F694022 Hydraulic Hose Specifications

Forestry Machine · John Deere · 1070G Wheeled Harvester

Total length500 mm

Hose drawing

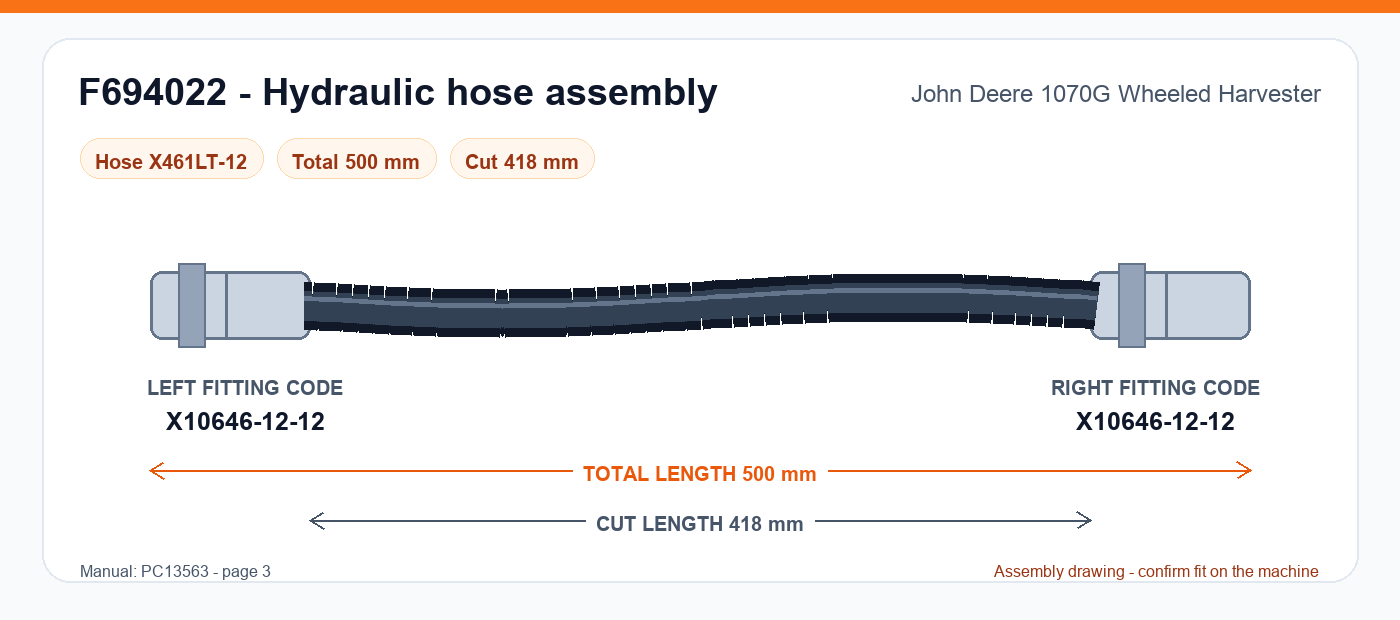

Hose assembly drawing

Check the total length and both fitting codes before fabrication.

F694022 hydraulic hose assembly drawing for John Deere 1070G Wheeled Harvester - 500 mm total length, left fitting X10646-12-12, right fitting X10646-12-12 — F694022 - 500 mm total length. Select the drawing to open it full size.

Repair measurements

These text values can be translated and copied. Confirm them against the machine before fabrication.

Machine: John Deere 1070G Wheeled Harvester
Part number: F694022
Hose type: X461LT-12
Total length: 500 mm
Cut length: 418 mm
Left-end hydraulic fitting code: X10646-12-12Look up this code
Right-end hydraulic fitting code: X10646-12-12Look up this code
Manual reference: PC13563, page 3

Hose assembly details

Part number: F694022
Hose type: X461LT-12
Total length: 500 mm
Cut length: 418 mm
Left fitting code: X10646-12-12
Right fitting code: X10646-12-12
Application: 1070G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II
Manual page: 3

Download manual
