Individual hose record
292-7176 Hose Repair Specifications
Excavator · Caterpillar · CAT®318D2 · Hydraulic Pump
Finished length960 mm
Locate this hose

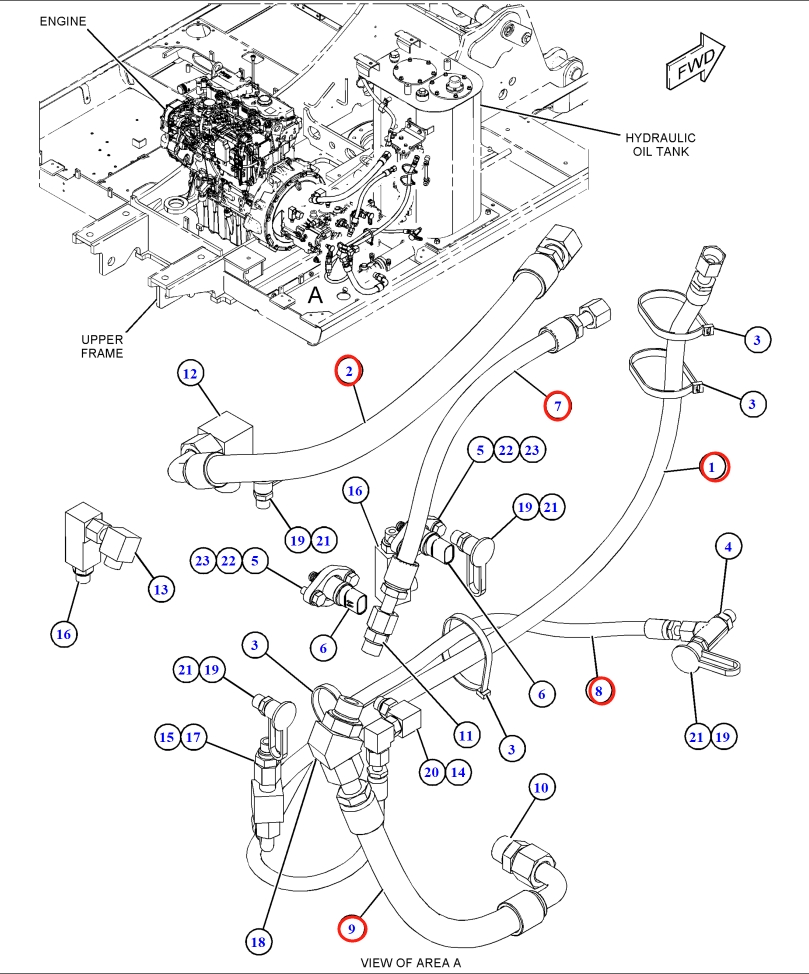

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number 292-7176 before removing the hose.
Repair specifications
- Part number
- 292-7176
- Diagram pipe number
- 8
- Installation route
- 液压泵~测压接口
- Hose specification
- DN10;1SN-6;10.4Mpa
- Finished length
- 960 mm
- Working pressure
- 10.4 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
