Individual hose record

4I-6610 Hose Repair Specifications

Excavator · Caterpillar · CAT®317-A · Grease Lines

Finished length2,300 mm

Locate this hose

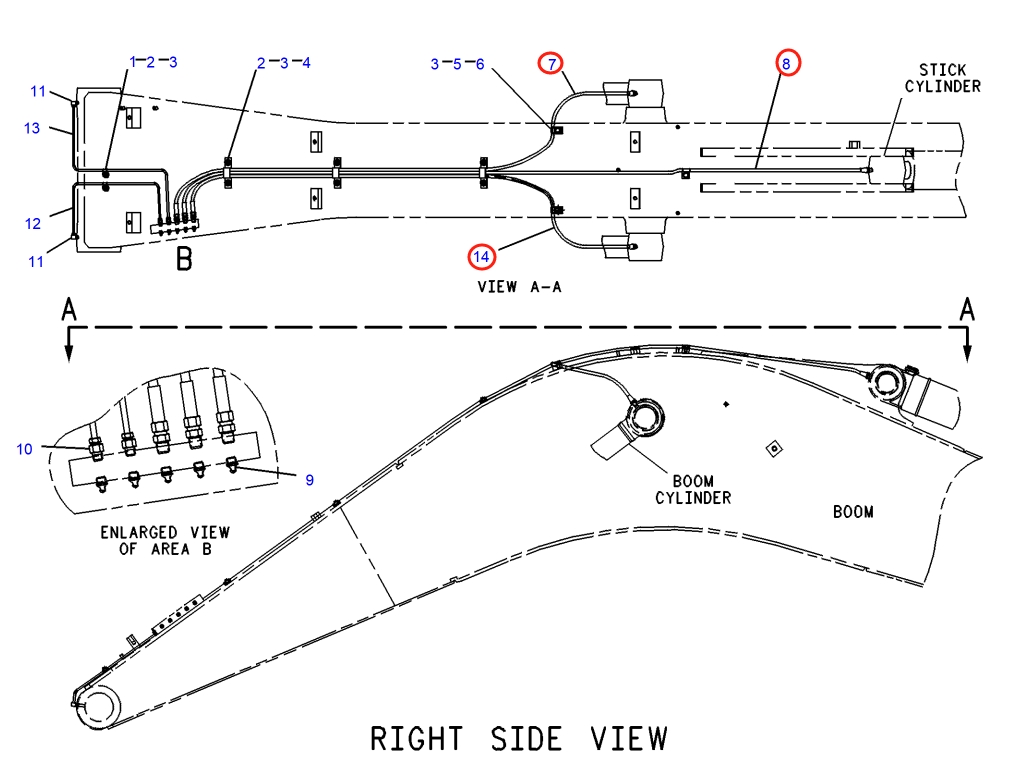

Installation diagram — Pipe No. 14

Locate Pipe No. 14 in the diagram, then confirm part number 4I-6610 before removing the hose.

Caterpillar CAT®317-A installation diagram showing hydraulic hose 4I-6610 at Pipe No. 14
Caterpillar CAT®317-APart 4I-6610 · Pipe No. 14Open full-size diagram

Repair specifications

Part number
4I-6610
Diagram pipe number
14
Installation route
Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管
Hose specification
DN6;-4;19.2Mpa
Finished length
2,300 mm
Working pressure
19.2 MPa
Left fitting
美制锥形外螺纹30°内锥
Right fitting
美制锥形外螺纹
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 8

113-2128

Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管

Length
3,050 mm
Specification
DN6;-4;19.2Mpa
Left fitting
美制锥形外螺纹30°内锥
Right fitting
美制锥形外螺纹
View full repair specifications

Diagram Pipe No. 7

105-6458

Installation route: Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管

Length
2,400 mm
Specification
DN6;-4;19.2Mpa
Left fitting
美制锥形外螺纹30°内锥
Right fitting
美制锥形外螺纹
View full repair specifications

For reference only. Confirm the actual hose before fabrication.
