Individual hose record

113-6741 Hose Repair Specifications

Excavator · Caterpillar · CAT®312D L · Attachments – Lock Valve

Finished length2,950 mm

Locate this hose

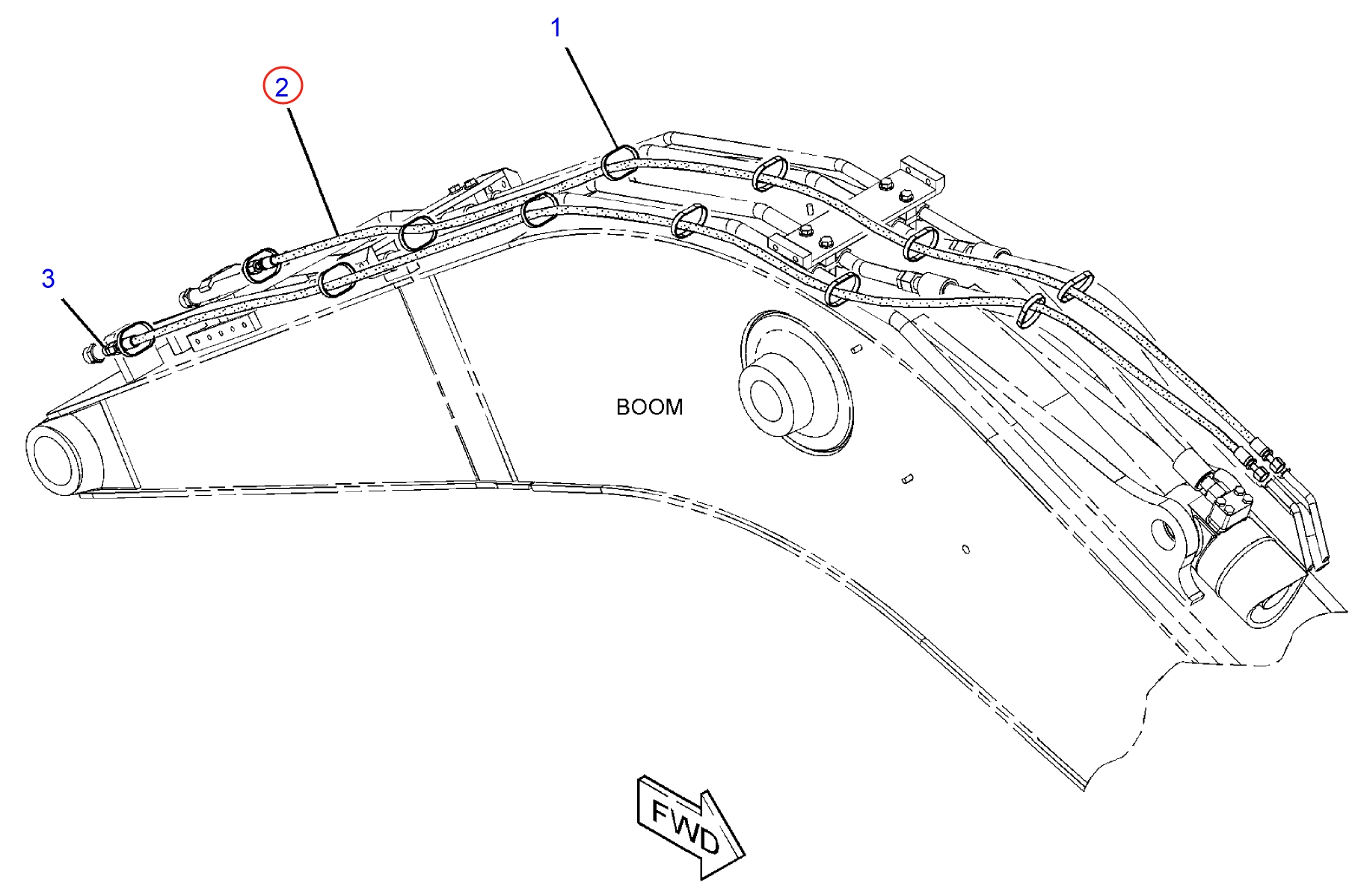

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 113-6741 before removing the hose.

Caterpillar CAT®312D L installation diagram showing hydraulic hose 113-6741 at Pipe No. 2
Caterpillar CAT®312D LPart 113-6741 · Pipe No. 2Open full-size diagram

Repair specifications

Part number
113-6741
Diagram pipe number
2
Installation route
小臂油缸锁止阀
Hose specification
DN10;1SN-6;10.4Mpa
Finished length
2,950 mm
Working pressure
10.4 MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity
2

Same system

Related Hoses

Diagram Pipe No. 4

223-8666

Installation route: 大臂油缸锁止阀

Length
2,000 mm
Specification
DN10;1SN-6;10.4Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 12

296-7054

Installation route: 大臂油缸锁止阀~过渡接头(大臂油缸锁止阀)

Length
300 mm
Specification
DN10;1SN-6;10.4Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

For reference only. Confirm the actual hose before fabrication.
