485-1649 Hose Repair Specifications

Excavator · Caterpillar · CAT®313F LGC · Attachments – Quick Coupler

Finished length2,250 mm

Locate this hose

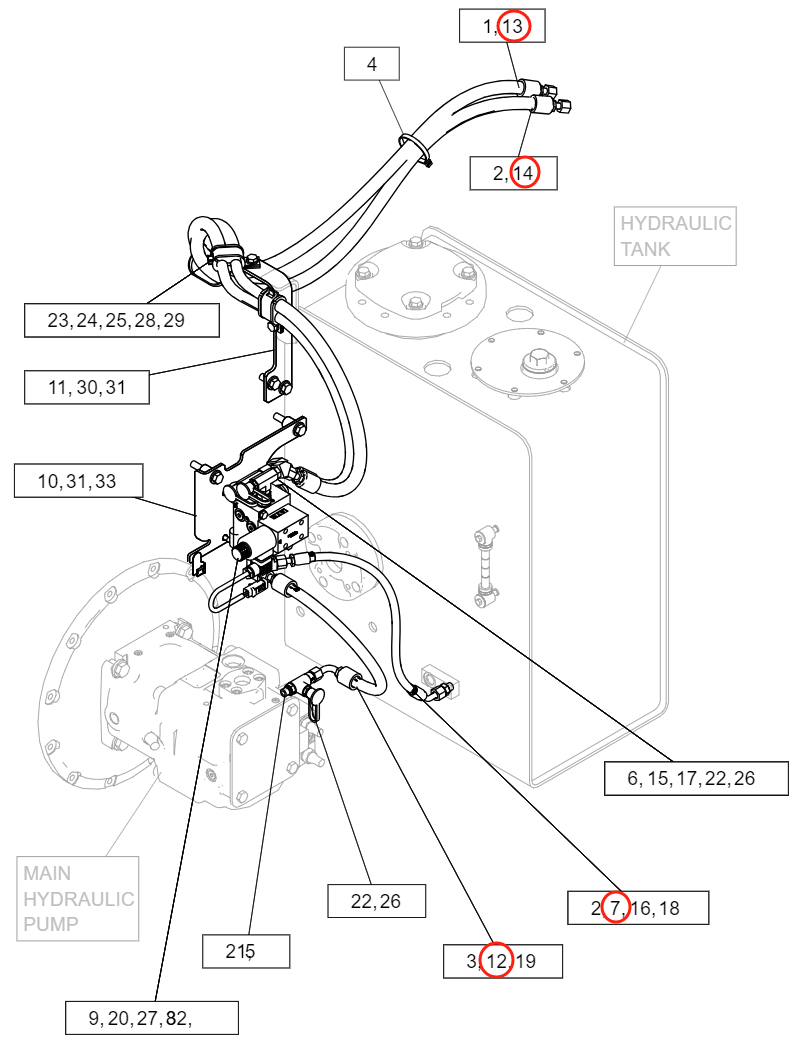

Installation diagram — Pipe No. 13

Locate Pipe No. 13 in the diagram, then confirm part number 485-1649 before removing the hose.

Part number: 485-1649
Diagram pipe number: 13
Installation route: 大臂(快换)~快速联轴阀
Hose specification: DN10;6SH-6;42Mpa
Finished length: 2,250 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 14

Installation route: 大臂(快换)~快速联轴阀

Length: 2,230 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 13

Installation route: 大臂(快换)~快速联轴阀

Length: 2,300 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 14

Installation route: 大臂(快换)~快速联轴阀

Length: 2,350 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
