- Length
- 630 mm
- Specification
- DN25;1SN-16;7Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Individual hose record
457-8523 Hose Repair Specifications
Excavator · Caterpillar · CAT®313F LGC · Hydraulic Pump
Finished length1,280 mm
Locate this hose

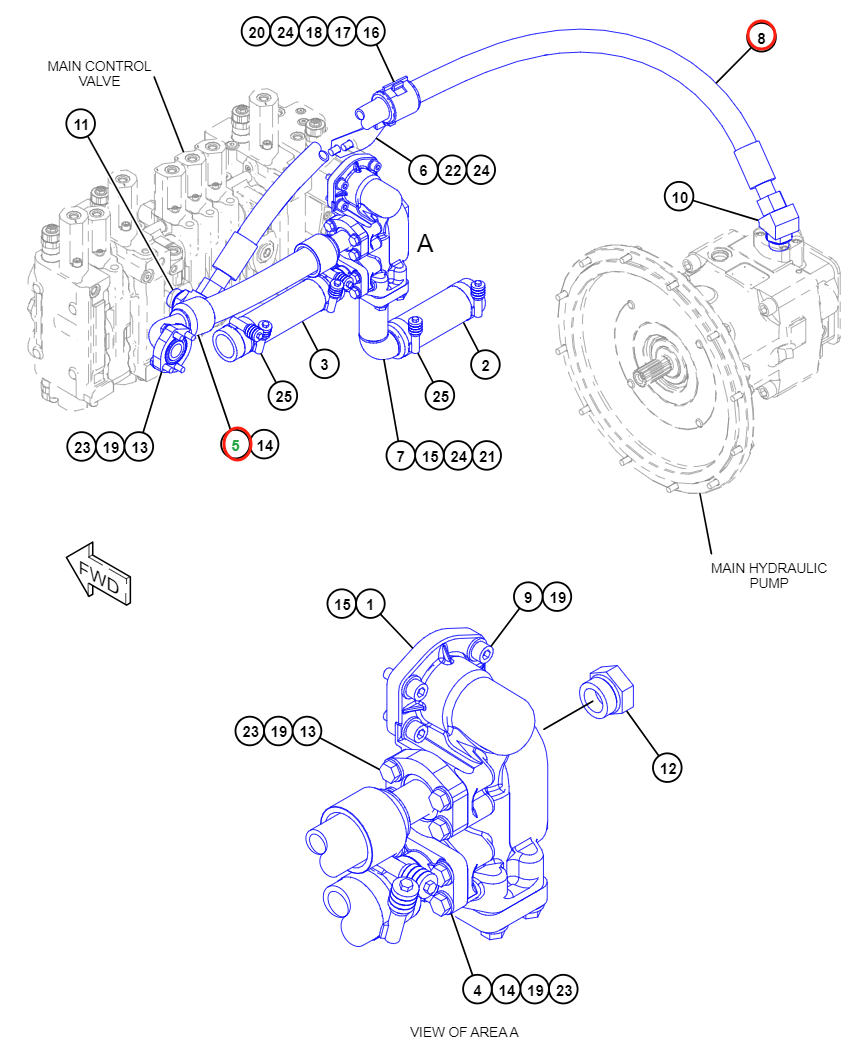

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number 457-8523 before removing the hose.
Repair specifications
- Part number
- 457-8523
- Diagram pipe number
- 8
- Installation route
- 液压泵上~分配阀后
- Hose specification
- DN25;6SH-16;42Mpa
- Finished length
- 1,280 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
