Individual hose record

227-0292 Hose Repair Specifications

Excavator · Caterpillar · CAT®314D LCR · Hydraulic Tank

Finished length380 mm

Locate this hose

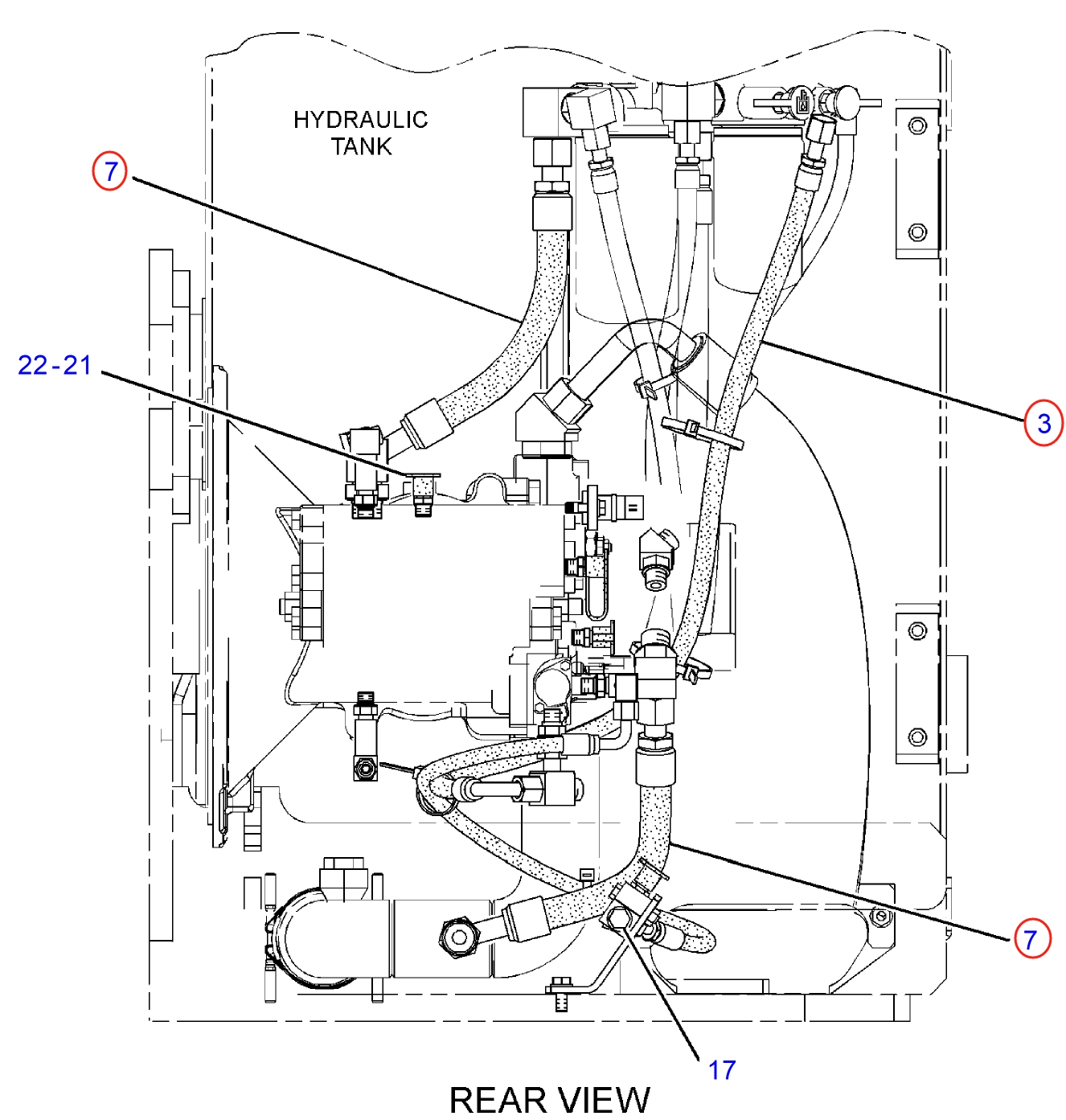

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 227-0292 before removing the hose.

Part number: 227-0292
Diagram pipe number: 7
Installation route: 液压油箱~液压油过滤器
Hose specification: DN19;1SN-12;8.7Mpa
Finished length: 380 mm
Working pressure: 8.7 MPa
Left fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 7

Installation route: 液压油箱~吸油铁管

Length: 380 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
