Individual hose record

223-8666 Hose Repair Specifications

Excavator · Caterpillar · CAT®312D L · Attachments – Lock Valve

Finished length2,000 mm

Locate this hose

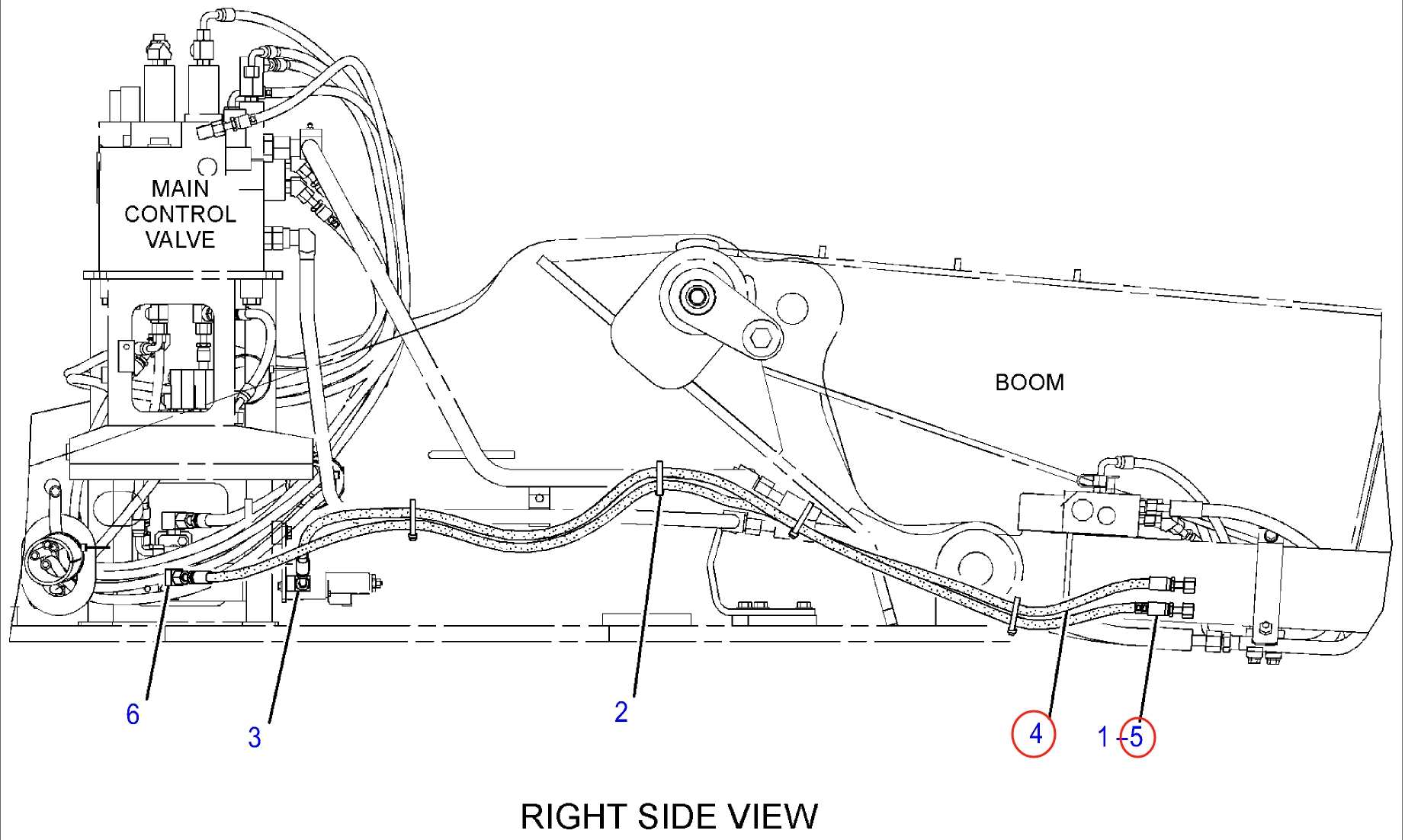

Installation diagram — Pipe No. 4

Locate Pipe No. 4 in the diagram, then confirm part number 223-8666 before removing the hose.

Part number: 223-8666
Diagram pipe number: 4
Installation route: 大臂油缸锁止阀
Hose specification: DN10;1SN-6;10.4Mpa
Finished length: 2,000 mm
Working pressure: 10.4 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 2

Installation route: 小臂油缸锁止阀

Length: 2,950 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 12

Installation route: 大臂油缸锁止阀~过渡接头(大臂油缸锁止阀)

Length: 300 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
