Individual hose record
5W-6847 Hose Repair Specifications
Excavator · Caterpillar · CAT®212 · Attachments
Finished length1,200 mm
Locate this hose

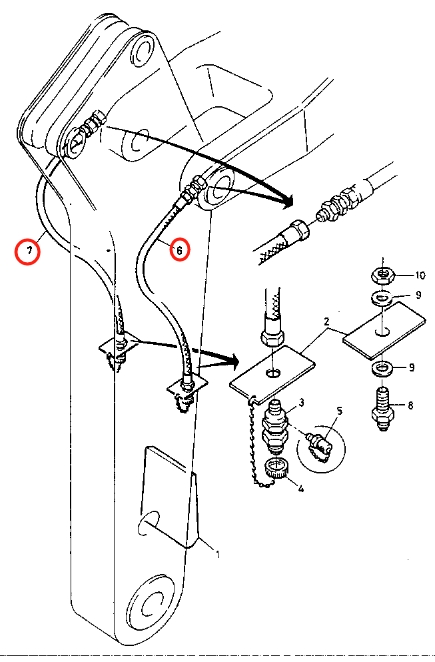

Installation diagram — Pipe No. 7
Locate Pipe No. 7 in the diagram, then confirm part number 5W-6847 before removing the hose.
Repair specifications
- Part number
- 5W-6847
- Diagram pipe number
- 7
- Installation route
- 大臂(附加装置)~小臂(附加装置)
- Hose specification
- DN19;4SP-12;35Mpa
- Finished length
- 1,200 mm
- Working pressure
- 35 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-重型
- Right fitting
- 公制内螺纹24°锥带O形圈-重型
- Quantity
- 1
