7I-7117 Hose Repair Specifications

Excavator · Caterpillar · CAT®318B · Attachments

Finished length3,250 mm

Locate this hose

Installation diagram — Pipe No. 7

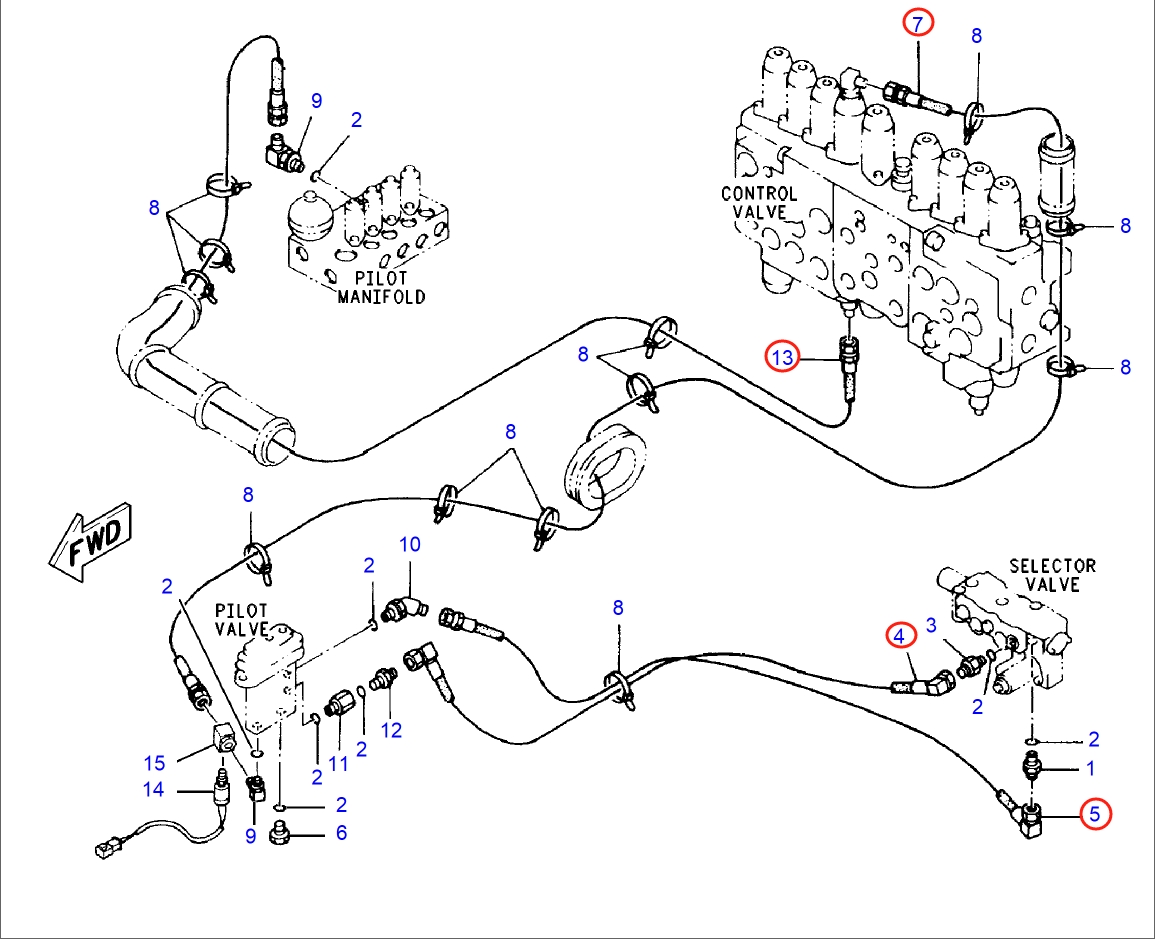

Locate Pipe No. 7 in the diagram, then confirm part number 7I-7117 before removing the hose.

Caterpillar CAT®318B installation diagram showing hydraulic hose 7I-7117 at Pipe No. 7 — Caterpillar CAT®318BPart 7I-7117 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: 7I-7117
Diagram pipe number: 7
Installation route: 踏板(附加装置)~分配阀上
Hose specification: DN10;-6;10.3Mpa
Finished length: 3,250 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 7

4I-6233

Installation route: 踏板(附加装置)~分配阀下

Length: 2,650 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 11

5I-3139

Installation route: 过渡阀块(回转接头右)~

Length: 1,700 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 13

142-1107

Installation route: 踏板(附加装置)~手动阀(分配阀前)

Length: 3,550 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 5

142-1113

Installation route: 手动阀(回转马达右)~控制阀(回转马达右)

Length: 370 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
