Individual hose record
108-7285 Hose Repair Specifications
Excavator · Caterpillar · CAT®317B LN · Control Valve
Finished length440 mm
Locate this hose

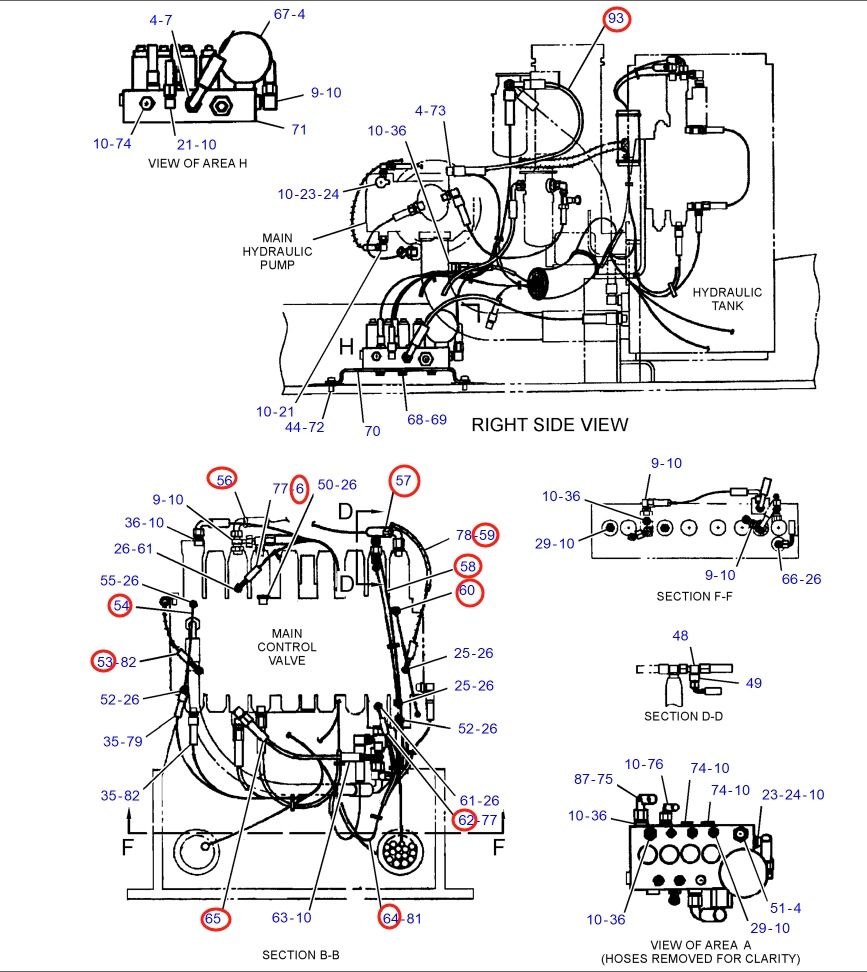

Installation diagram — Pipe No. 54
Locate Pipe No. 54 in the diagram, then confirm part number 108-7285 before removing the hose.
Repair specifications
- Part number
- 108-7285
- Diagram pipe number
- 54
- Installation route
- 分配阀前~
- Hose specification
- DN6;-4;10.3Mpa
- Finished length
- 440 mm
- Working pressure
- 10.3 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 1
