Hose assembly specifications

F699469 Hydraulic Hose Specifications

Forestry Machine · John Deere · 1470G Wheeled Harvester

Total length630 mm

Hose drawing

Hose assembly drawing

Check the total length and both fitting codes before fabrication.

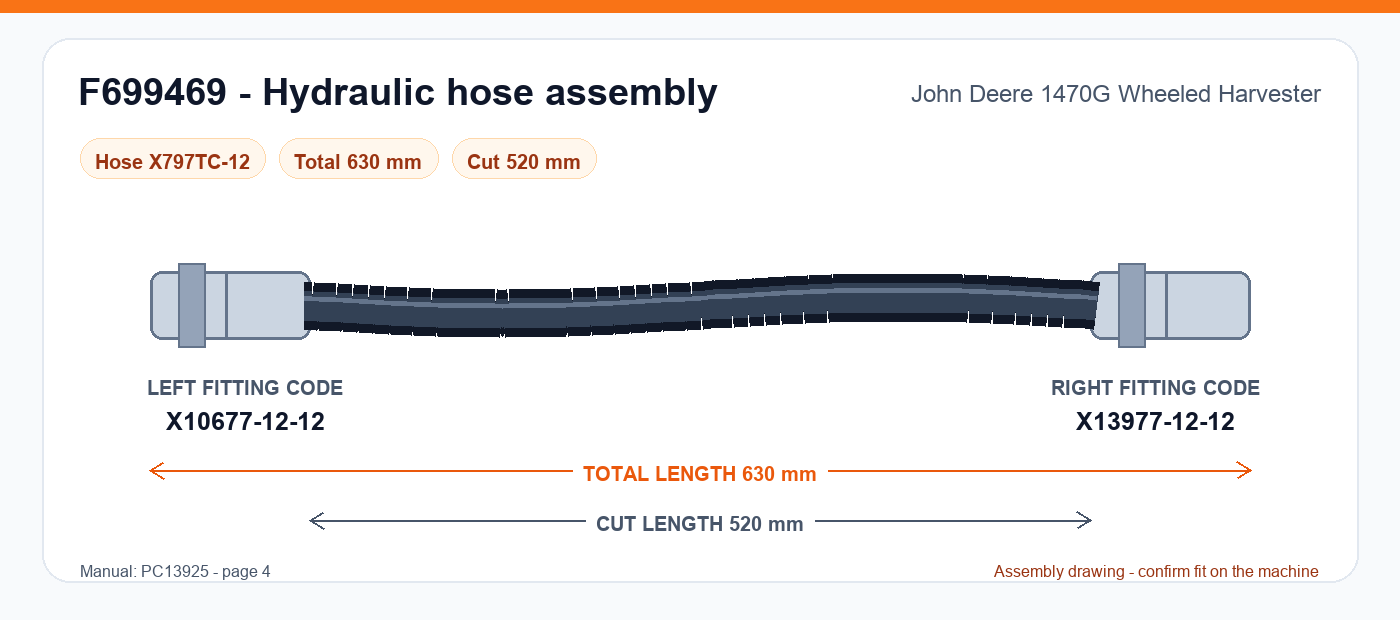

F699469 hydraulic hose assembly drawing for John Deere 1470G Wheeled Harvester - 630 mm total length, left fitting X10677-12-12, right fitting X13977-12-12 — F699469 - 630 mm total length. Select the drawing to open it full size.

Repair measurements

These text values can be translated and copied. Confirm them against the machine before fabrication.

Machine: John Deere 1470G Wheeled Harvester
Part number: F699469
Hose type: X797TC-12
Total length: 630 mm
Cut length: 520 mm
Left-end hydraulic fitting code: X10677-12-12Look up this code
Right-end hydraulic fitting code: X13977-12-12Look up this code
Manual reference: PC13925, page 4

Hose assembly details

Part number: F699469
Hose type: X797TC-12
Total length: 630 mm
Cut length: 520 mm
Left fitting code: X10677-12-12
Right fitting code: X13977-12-12
Application: 1470G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II, Grey
Manual page: 4

Download manual
