Doosan DH215-9 Hydraulic Hose Length & Fitting Lookup

Available Doosan DH215-9 workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.

Fast lookup

Find the exact hose data you need

Search the complete catalog by model, brand, part number, system, hose specification, or installation route.

A model or part number usually gives the fastest result.

Technician notes

Workshop measurements

These notebook pages may help identify a hose or compare a recorded length. Confirm the final length, fittings, pressure rating, and routing on the machine before fabrication.

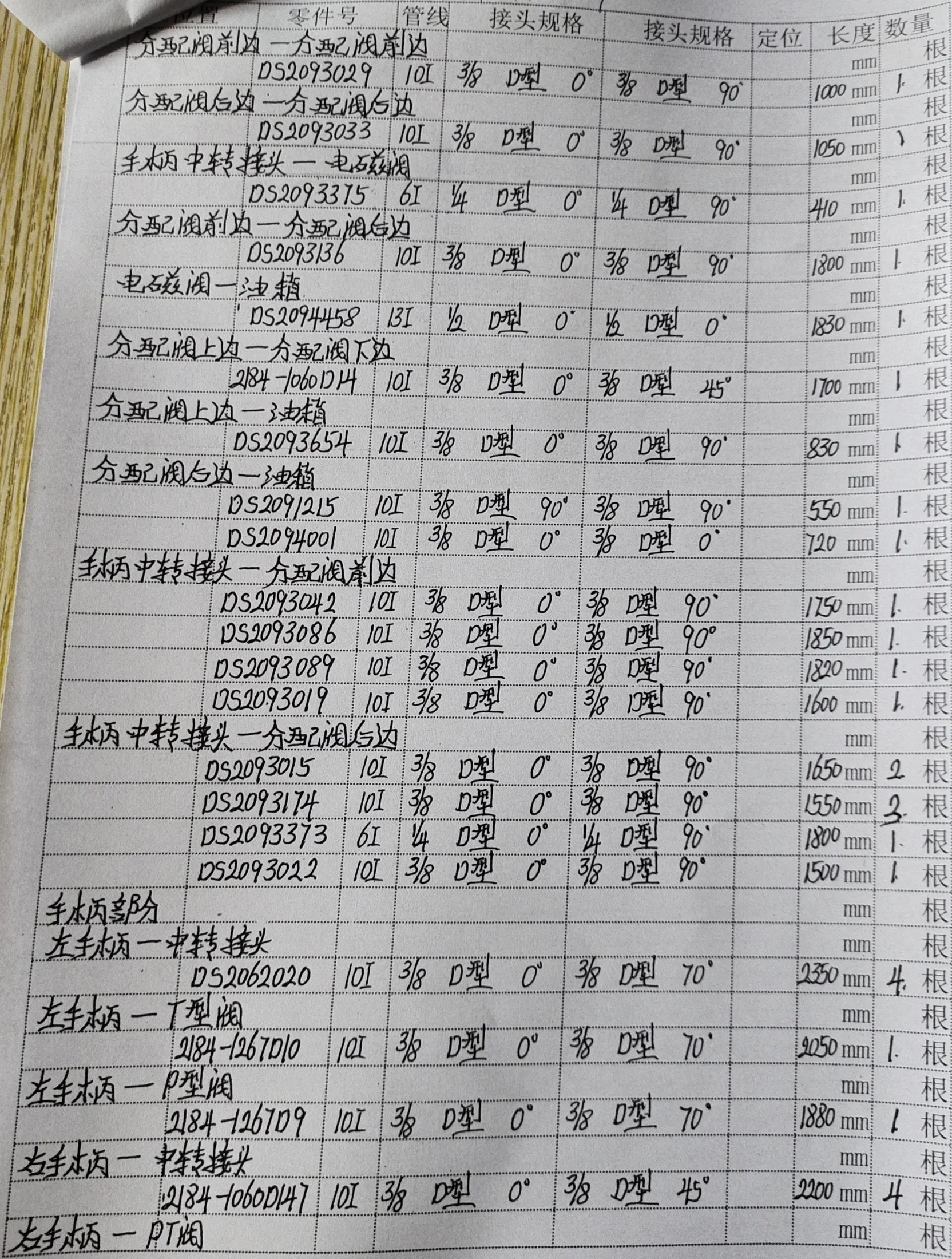

Doosan DH215-9 hydraulic hose part numbers and recorded lengths — technician notebook page 4 of 5
Notebook page 4 of 5View full-size

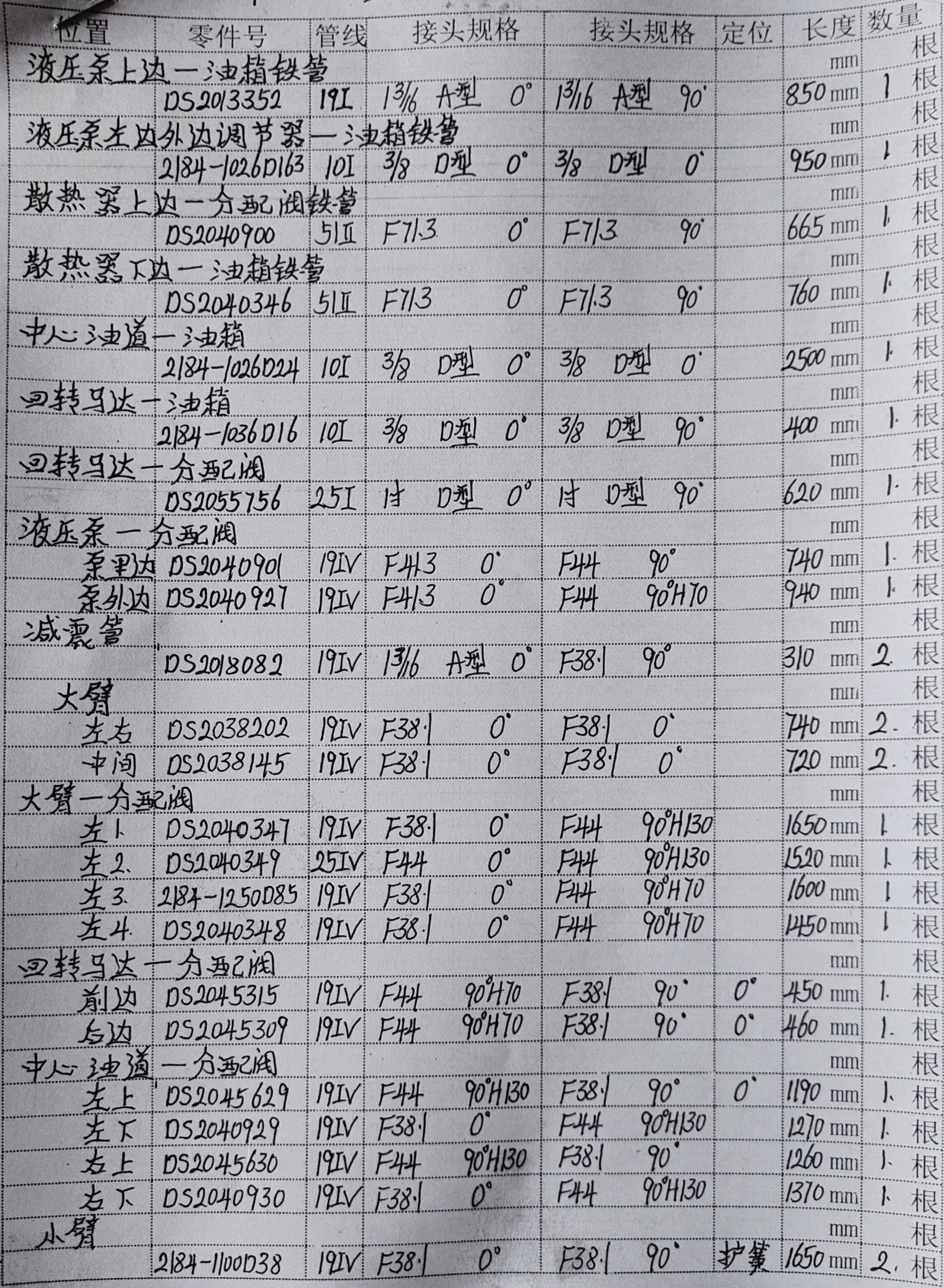

Doosan DH215-9 hydraulic hose part numbers and recorded lengths — technician notebook page 1 of 5
Notebook page 1 of 5View full-size

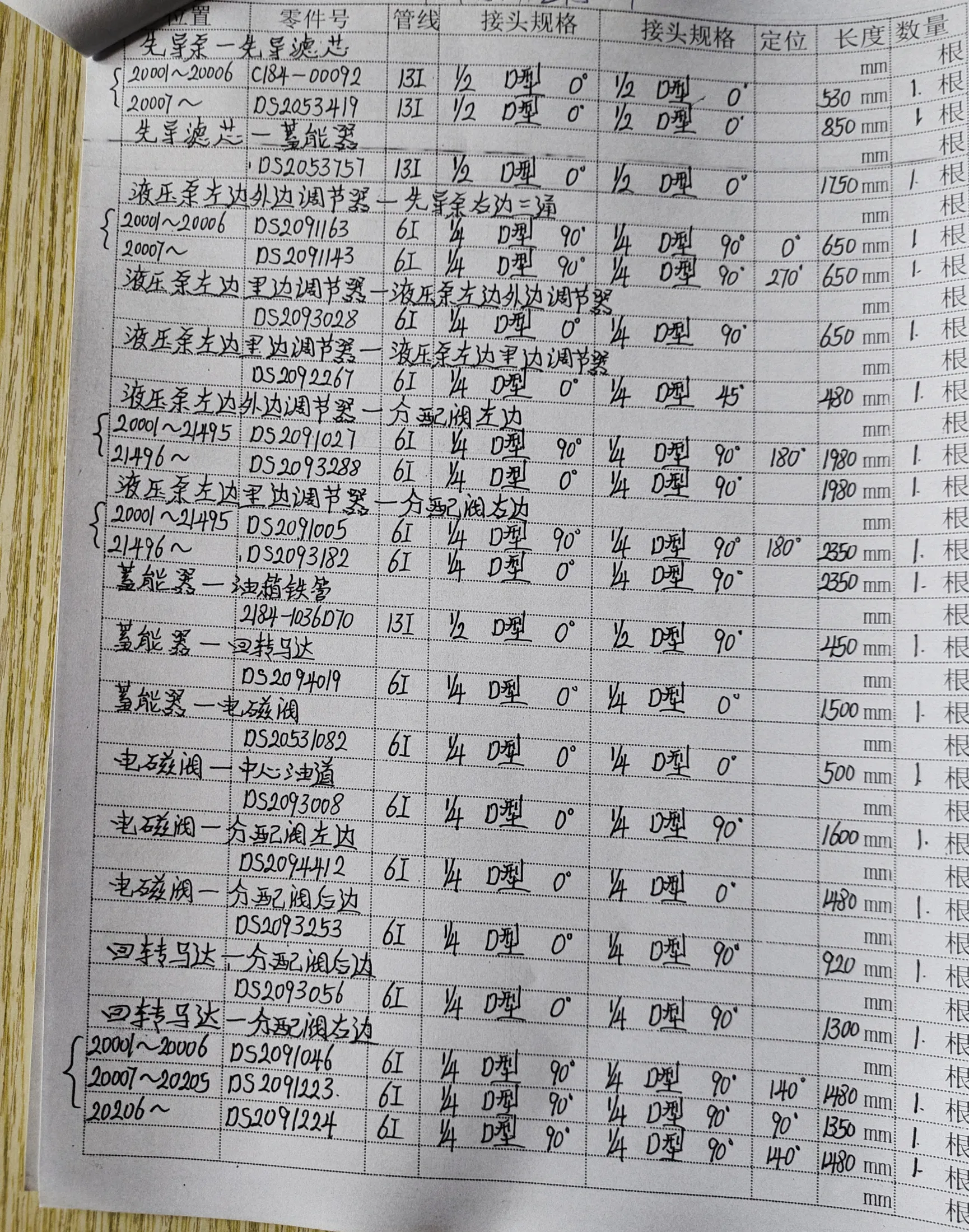

Doosan DH215-9 hydraulic hose part numbers and recorded lengths — technician notebook page 3 of 5
Notebook page 3 of 5View full-size

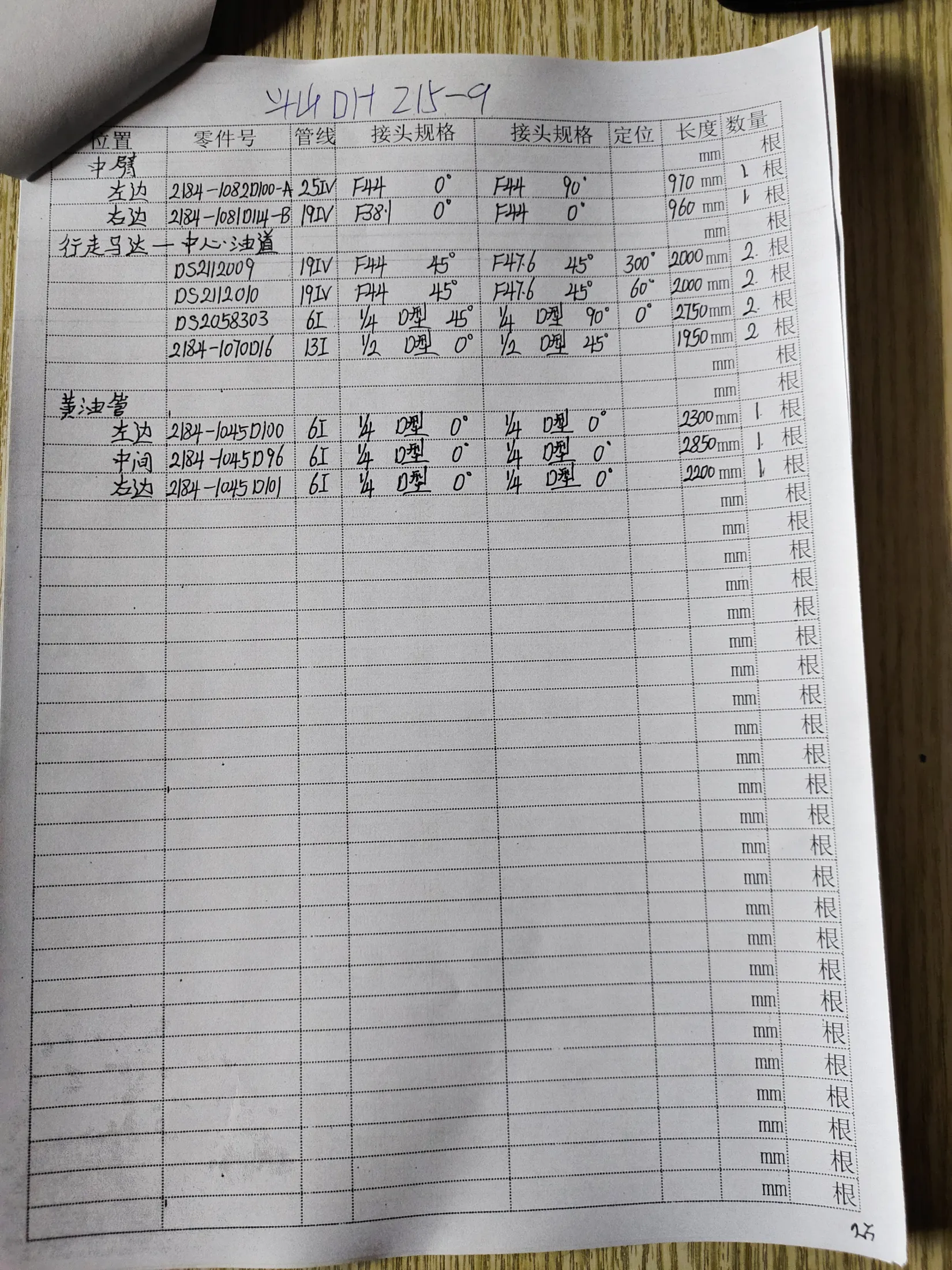

Doosan DH215-9 hydraulic hose part numbers and recorded lengths — technician notebook page 2 of 5
Notebook page 2 of 5View full-size

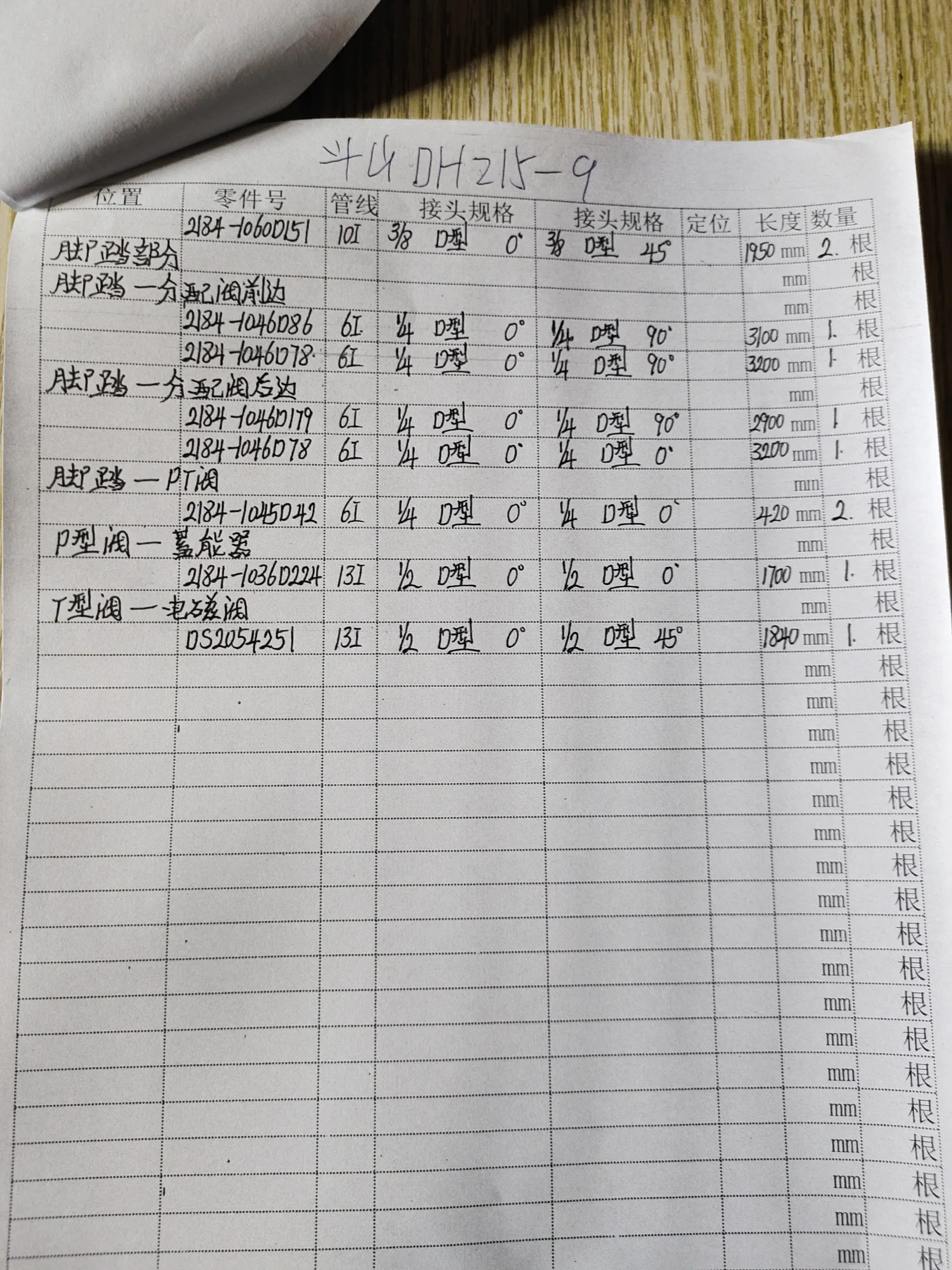

Doosan DH215-9 hydraulic hose part numbers and recorded lengths — technician notebook page 5 of 5
Notebook page 5 of 5View full-size
Workshop measurements
Part numberRecorded length
2184-04504Z420 mm
2184-1082D100-A25IV970 mm
21841060D1472,200 mm
52000495D52090271,980 mm
C184-0001Z530 mm
D520930221,500 mm
DS203352850 mm
DS2090461,350 mm
DS2038145720 mm
DS2040346760 mm
DS20403471,650 mm
DS20403481,450 mm
DS2040900665 mm
DS2040921940 mm
DS2045315450 mm
DS20456291,190 mm
DS2053411850 mm
DS2053751750 mm
DS2055756620 mm
DS20620202,350 mm
DS2091145650 mm
DS2091163650 mm
DS2092267480 mm
DS20930151,650 mm
DS2093028650 mm
DS20930331,050 mm
DS20930561,300 mm
DS20931361,800 mm
DS2093253920 mm
DS20944581,830 mm
DS21120102,000 mm
FP4D5204090740 mm
Y2184-1045D10012,300 mm
