Doosan DH300LC-7 Hydraulic Hose Length & Fitting Lookup
Available Doosan DH300LC-7 workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.
Fast lookup
Find the exact hose data you need
Search the complete catalog by model, brand, part number, system, hose specification, or installation route.
A model or part number usually gives the fastest result.
Technician notes
Workshop measurements

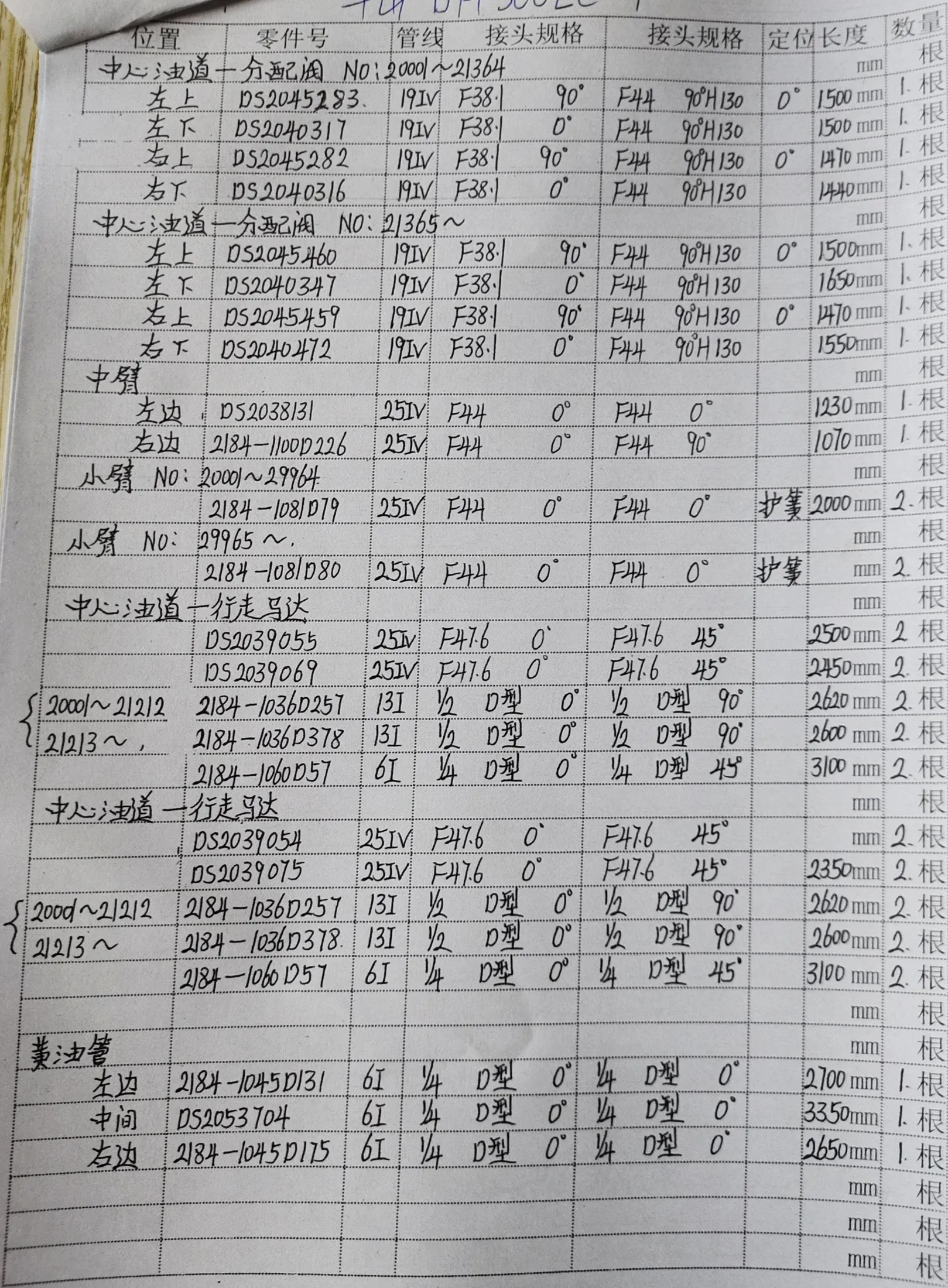

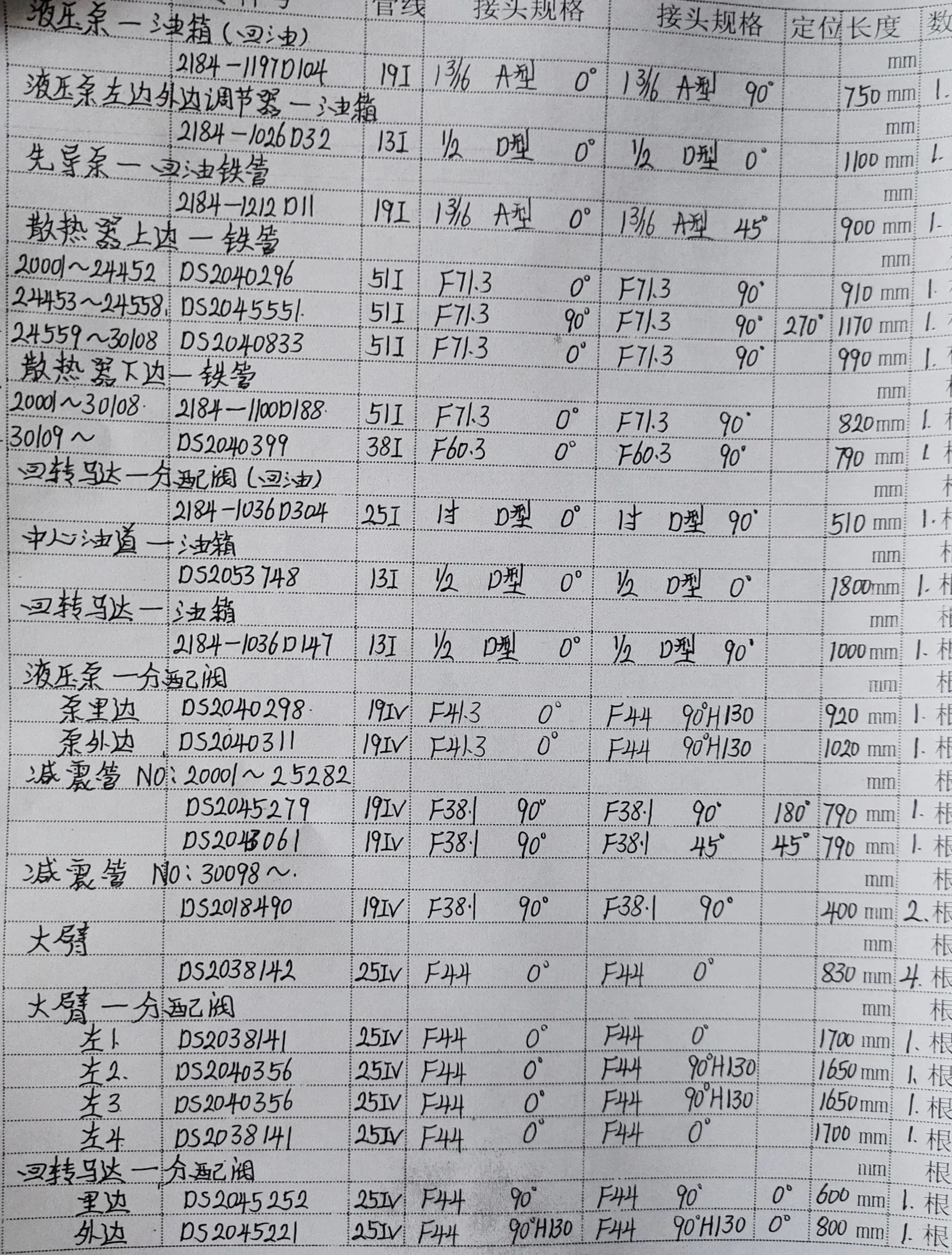

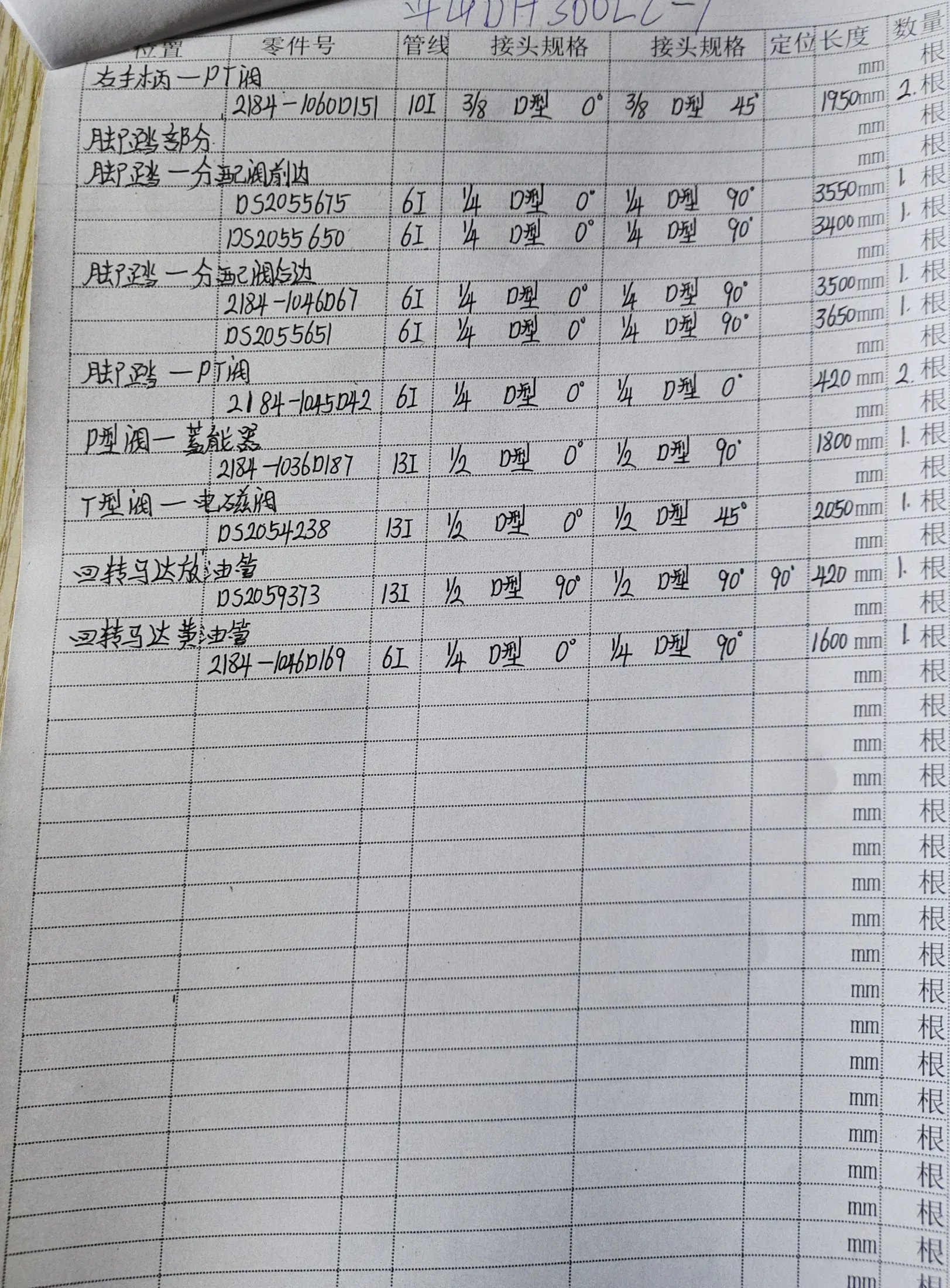

These notebook pages may help identify a hose or compare a recorded length. Confirm the final length, fittings, pressure rating, and routing on the machine before fabrication.
| Part number | Recorded length |
|---|---|
| 284-06D29 | 450 mm |
| 284-1045D61 | 600 mm |
| 2184-060D147 | 2,200 mm |
| 2184-1026D388 | 12,200 mm |
| 2184-1036D25 | 2,620 mm |
| 2184-1036D304 | 510 mm |
| 2184-1045D10 | 2,400 mm |
| 2184-1046D81 | 650 mm |
| 2184-1046D149 | 1,800 mm |
| 2184-1267D10 | 2,050 mm |
| 2187-1046D67 | 3,500 mm |
| 2187-1046D123 | 11,450 mm |
| 21841036D187 | 1,800 mm |
| 218410460157-A | 640 mm |
| D52018490 | 400 mm |
| D52038131 | 1,230 mm |
| D52040298 | 920 mm |
| D52040317 | 500 mm |
| D52040412 | 1,550 mm |
| D52045283 | 1,500 mm |
| D52045460 | 1,500 mm |
| D52055053 | 1,300 mm |
| D52055675 | 3,550 mm |
| D52055676 | 1,600 mm |
| D52094314 | 2,400 mm |
| DS203841 | 1,700 mm |
| DS203842 | 830 mm |
| DS204528Z | 1,470 mm |
| DS2038141 | 11,700 mm |
| DS2040356 | 1,650 mm |
| DS2040833 | 1,170 mm |
| DS2043061 | 790 mm |
| DS2045252 | 600 mm |
| DS2045279 | 790 mm |
| DS2053115 | 1,450 mm |
| DS2053704 | 2,650 mm |
| DS2054240 | 500 mm |
| DS2055651 | 3,650 mm |
| DS2055677 | 1,350 mm |
| DS2062020 | 2,350 mm |
| DS2093028 | 650 mm |
| DS20551159 | 400 mm |
