- Length
- 620 mm
- Specification
- DN38;2SN-24;9MPa
- Left fitting
- Light-series flangeOriginal Chinese: 法兰-轻型
- Right fitting
- 90° light-series flangeOriginal Chinese: 90°法兰-轻型
Hydraulic line repair data
Doosan DX150LC Hose Length & Fitting Data
Coverage details
- Hoses
- 79 records
- Full specifications
- 79 records
- Systems
- 9 systems
- Length range
- 310–2,460 mm
Narrow the selection
Choose a system
Current machine
Find a hose on this machine
Use a system name, the number on the diagram, a part number, connection point, length, hose size, or fitting.

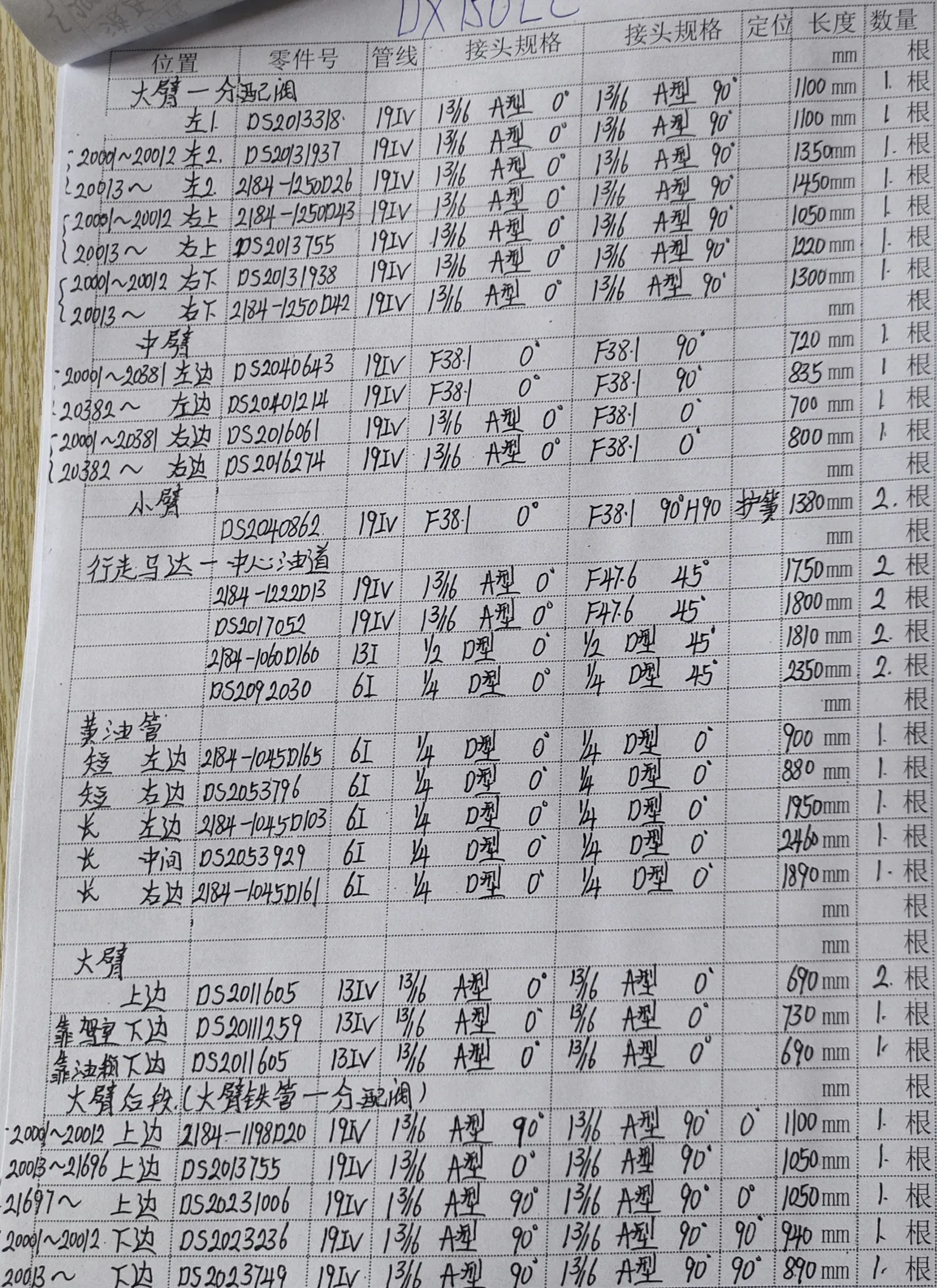

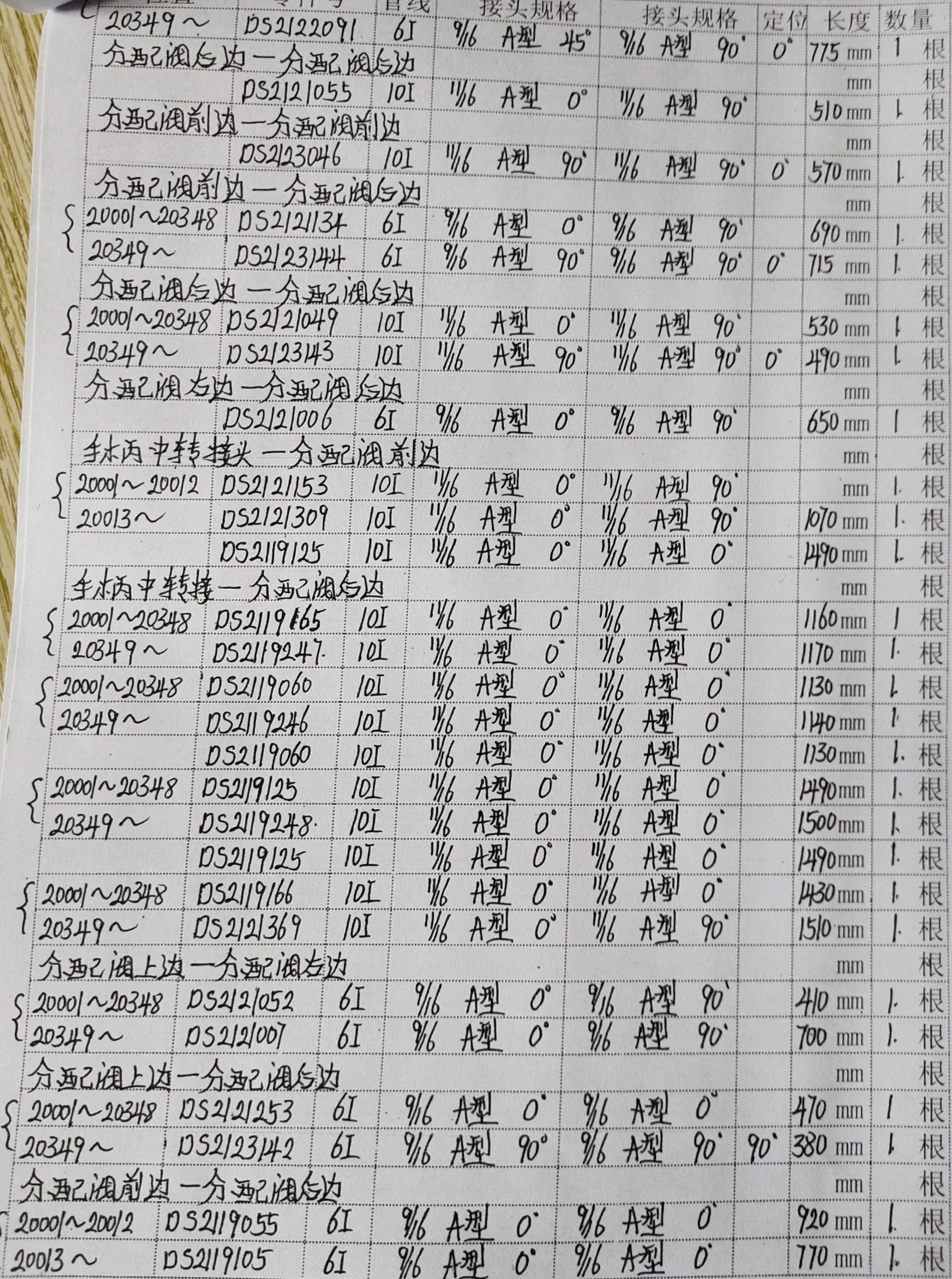

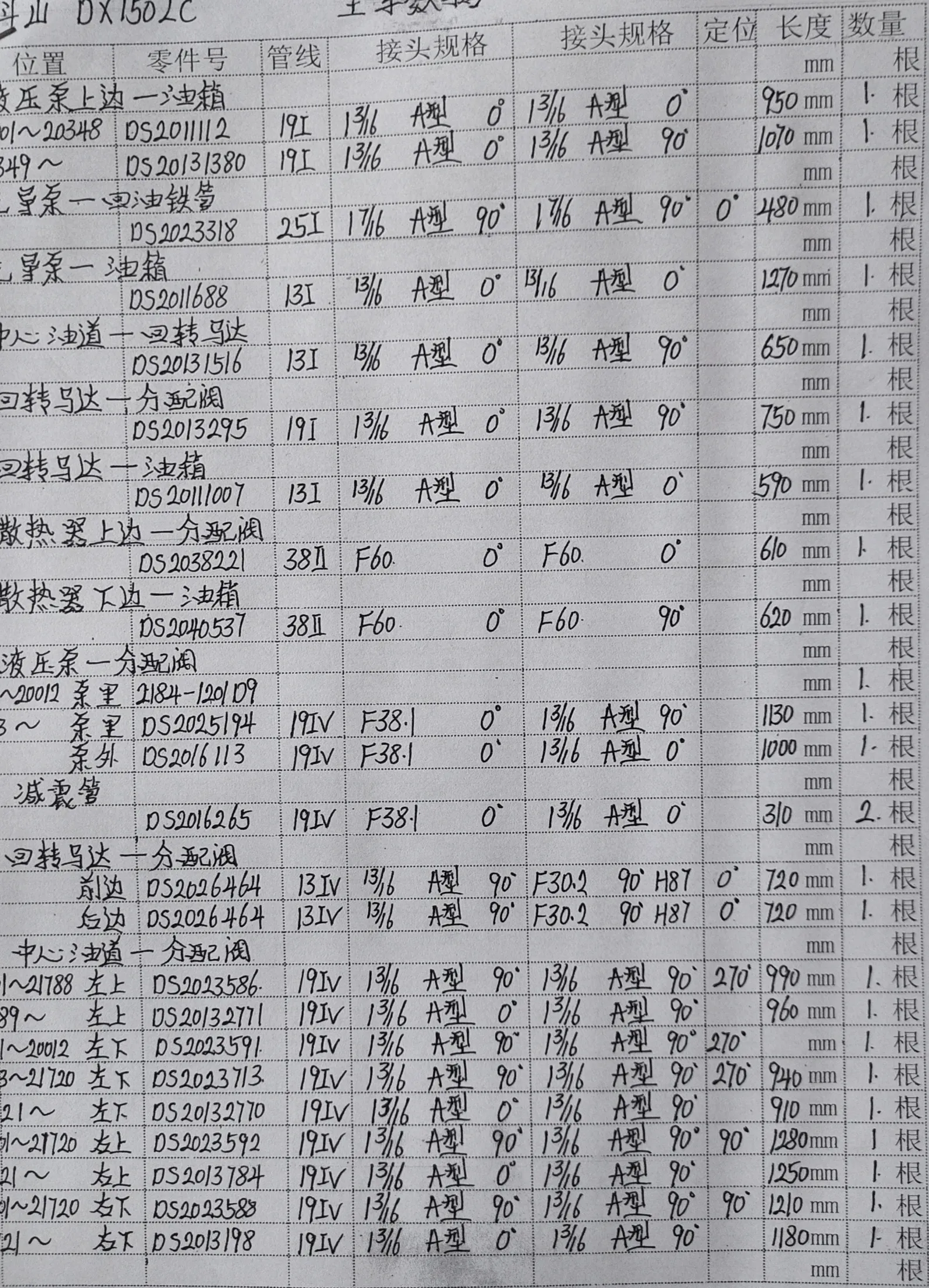

Technician notes
Workshop measurements
These notebook pages may help identify a hose or compare a recorded length. Confirm the final length, fittings, pressure rating, and routing on the machine before fabrication.
| Part number | Recorded length |
|---|---|
| DS2011527 | 400 mm |
| DS2053796 | 880 mm |
| DS2122091 | 775 mm |
| DS20131516 | 650 mm |
| DS2023586 | 990 mm |
| DS2023713 | 940 mm |
| DS2016274 | 800 mm |
| DS2025194 | 1,130 mm |
| DS2026464 | 720 mm |
| DS2013295 | 750 mm |
| DS2119245 | 1,660 mm |
| DS2040862 | 1,380 mm |
Hose repair details
Hose Length and Fitting List
Showing 36 representative records. Return to the finder for a more specific search.
- Length
- 950 mm
- Specification
- DN19;1SN-12;10.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 1,730 mm
- Specification
- DN13;1SN-08;16MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 530 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 1,100 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 715 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 1,250 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 1,050 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 900 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Length
- 470 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 700 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 450 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 1,050 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 1,100 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 700 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- Light-series flangeOriginal Chinese: 法兰-轻型
- Length
- 1,130 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 590 mm
- Specification
- DN13;1SN-08;16MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 1,510 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Diagram Pipe No. 1
2184-1222D13
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 1,750 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45° heavy-series flangeOriginal Chinese: 45°法兰-重型
- Length
- 1,270 mm
- Specification
- DN13;1SN-08;16MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 1,070 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45°美制内螺纹平面密封
- Length
- 650 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Diagram Pipe No. 10
DS2092030
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 2,350 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
- Length
- 1,070 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 410 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 2,440 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 1,490 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 690 mm
- Specification
- DN13;4SP-08;41.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 750 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45°美制内螺纹平面密封
- Length
- 1,870 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 570 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 1,220 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Diagram Pipe No. 2
DS2017052
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 1,800 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45° heavy-series flangeOriginal Chinese: 45°法兰-重型
- Length
- 1,170 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 690 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 2,460 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
No hose in this list matches those words. Clear the box or search another machine.
Based on current published data
Common Repair Questions
Questions appear only when a published record or linked PDF page provides the answer.
Which systems and hoses are currently listed for Doosan DX150LC?
The current published data covers 9 systems and 79 hose records. Systems with more listed records include: Control Valve (25 hoses), Boom Assembly (14 hoses), Hydraulic Pump (11 hoses), Control Lever (10 hoses), Swivel Joint (9 hoses), Grease Lines (4 hoses).
What is the hose length range for Doosan DX150LC?
Based on published records with valid lengths, the range is 310–2,460 mm. Open the individual record to verify its installation position and both end fittings before fabrication.
Which hose specifications are common for Doosan DX150LC?
The most frequent raw specifications in the current published records are: DN6;1SN-04;22.5MPa (29 records), DN19;4SH-12;42MPa (21 records), DN10;1SN-06;18MPa (16 records), DN13;1SN-08;16MPa (4 records), DN13;4SP-08;41.5MPa (4 records). Verify the specification together with length, pressure, and fitting details.
How can I identify the left and right hose fittings for Doosan DX150LC?
Each record keeps the left and right fitting descriptions separate. Current examples: DS2040537: left Light-series flange; right 90° light-series flange; DS2011112: left American female thread, flat-face seal; right American female thread, flat-face seal; DS20111454: left American female thread, flat-face seal; right American female thread, flat-face seal. Open the exact part-number or pipe-number record; do not swap ends based on appearance alone.
Can I locate a Doosan DX150LC hose by diagram pipe number?
Yes. Current examples with a diagram pipe number are: Pipe No. 47 (DS2011112), Pipe No. 2 (2184-1045D165), Pipe No. 11 (DS2016061), Pipe No. 1 (2184-1222D13). Open a record to compare its installation position with the linked manual page.
