- Length
- 770 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Hydraulic line repair data
Doosan DX150LC-9C Hose Length & Fitting Data
Coverage details
- Hoses
- 69 records
- Full specifications
- 69 records
- Systems
- 11 systems
- Length range
- 240–3,150 mm
Narrow the selection
Choose a system
Current machine
Find a hose on this machine
Use a system name, the number on the diagram, a part number, connection point, length, hose size, or fitting.
Technician notes
Workshop measurements

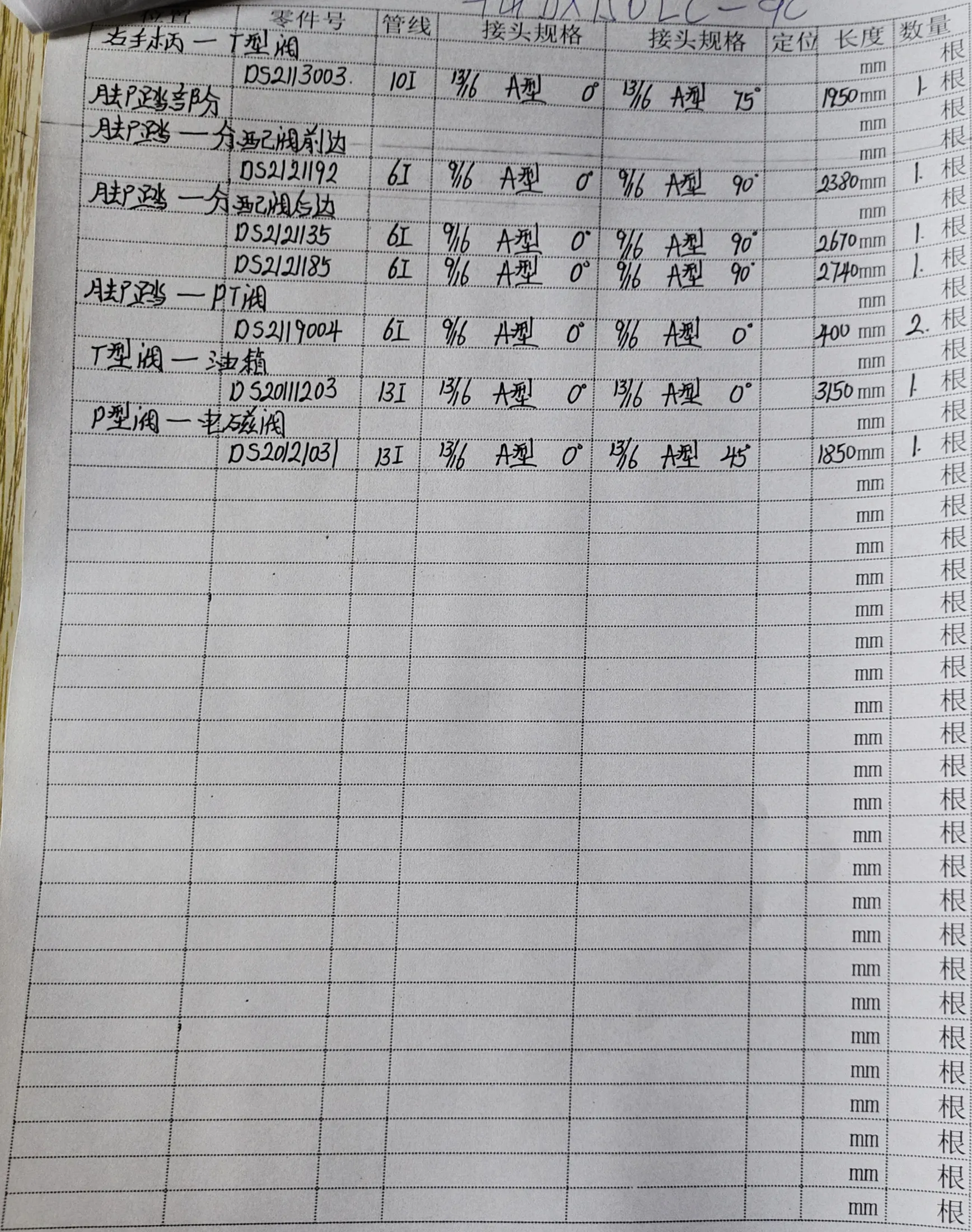

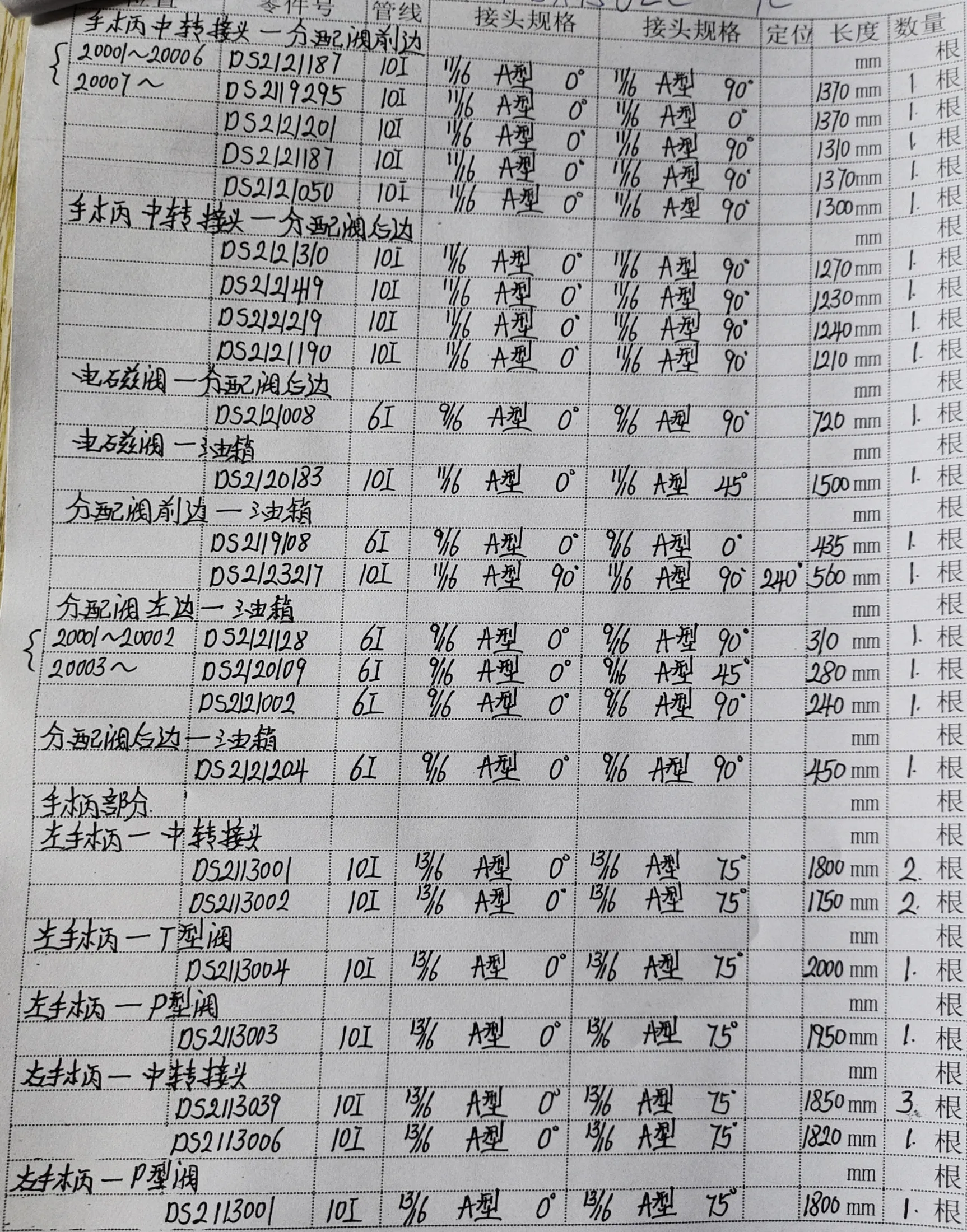

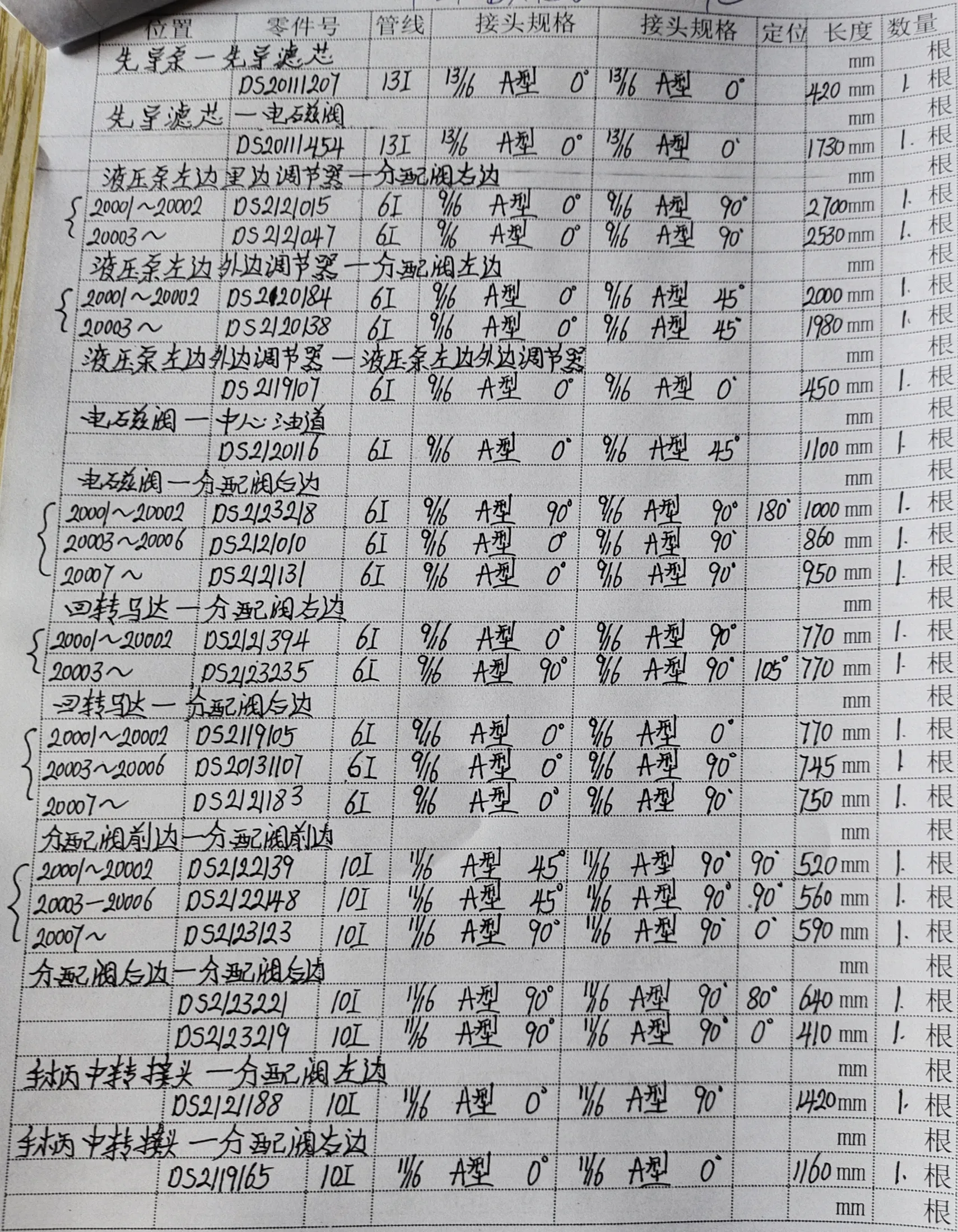

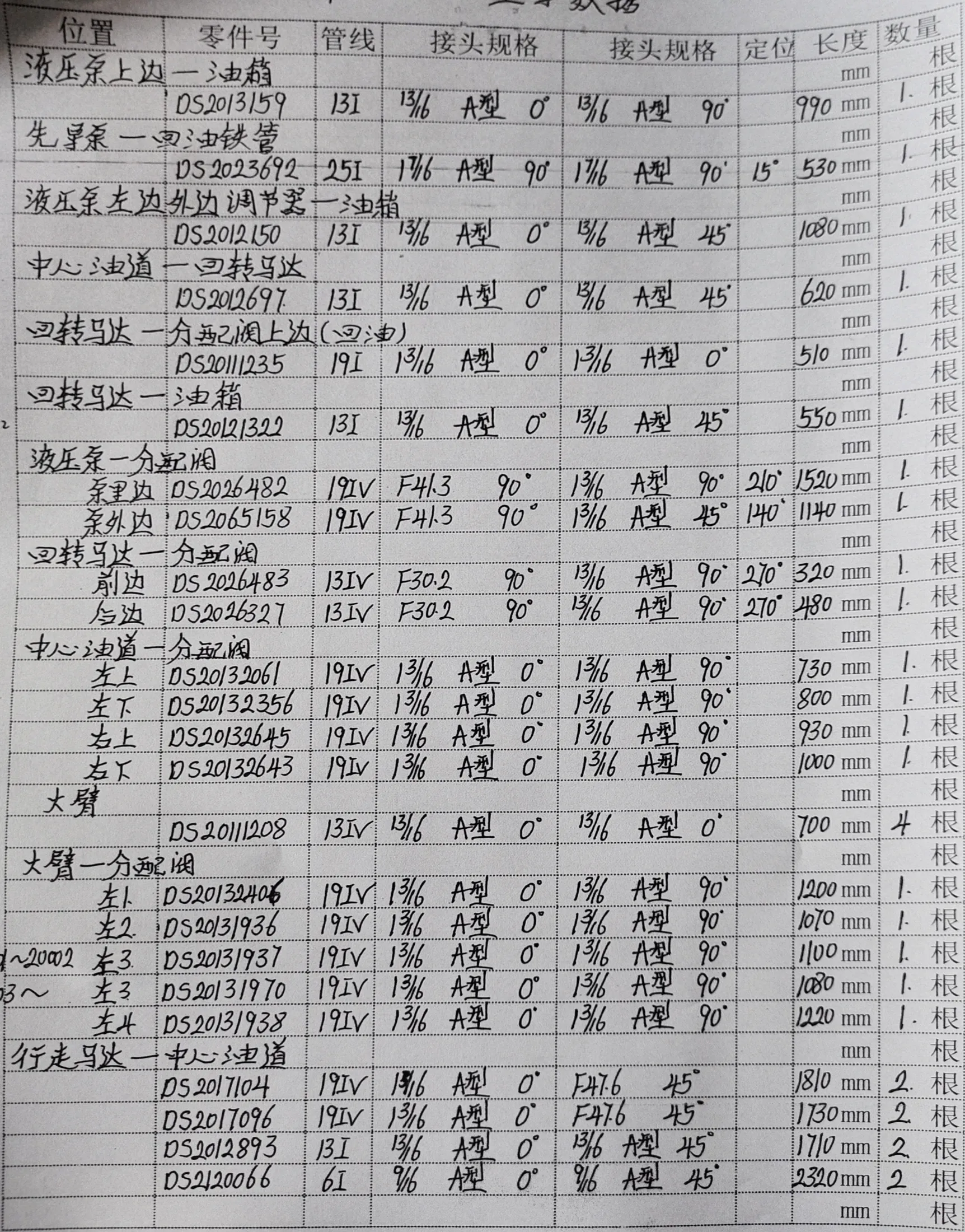

These notebook pages may help identify a hose or compare a recorded length. Confirm the final length, fittings, pressure rating, and routing on the machine before fabrication.
| Part number | Recorded length |
|---|---|
| DS2038420 | 1,600 mm |
| DS20531097 | 1,770 mm |
| DS2065158 | 1,140 mm |
| DS20111207 | 420 mm |
| DS2120066 | 2,320 mm |
| DS2012150 | 1,080 mm |
| DS2113002 | 1,750 mm |
| DS2023692 | 530 mm |
| DS2016252 | 850 mm |
| DS20132643 | 1,000 mm |
Hose repair details
Hose Length and Fitting List
Showing 36 representative records. Return to the finder for a more specific search.
- Length
- 1,820 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 75°美制内螺纹平面密封
- Length
- 400 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 1,300 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 1,210 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 1,070 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 1,500 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45°美制内螺纹平面密封
- Length
- 860 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 1,950 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 75°英制内螺纹60°外锥
- Length
- 1,200 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 1,240 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 590 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 1,950 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 75°英制内螺纹60°外锥
- Length
- 1,310 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 1,160 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 850 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Length
- 990 mm
- Specification
- DN13;1SN-08;16MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 1,980 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45°美制内螺纹平面密封
- Length
- 240 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 1,810 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45° heavy-series flangeOriginal Chinese: 45°法兰-重型
- Length
- 730 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 410 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 1,800 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 70°美制内螺纹平面密封
- Length
- 950 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 1,100 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 930 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Diagram Pipe No. 19
DS2012893
Installation route: Lower swivel joint → travel motorOriginal Chinese: 回转接头下~行走马达
- Length
- 1,710 mm
- Specification
- DN13;1SN-08;16MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45°美制内螺纹平面密封
- Length
- 1,370 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 620 mm
- Specification
- DN13;1SN-08;16MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45°美制内螺纹平面密封
- Length
- 770 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 2,000 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45°美制内螺纹平面密封
- Length
- 1,270 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 430 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 2,380 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 1,800 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 70°美制内螺纹平面密封
- Length
- 1,080 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
No hose in this list matches those words. Clear the box or search another machine.
Based on current published data
Common Repair Questions
Questions appear only when a published record or linked PDF page provides the answer.
Which systems and hoses are currently listed for Doosan DX150LC-9C?
The current published data covers 11 systems and 69 hose records. Systems with more listed records include: Control Lever (17 hoses), Control Valve (15 hoses), Swivel Joint (10 hoses), Boom Assembly (7 hoses), Hydraulic Pump (6 hoses), Pedal (5 hoses).
What is the hose length range for Doosan DX150LC-9C?
Which hose specifications are common for Doosan DX150LC-9C?
The most frequent raw specifications in the current published records are: DN6;1SN-04;22.5MPa (27 records), DN10;1SN-06;18MPa (20 records), DN19;4SH-12;42MPa (13 records), DN13;1SN-08;16MPa (7 records), DN13;4SP-08;41.5MPa (1 records). Verify the specification together with length, pressure, and fitting details.
How can I identify the left and right hose fittings for Doosan DX150LC-9C?
Each record keeps the left and right fitting descriptions separate. Current examples: DS2119105: left American female thread, flat-face seal; right American female thread, flat-face seal; DS2113006: left American female thread, flat-face seal; right 75°美制内螺纹平面密封; DS2119004: left American female thread, flat-face seal; right American female thread, flat-face seal. Open the exact part-number or pipe-number record; do not swap ends based on appearance alone.
Can I locate a Doosan DX150LC-9C hose by diagram pipe number?
Yes. Current examples with a diagram pipe number are: Pipe No. 23 (DS2121010), Pipe No. 19 (DS2013159), Pipe No. 201 (DS2121002), Pipe No. 13 (DS2017104). Open a record to compare its installation position with the linked manual page.
