Hydraulic line repair data
Narrow the selection
Current machine
Use a system name, the number on the diagram, a part number, connection point, length, hose size, or fitting.

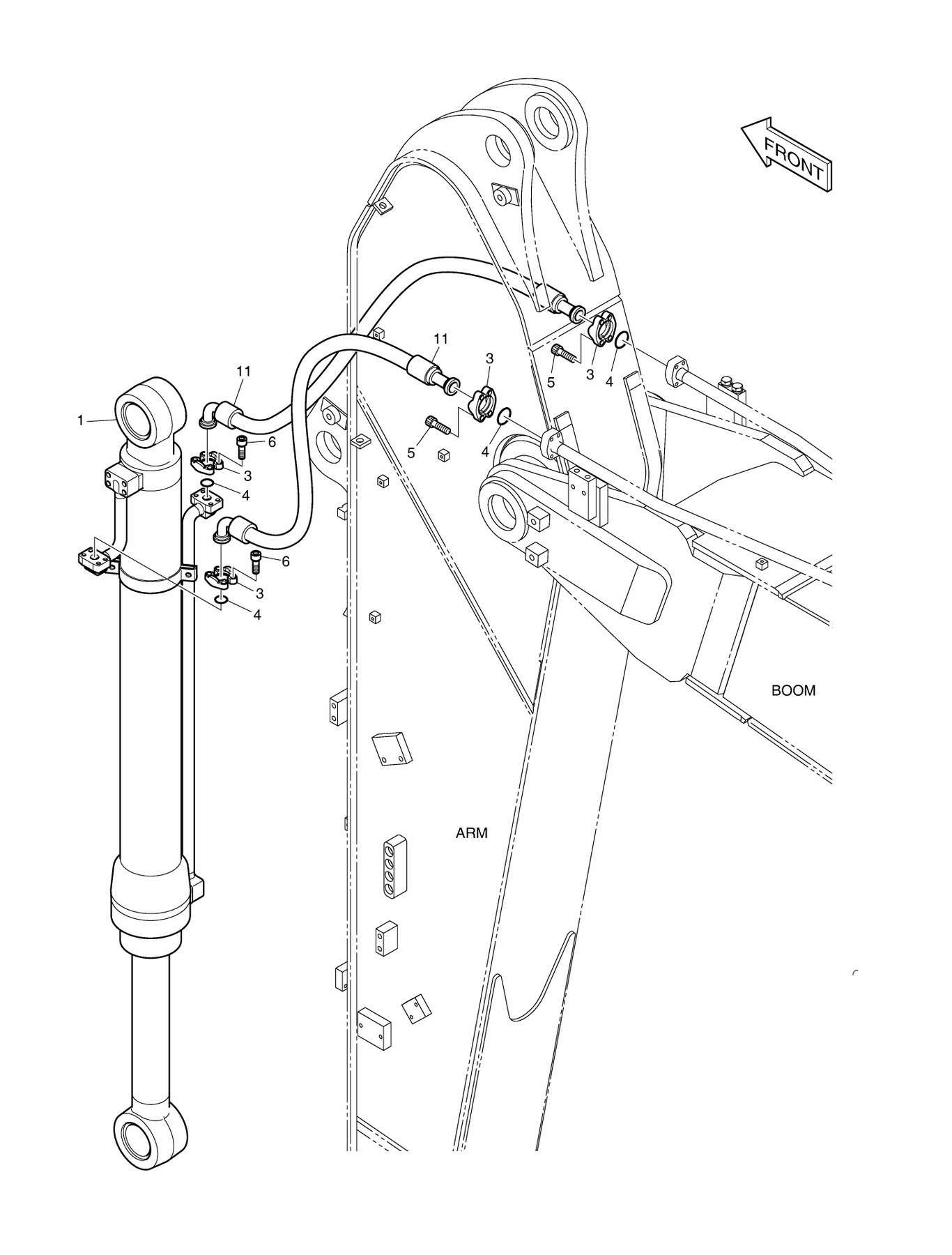

Hose location drawings
Open the drawing, match the hose route, then use the printed part number when ordering or measuring a replacement.
DS2054217DS2092177DS2112002
2184-1100D221DS2038226DS2038366DS2038605DS2040109
DS2040852Hose repair details
Diagram Pipe No. 6

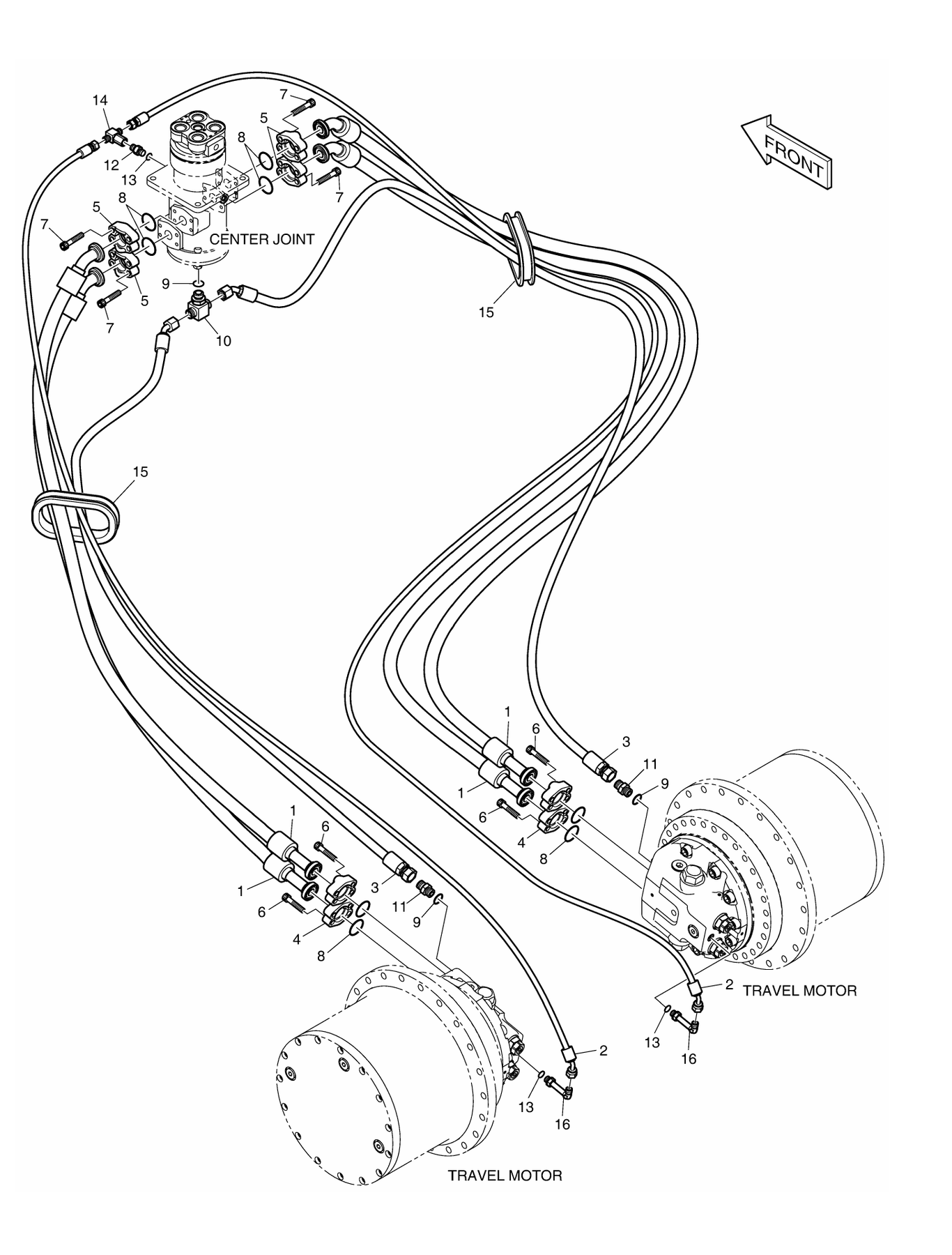

Installation route: 行走系统 · PILOT PIPING (1)- STRAIG H T TRAVEL · Fig. 6770 · 管号 6
Diagram Pipe No. 27
Installation route: 行走系统 · PILOT PIPING (2)- STRAIG H T TRAVEL · Fig. 6780 · 管号 27
Diagram Pipe No. 11
Installation route: 手柄 · PILOT PIPING - TW O W AY (1) · Fig. 6370 · 管号 11
Diagram Pipe No. 8
Installation route: 行走系统 · PILOT PIPING (1)- STRAIG H T TRAVEL · Fig. 6770 · 管号 8
Diagram Pipe No. 10
Installation route: 手柄 · PILOT PIPING - TW O W AY (1) · Fig. 6370 · 管号 10
Diagram Pipe No. 1
Installation route: 黄油管 · LUBRICATION PIPING - ARM 2.4m · Fig. 6510 · 管号 1
Diagram Pipe No. 5

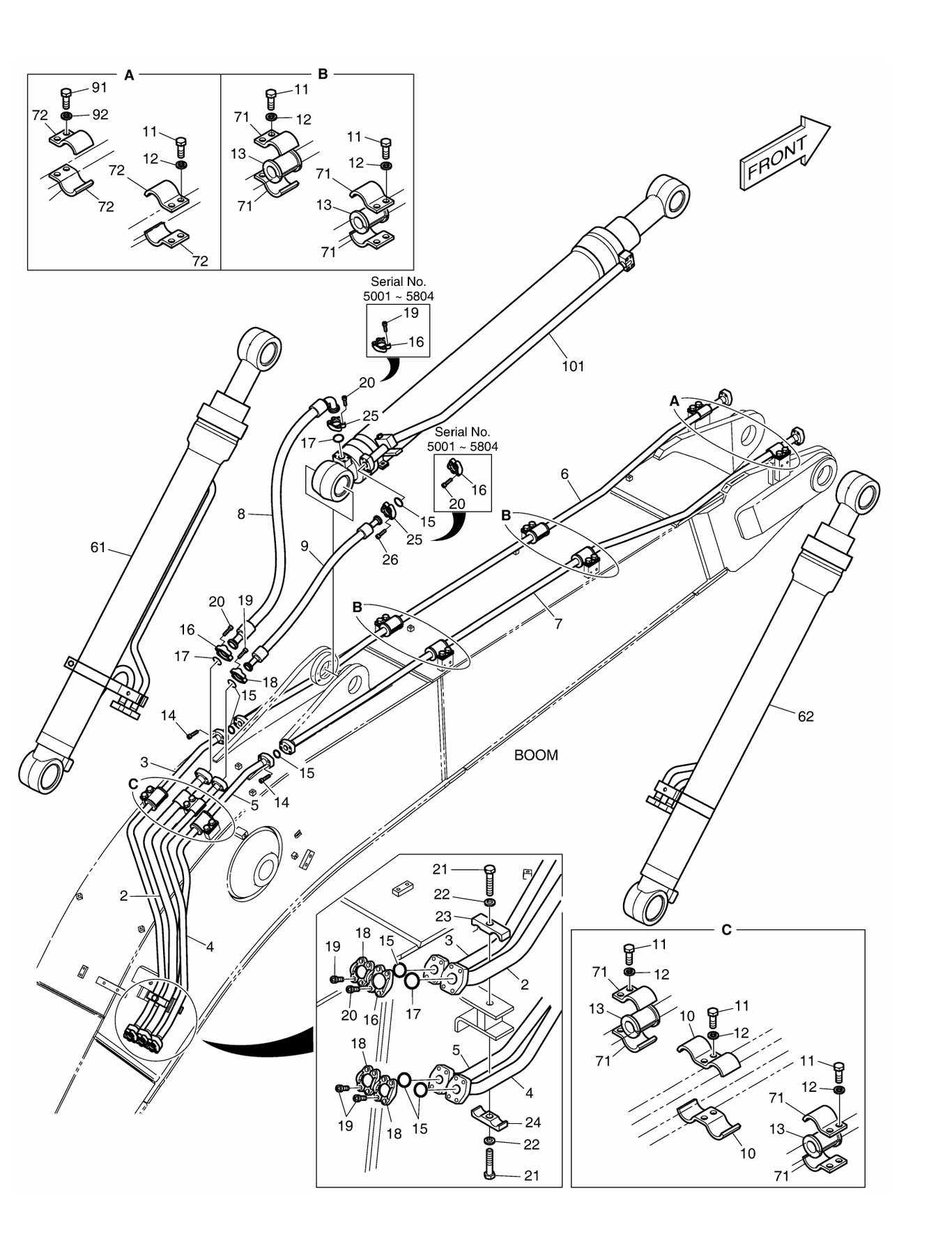

Installation route: 黄油管 · LUBRICATION PIPING - BOOM · Fig. 3140 · 管号 5
Diagram Pipe No. 26
Installation route: 行走系统 · PILOT PIPING (2)- STRAIG H T TRAVEL · Fig. 6780 · 管号 26
Diagram Pipe No. 3
Installation route: 手柄 · PILOT PIPING (1)- STT + PE3C + PERO · Fig. 6840 · 管号 3
No hose in this list matches those words. Clear the box or search another machine.
Workshop guide
For Doosan DX235LCR, identify the exact model and hydraulic system on the machine first. A part number or diagram pipe number is the fastest way to narrow a replacement hose; if neither is visible, compare the installation route and the existing hose.
Check whether a listed dimension is finished assembly length, hose-only length, or cut length. These are not interchangeable. Confirm hose specification and pressure rating, then compare both ends separately: thread, sealing seat, size, angle, and orientation.
Where an installation drawing or manual figure is available, match its callout to the part number and physical route. A hydraulic circuit diagram explains connections but does not show the exact routing of a hose on the machine. Take the old hose or clear end-fitting photographs to the workshop if any dimension is missing.
Based on current published data
Questions appear only when a published record or linked PDF page provides the answer.
The current published data covers 3 systems and 28 hose records. Systems with more listed records include: Control Lever (21 hoses), Grease Lines (2 hoses).
Each record keeps the left and right fitting descriptions separate. Current examples: DS2093192: left British female thread, 60° external cone seat; right 90° elbow, British female thread, 60° external cone seat; DS2093070: left British female thread, 60° external cone seat; right 90° elbow, British female thread, 60° external cone seat; DS2093070: left British female thread, 60° external cone seat; right 90° elbow, British female thread, 60° external cone seat. Open the exact part-number or pipe-number record; do not swap ends based on appearance alone.
Yes. Current examples with a diagram pipe number are: Pipe No. 6 (DS2093192), Pipe No. 20 (DS2093070), Pipe No. 1 (DS2093070), Pipe No. 91 (DS2094353). Open a record to compare its installation position with the linked manual page.
