Hydraulic line repair data
Current machine
Use a system name, the number on the diagram, a part number, connection point, length, hose size, or fitting.
Hose repair details
Hose record
Installation route: Installation route — English review pendingOriginal Chinese: 信号阀—油箱
Hose record
Installation route: Installation route — English review pendingOriginal Chinese: 信号阀—分配阀下边
Hose record
Installation route: Installation route — English review pendingOriginal Chinese: 先导泵—油箱铁管
Hose record
Installation route: Installation route — English review pendingOriginal Chinese: 电磁阀—分配阀下内三通
Hose record
Installation route: Installation route — English review pendingOriginal Chinese: 回转马达—回油铁管
Hose record
Installation route: Installation route — English review pendingOriginal Chinese: 大臂—分配阀（左右）
No hose in this list matches those words. Clear the box or search another machine.
Digitized data and source sheets

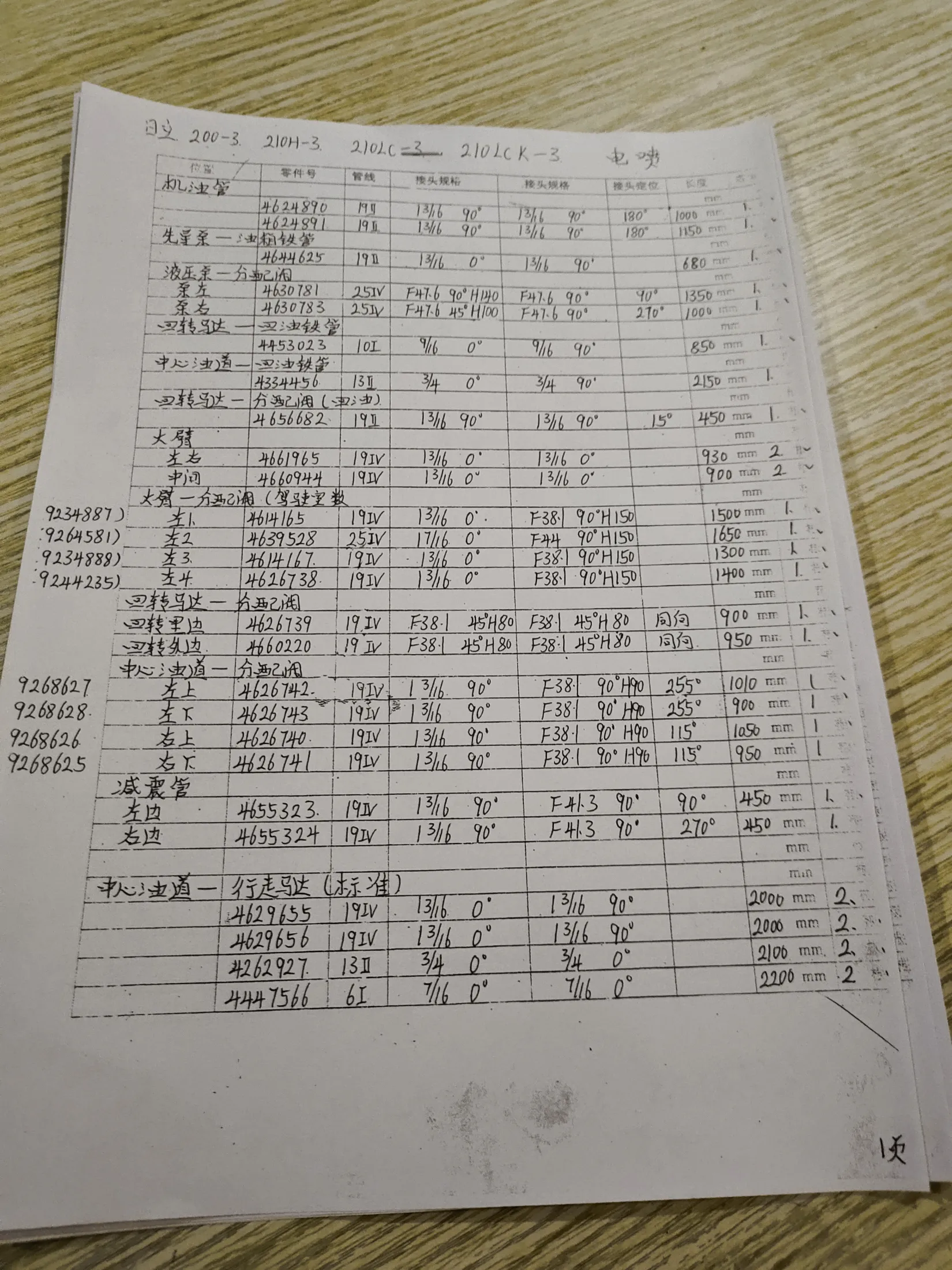

The table is a searchable transcription of the Hitachi ZX210H-3 workshop notes. The complete original handwritten sheets are shown below without cropping.
| Part number | Recorded length |
|---|---|
| 500MM1AF | 1,350 mm |
| 1150MMAR | 650 mm |
| 4427314 | 1,150 mm |
| 4453023 | 850 mm |
| 4630933 | 1,150 mm |
| 4630946 | 850 mm |
| 4644625 | 680 mm |
| 4661985 | 930 mm |
Complete pages are shown in their original proportions without cropping.
Workshop guide
For Hitachi ZX210H-3, identify the exact model and hydraulic system on the machine first. A part number or diagram pipe number is the fastest way to narrow a replacement hose; if neither is visible, compare the installation route and the existing hose.
Check whether a listed dimension is finished assembly length, hose-only length, or cut length. These are not interchangeable. Confirm hose specification and pressure rating, then compare both ends separately: thread, sealing seat, size, angle, and orientation.
Where an installation drawing or manual figure is available, match its callout to the part number and physical route. A hydraulic circuit diagram explains connections but does not show the exact routing of a hose on the machine. Take the old hose or clear end-fitting photographs to the workshop if any dimension is missing.
Based on current published data
Questions appear only when a published record or linked PDF page provides the answer.
Each record keeps the left and right fitting descriptions separate. Current examples: 4427314: left Fitting type — English review pending; right Fitting type — English review pending; 4630933: left Fitting type — English review pending; right Fitting type — English review pending; 4644625: left 1 3/16″ 0°; right 3/4″ 90°. Open the exact part-number or pipe-number record; do not swap ends based on appearance alone.
