Hose repair details
Hose record
Installation route: Installation route — English review pendingOriginal Chinese: 分配阀左内—油箱
Hose record
Installation route: Installation route — English review pendingOriginal Chinese: 分配阀中间—分配阀中间三通
Hose record
Installation route: Installation route — English review pendingOriginal Chinese: 先导泵—回油铁管
Hose record
Installation route: Installation route — English review pendingOriginal Chinese: 先导滤芯—分配阀左内
Hose record
Installation route: Installation route — English review pendingOriginal Chinese: 分配阀右边—油箱
No hose in this list matches those words. Clear the box or search another machine.
Digitized data and source sheets

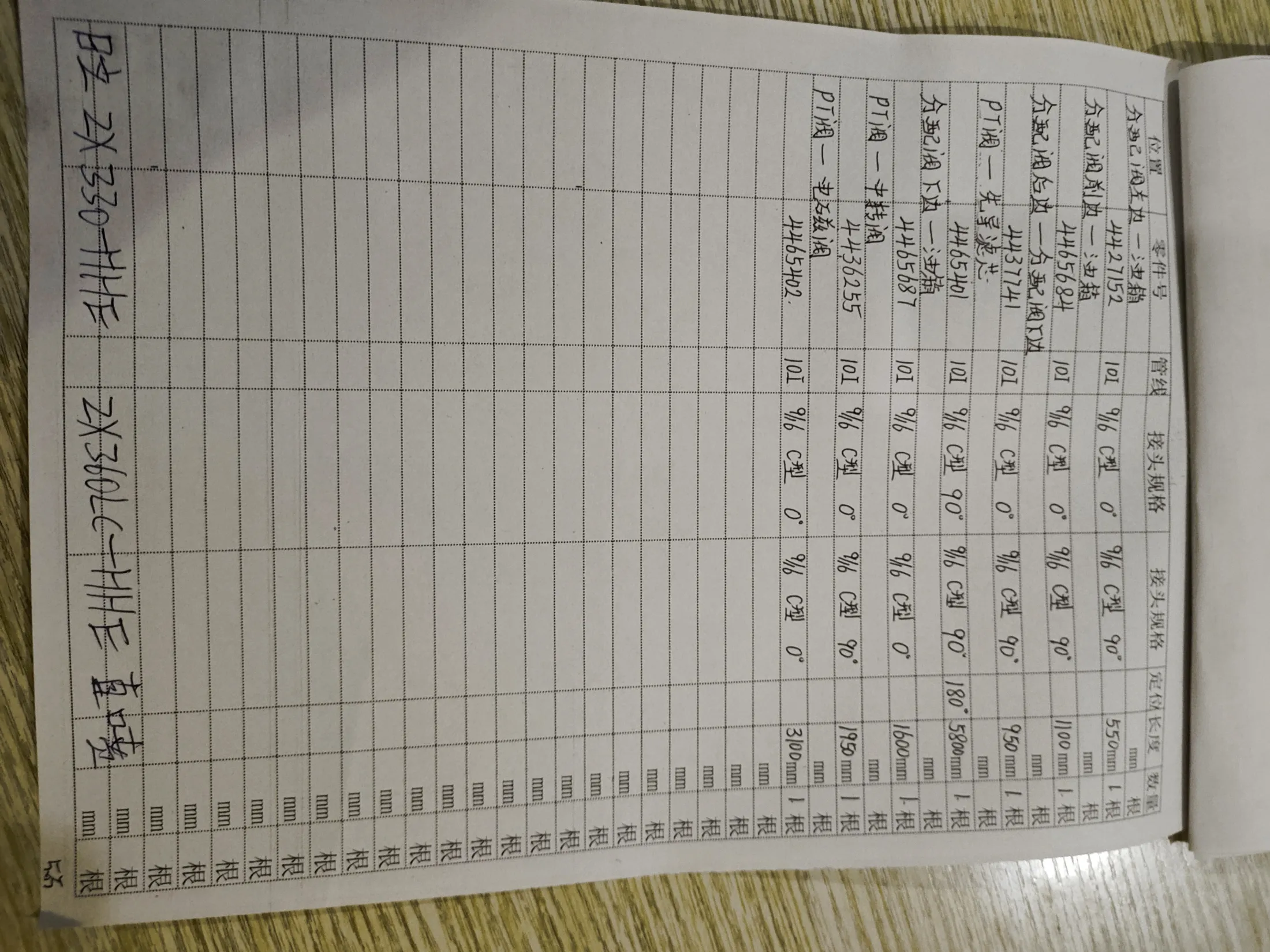

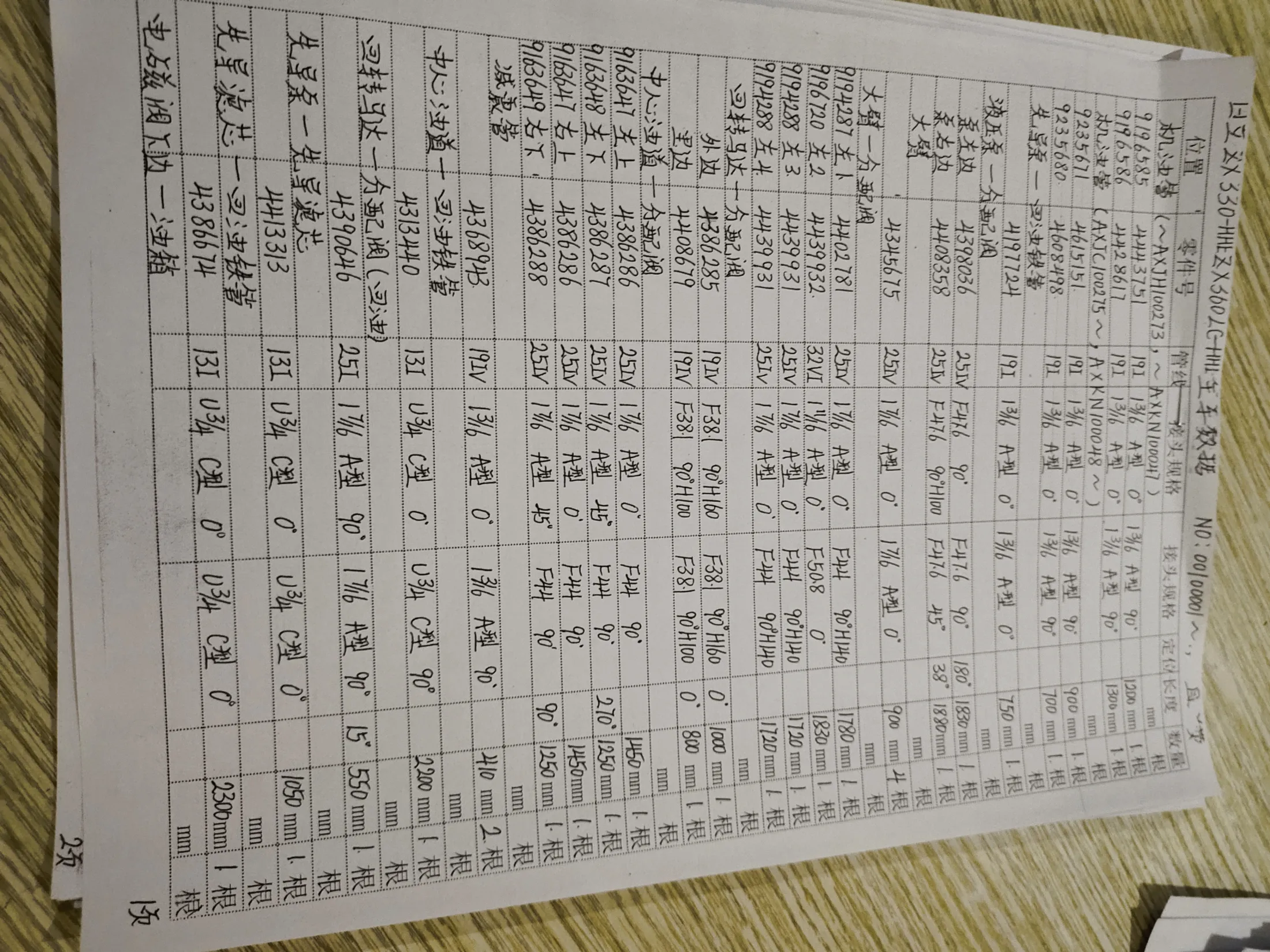

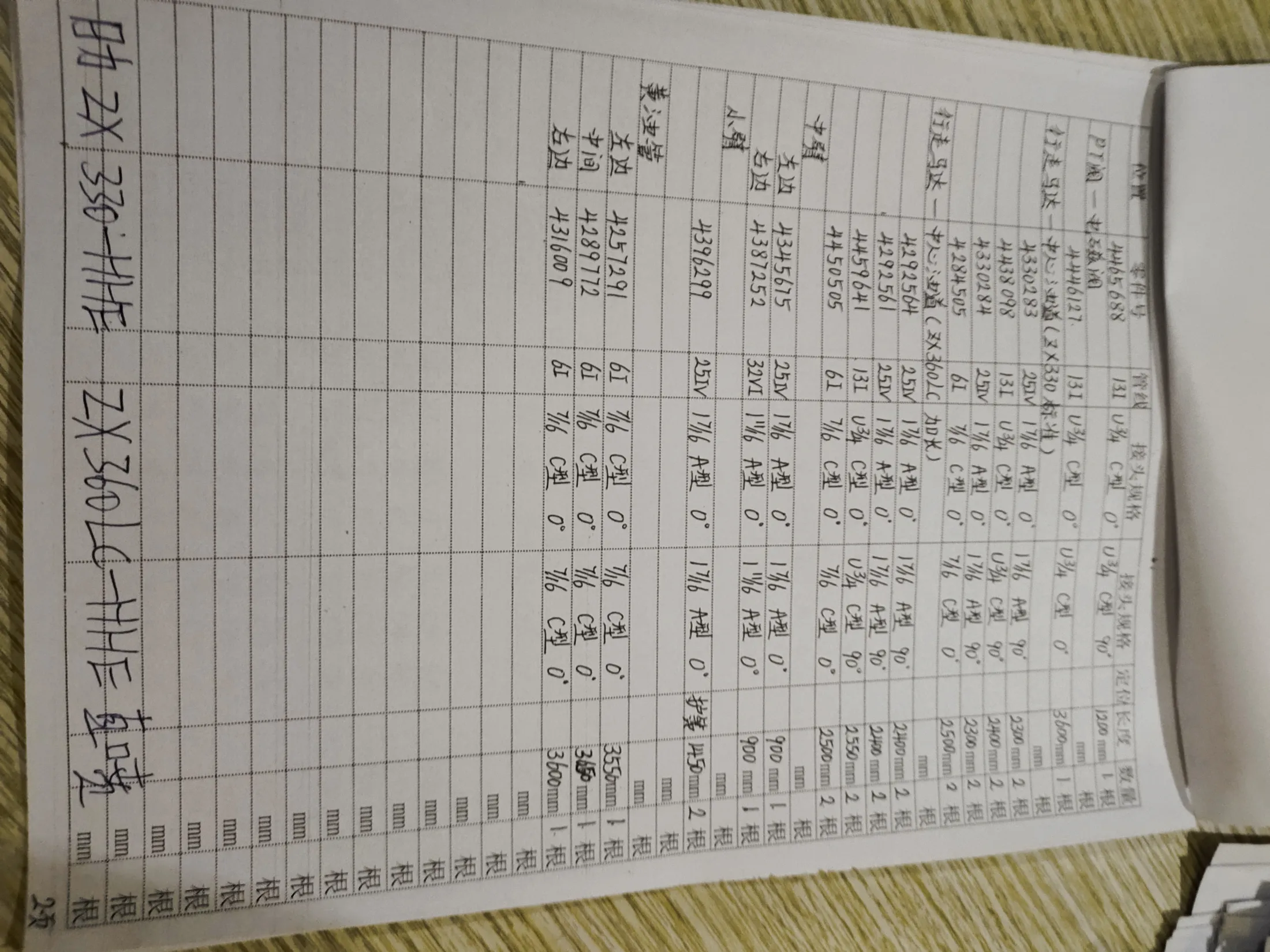

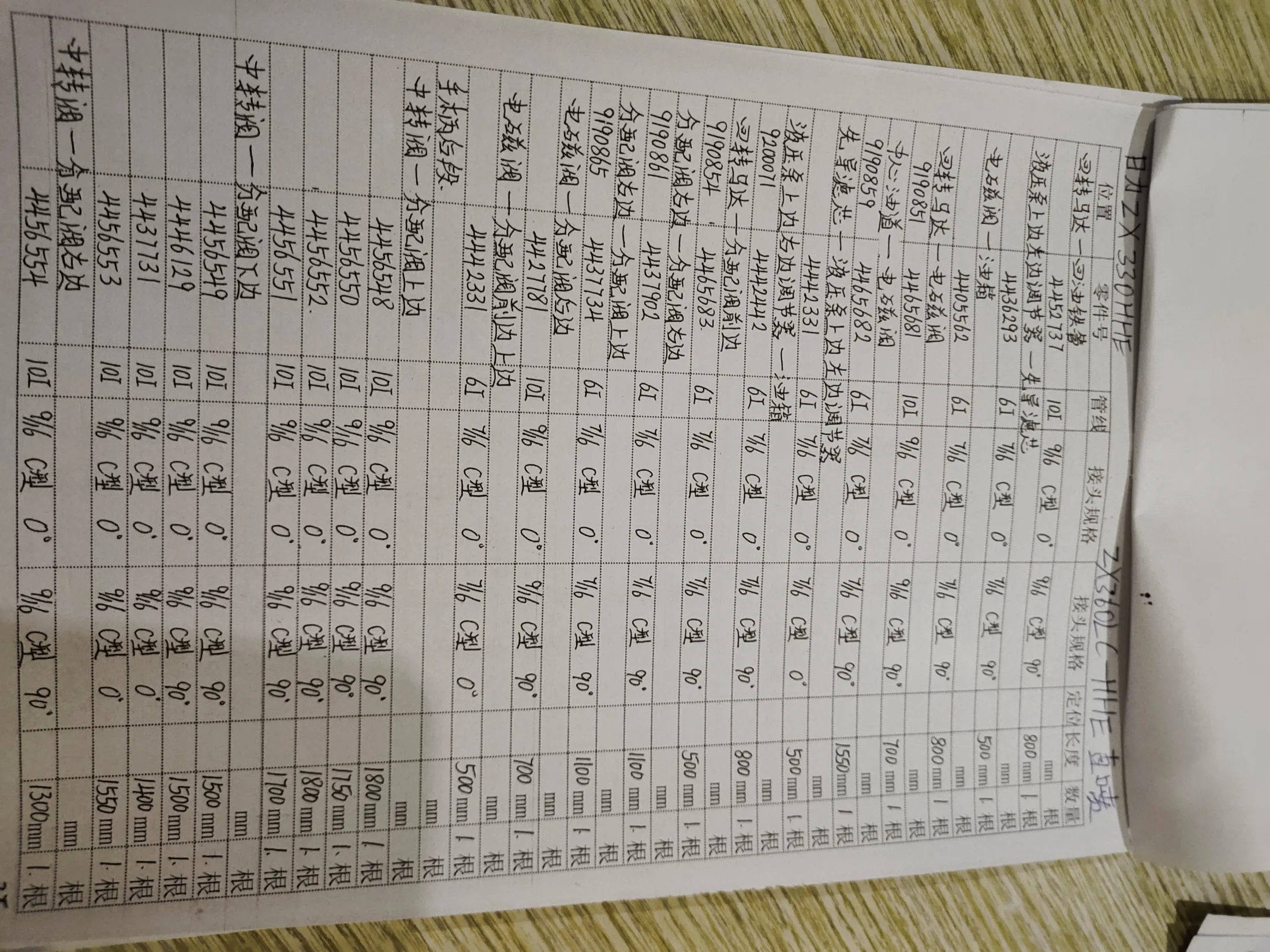

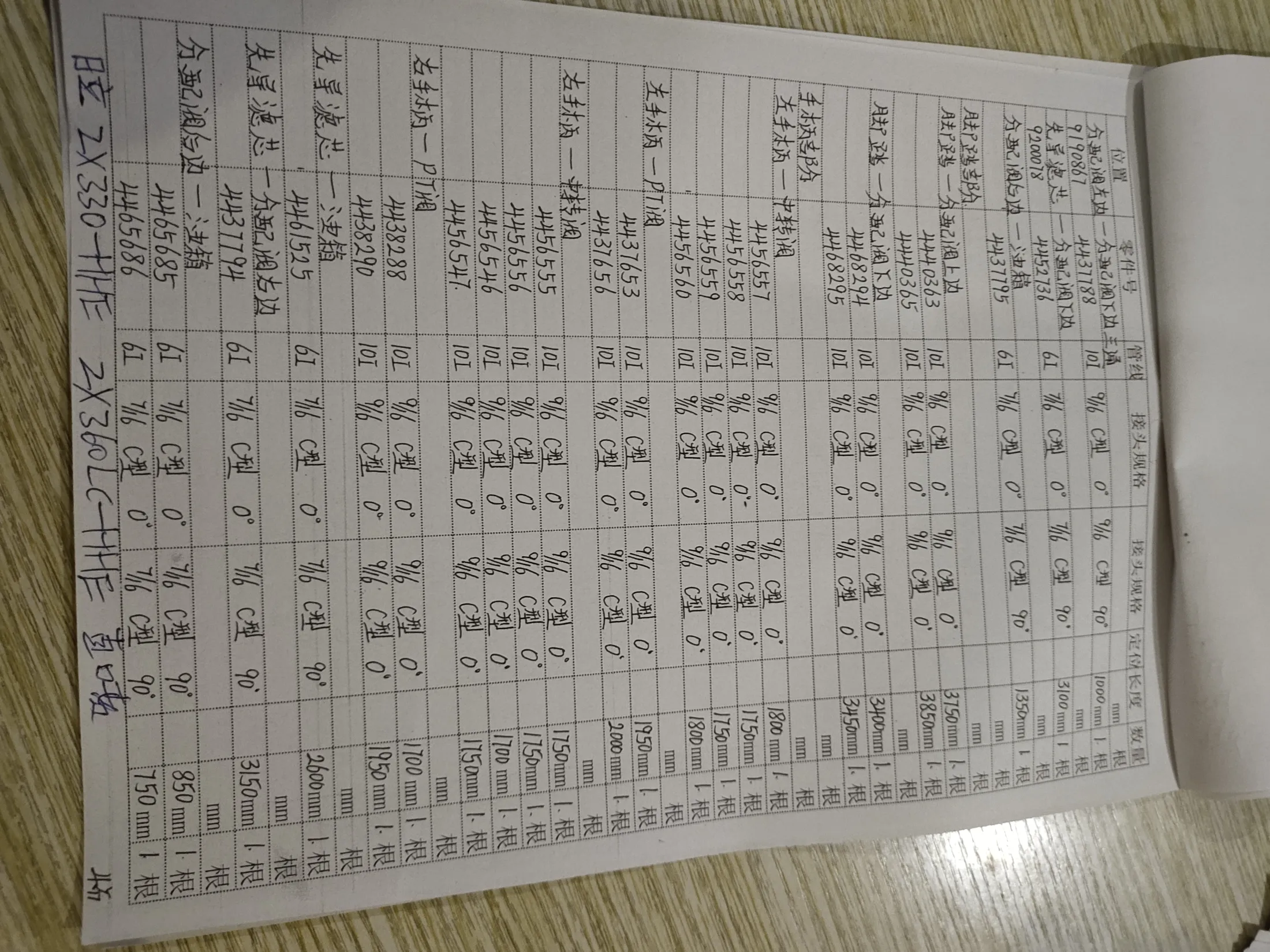

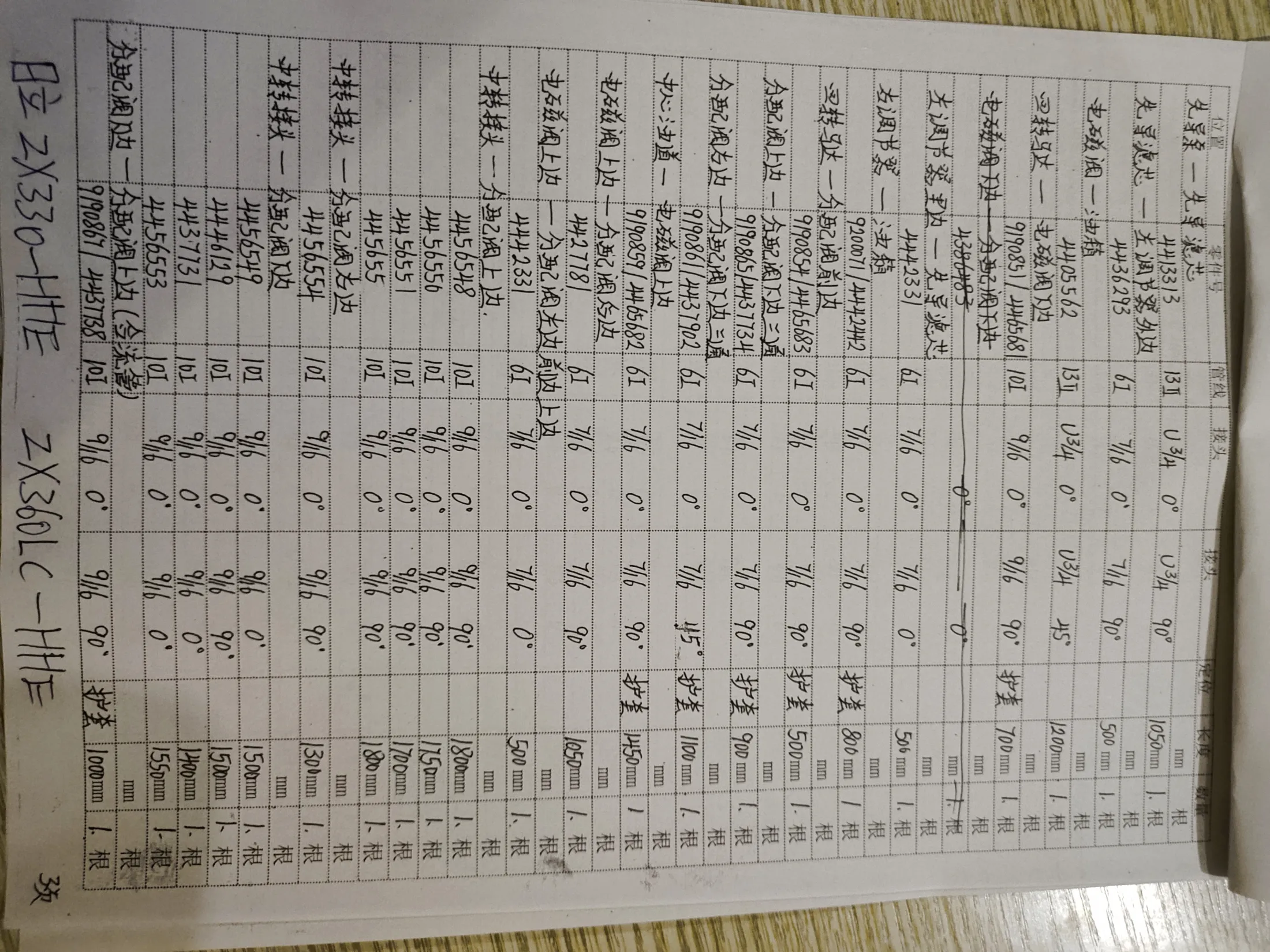

The table is a searchable transcription of the Hitachi ZX360LC-HHE workshop notes. The complete original handwritten sheets are shown below without cropping.
| Part number | Recorded length |
|---|---|
| 1750MM1HE | 3,850 mm |
| 4368943 | 710 mm |
| 4427152 | 550 mm |
| 4437794 | 3,150 mm |
| 4456885 | 850 mm |
| T6CL90 | 1,350 mm |
Complete pages are shown in their original proportions without cropping.
Workshop guide
For Hitachi ZX360LC-HHE, identify the exact model and hydraulic system on the machine first. A part number or diagram pipe number is the fastest way to narrow a replacement hose; if neither is visible, compare the installation route and the existing hose.
Check whether a listed dimension is finished assembly length, hose-only length, or cut length. These are not interchangeable. Confirm hose specification and pressure rating, then compare both ends separately: thread, sealing seat, size, angle, and orientation.
Where an installation drawing or manual figure is available, match its callout to the part number and physical route. A hydraulic circuit diagram explains connections but does not show the exact routing of a hose on the machine. Take the old hose or clear end-fitting photographs to the workshop if any dimension is missing.
Based on current published data
Questions appear only when a published record or linked PDF page provides the answer.
The current published data covers 4 systems and 5 hose records. Systems with more listed records include: Control Valve (2 hoses).
Each record keeps the left and right fitting descriptions separate. Current examples: 4456885: left Fitting type — English review pending; right Fitting type — English review pending; 4437788: left Fitting type — English review pending; right Fitting type — English review pending; 4368943: left Fitting type — English review pending; right Fitting type — English review pending. Open the exact part-number or pipe-number record; do not swap ends based on appearance alone.
