Hose record
31QA-11180
Installation route: Installation route — English review pendingOriginal Chinese: 液压泵—分配阀（系外边）
- Length
- 1,880 mm
- Specification
- 25IV
- Left fitting
- F47.6 0°
- Right fitting
- F44 90°
Hydraulic line repair data
Hyundai R385LC-9 Hose Length & Fitting Data
Coverage details
- Hoses
- 8 records
- Full specifications
- 8 records
- Systems
- 4 systems
- Length range
- 450–3,500 mm
Narrow the selection
Choose a system
Current machine
Find a hose on this machine
Use a system name, the number on the diagram, a part number, connection point, length, hose size, or fitting.
Hose repair details
Hose Length and Fitting List
Hose record
X400-042070
Installation route: Installation route — English review pendingOriginal Chinese: 回转马达—电磁阀
- Length
- 3,500 mm
- Specification
- 6I
- Left fitting
- Fitting type — English review pendingOriginal Chinese: 9/16英寸 A型 直通
- Right fitting
- Fitting type — English review pendingOriginal Chinese: 9/16英寸 A型 直通
Hose record
X420-062009
Installation route: Installation route — English review pendingOriginal Chinese: 分配阀上边—分配阀前边
- Length
- 450 mm
- Specification
- 10I
- Left fitting
- Fitting type — English review pendingOriginal Chinese: 11/16 A型 0°
- Right fitting
- Fitting type — English review pendingOriginal Chinese: 11/16 A型 90°
Hose record
31QA-11170
Installation route: Installation route — English review pendingOriginal Chinese: 液压泵—分配阀（泵里边）
- Length
- 1,560 mm
- Specification
- 25IV
- Left fitting
- F47.6 0°Original Chinese: F47.6 0°（手写接头规格）
- Right fitting
- F44 90°Original Chinese: F44 90°（手写接头规格）
Hose record
XH0-062041
Installation route: Installation route — English review pendingOriginal Chinese: 左手柄—中转阀
- Length
- 2,050 mm
- Specification
- 10I
- Left fitting
- Fitting type — English review pendingOriginal Chinese: 11/16英寸 A型 0°
- Right fitting
- Fitting type — English review pendingOriginal Chinese: 11/16英寸 A型 45°
Hose record
P930-122013
Installation route: Installation route — English review pendingOriginal Chinese: 先导泵—回油铁管
- Length
- 650 mm
- Specification
- 19I
- Left fitting
- Fitting type — English review pendingOriginal Chinese: 13/16英寸 A型 直通
- Right fitting
- Fitting type — English review pendingOriginal Chinese: 13/16英寸 A型 90°弯头
Hose record
X420-062011
Installation route: Installation route — English review pendingOriginal Chinese: 分配阀上边—分配阀前边
- Length
- 550 mm
- Specification
- 10I
- Left fitting
- Fitting type — English review pendingOriginal Chinese: 11/16 A型 0°
- Right fitting
- Fitting type — English review pendingOriginal Chinese: 11/16 A型 90°
Hose record
X420-042015
Installation route: Installation route — English review pendingOriginal Chinese: 分配阀右内—回油铁管
- Length
- 750 mm
- Specification
- 6I
- Left fitting
- Fitting type — English review pendingOriginal Chinese: 9/16″ A型 0°（手写接头规格）
- Right fitting
- Fitting type — English review pendingOriginal Chinese: 9/16″ A型 90°（手写接头规格）
No hose in this list matches those words. Clear the box or search another machine.
Digitized data and source sheets
Hyundai R385LC-9 Hose Data and Original Handwritten Sheets
The table is a searchable transcription of the Hyundai R385LC-9 workshop notes. The complete original handwritten sheets are shown below without cropping.
Digitized measurements from these sheets
| Part number | Recorded length |
|---|---|
| 31QA-11180 | 1,880 mm |
| P930-122013 | 650 mm |
| X400-042070 | 3,500 mm |
| X420-042015 | 750 mm |
| XH0-062041 | 2,050 mm |
Original handwritten sheets

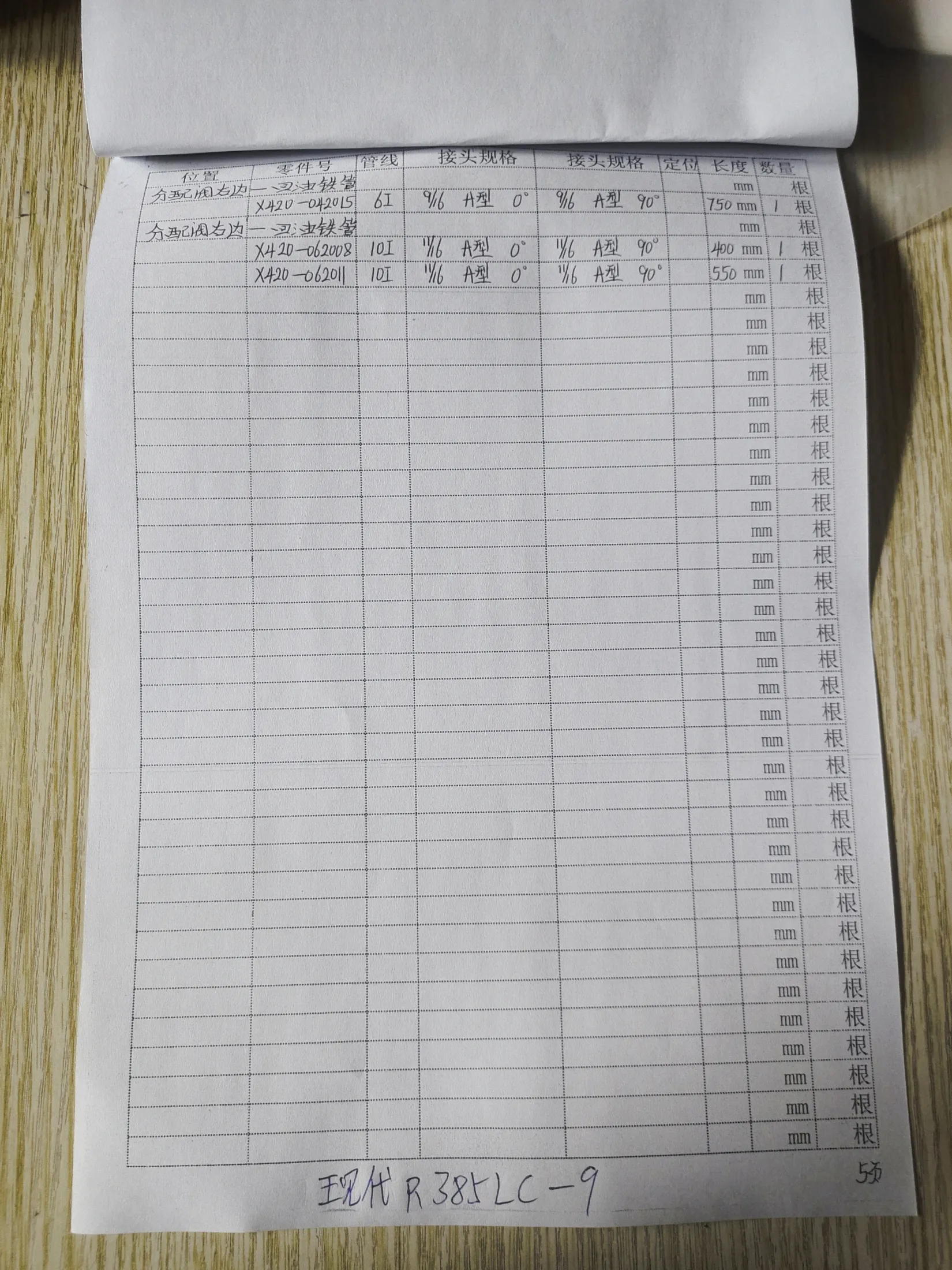

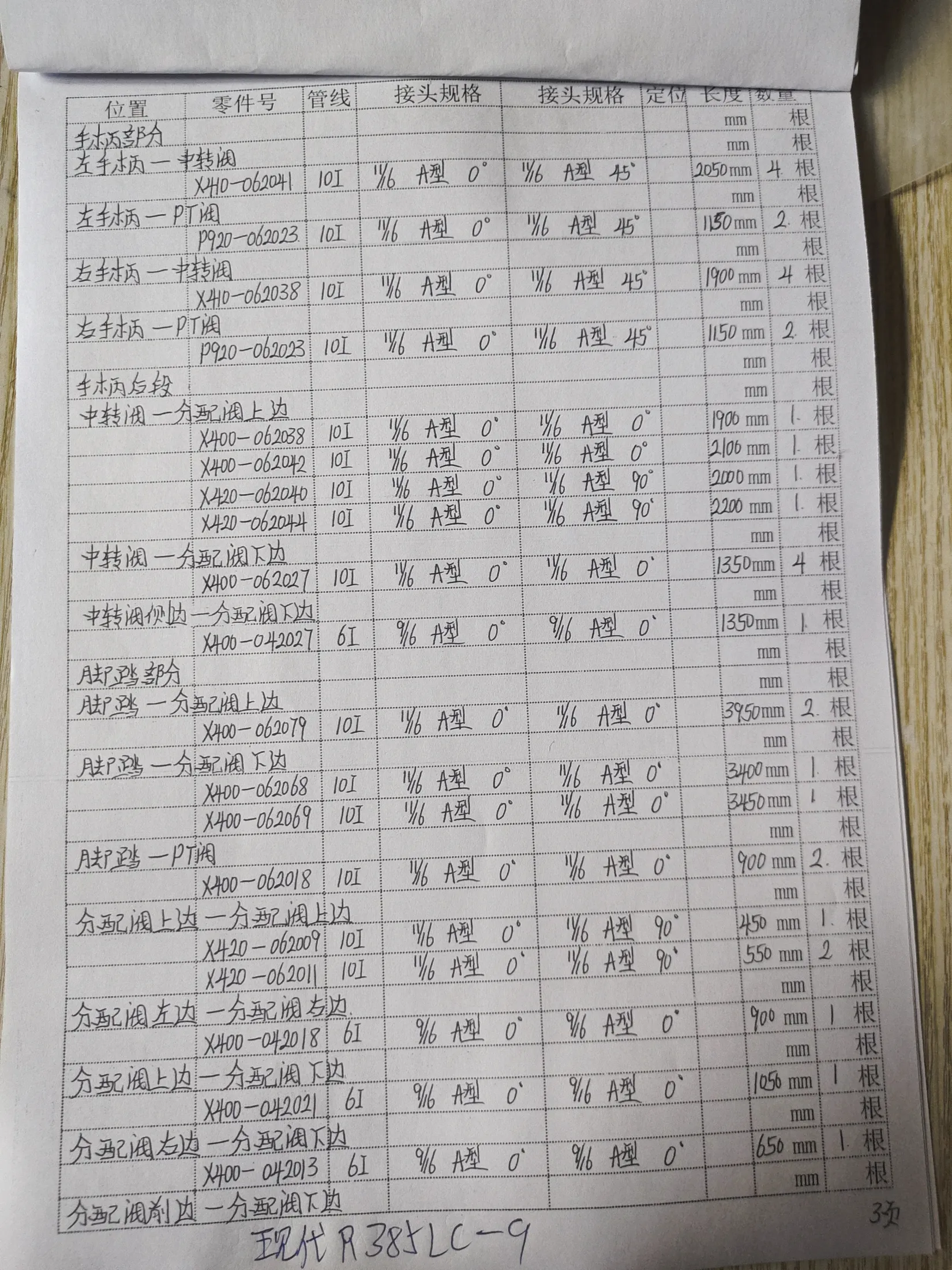

Complete pages are shown in their original proportions without cropping.
Workshop guide
Finding the correct hydraulic hose for Hyundai R385LC-9
Start with the machine and route
For Hyundai R385LC-9, identify the exact model and hydraulic system on the machine first. A part number or diagram pipe number is the fastest way to narrow a replacement hose; if neither is visible, compare the installation route and the existing hose.
Read the dimensions before cutting
Check whether a listed dimension is finished assembly length, hose-only length, or cut length. These are not interchangeable. Confirm hose specification and pressure rating, then compare both ends separately: thread, sealing seat, size, angle, and orientation.
Records to compare
- 31QA-111801,880 mm · 25IV · Installation route — English review pending
- X400-0420703,500 mm · 6I · Installation route — English review pending
- X420-062009450 mm · 10I · Installation route — English review pending
Use the drawing as a location check
Where an installation drawing or manual figure is available, match its callout to the part number and physical route. A hydraulic circuit diagram explains connections but does not show the exact routing of a hose on the machine. Take the old hose or clear end-fitting photographs to the workshop if any dimension is missing.
Based on current published data
Common Repair Questions
Questions appear only when a published record or linked PDF page provides the answer.
Which systems and hoses are currently listed for Hyundai R385LC-9?
The current published data covers 4 systems and 8 hose records. Systems with more listed records include: Hydraulic System (4 hoses).
What is the hose length range for Hyundai R385LC-9?
Based on published records with valid lengths, the range is 450–3,500 mm. Open the individual record to verify its installation position and both end fittings before fabrication.
Which hose specifications are common for Hyundai R385LC-9?
The most frequent raw specifications in the current published records are: 10I (3 records), 25IV (2 records), 6I (2 records), 19I (1 records). Verify the specification together with length, pressure, and fitting details.
How can I identify the left and right hose fittings for Hyundai R385LC-9?
Each record keeps the left and right fitting descriptions separate. Current examples: 31QA-11180: left F47.6 0°; right F44 90°; X400-042070: left Fitting type — English review pending; right Fitting type — English review pending; X420-062009: left Fitting type — English review pending; right Fitting type — English review pending. Open the exact part-number or pipe-number record; do not swap ends based on appearance alone.
Optional cross-check
Ask an AI search tool to check this repair data
The question is already written for this machine or hose. Use a tool with web search enabled; treat its answer as a starting point and verify on the machine.
See the exact question being sent
I am checking hydraulic hose repair information for "Hyundai R385LC-9 Hose Length & Fitting Data". Use web search and cite a source for every factual point. Compare this HoseSeek page with manufacturer manuals and reliable parts documentation: https://www.hoseseek.com/machines/hyundai/r385lc-9--523338354c432d39/ Verify, where applicable: 1. Exact machine model and any serial-number range. 2. Hydraulic system and installation route. 3. Hose part number and diagram pipe number. 4. Finished length, hose specification, and pressure rating. 5. Both end fittings, including thread, sealing seat, size, and angle. 6. Installation-diagram position and routing. State explicitly what you could not verify. Do not infer a missing dimension or fitting. End with a short on-machine checklist for a hose repair technician.
