SANY SY365H Hose Length & Fitting Data

Coverage details
Hoses
1 records
Full specifications
1 records
Systems
1 systems
Length range
450–450 mm

Current machine

Find a hose on this machine

Use a system name, the number on the diagram, a part number, connection point, length, hose size, or fitting.

Search another machine

Hose repair details

Hose Length and Fitting List

Hose record

B230103002718

Installation route: 液压泵上边外边调节器—先导滤芯

Length
450 mm
Specification
6I
Left fitting
M14×1.5 H型 0°（手写接头规格）
Right fitting
M14×1.5 H型 0°（手写接头规格）
View full repair specifications

Digitized data and source sheets

SANY SY365H Hose Data and Original Handwritten Sheets

The table is a searchable transcription of the SANY SY365H workshop notes. The complete original handwritten sheets are shown below without cropping.

Digitized measurements from these sheets

Workshop measurements
Part numberRecorded length
A833305000500 mm
A8313035000350 mm
A83131305000450 mm
A831413500061,500 mm
A831413085000850 mm
A832303500001350 mm
A832713060000600 mm
A833305000081500 mm
B230030021600 mm
B2300300073150 mm
B2300300081600 mm
B2300300085900 mm
B23003002872,550 mm
B2300300345550 mm
B23003005034,300 mm
B23003005623,000 mm
B230030000141,600 mm
B230030000761,300 mm
B2300300016212,200 mm
B230030006391,000 mm
B23003000811600 mm
B23003000815500 mm
B23003000828I450 mm
B23003000855900 mm
B23003000979750 mm
B23003001216850 mm
B23003001239750 mm
B230030015633,300 mm
B23003002216550 mm
B230030023131,800 mm
B230030023731,800 mm
B23003002376800 mm
B230030024902,600 mm
B2300300254411,600 mm
B230030041731,000 mm
B23003004291800 mm
B230030043091,800 mm
B230030043853,200 mm
B23003004654900 mm
B230030055141,850 mm
B230030074792,850 mm
B230030607311,150 mm
B230030005888I700 mm
B2300300237582,500 mm
B230103000694200 mm
B2301030011681,580 mm
B230103001216850 mm
B2301030025331,200 mm
B2301030026583,200 mm
B230103002718450 mm
B2301030043091,800 mm
B2301030046541,100 mm
B2300300059210II600 mm
B2301030007686I320 mm
B2301030038968I260 mm
B2301030608726I1,500 mm
B230030002351911,300 mm
B230103000076811,300 mm
B25010300335825IVF4762,500 mm
D23003000032,200 mm

Original handwritten sheets

Complete pages are shown in their original proportions without cropping.

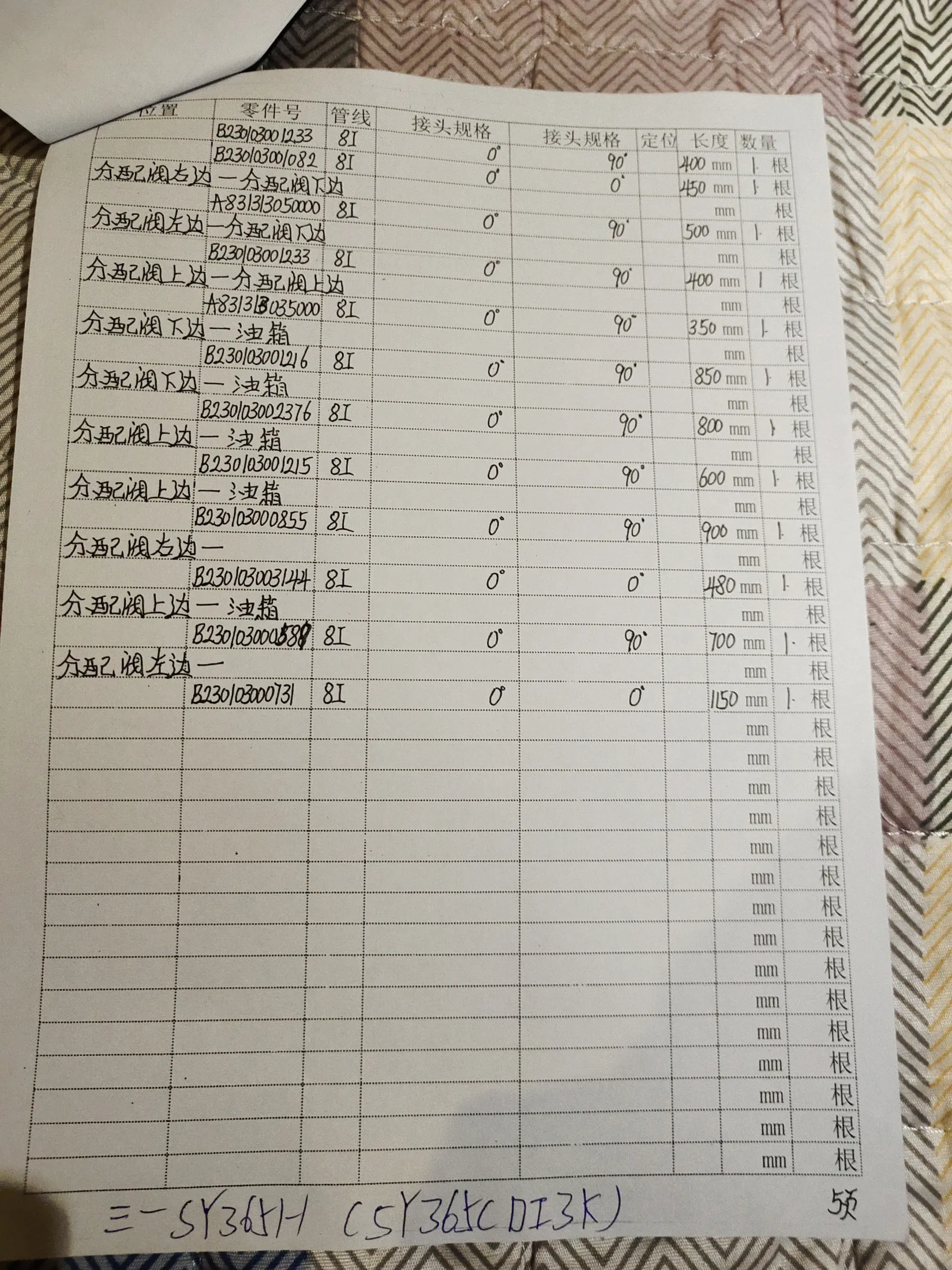

SANY SY365H hydraulic hose part numbers and recorded lengths — technician notebook page 10 of 10 — recorded hose parts A83131305000, B230030005888I, B2300300073
Notebook page 10 of 10Recorded on this sheet: A83131305000 — 450 mm; B230030005888I — 700 mm; B2300300073 — 150 mm; B2300300085 — 900 mm; and 1 more recorded hose.
SANY SY365H hydraulic hose part numbers and recorded lengths — technician notebook page 6 of 10 — recorded hose parts B2300300562, B230103001168
Notebook page 6 of 10Recorded on this sheet: B2300300562 — 3,000 mm; B230103001168 — 1,580 mm.

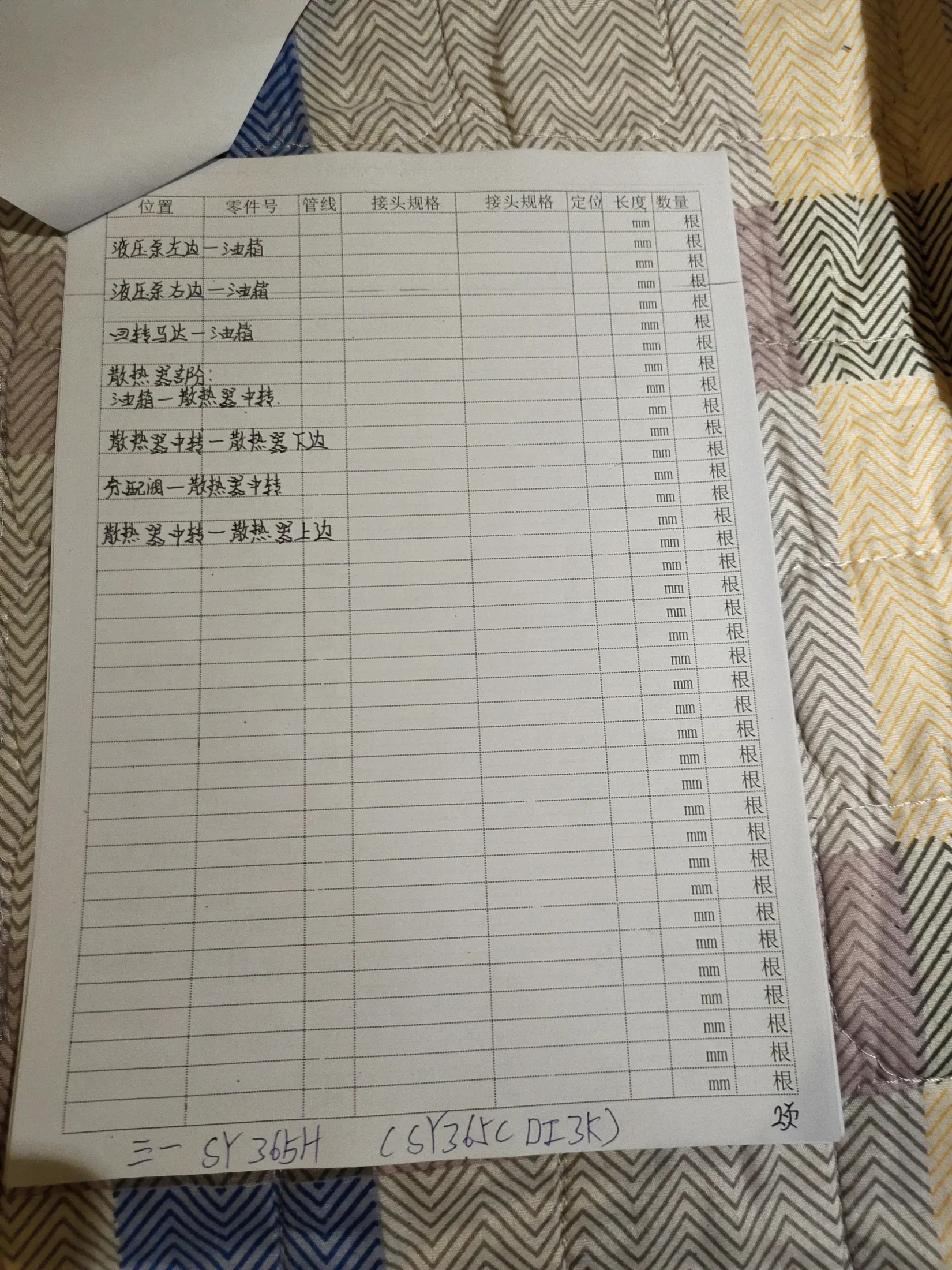

SANY SY365H hydraulic hose part numbers and recorded lengths — technician notebook page 7 of 10
Notebook page 7 of 10

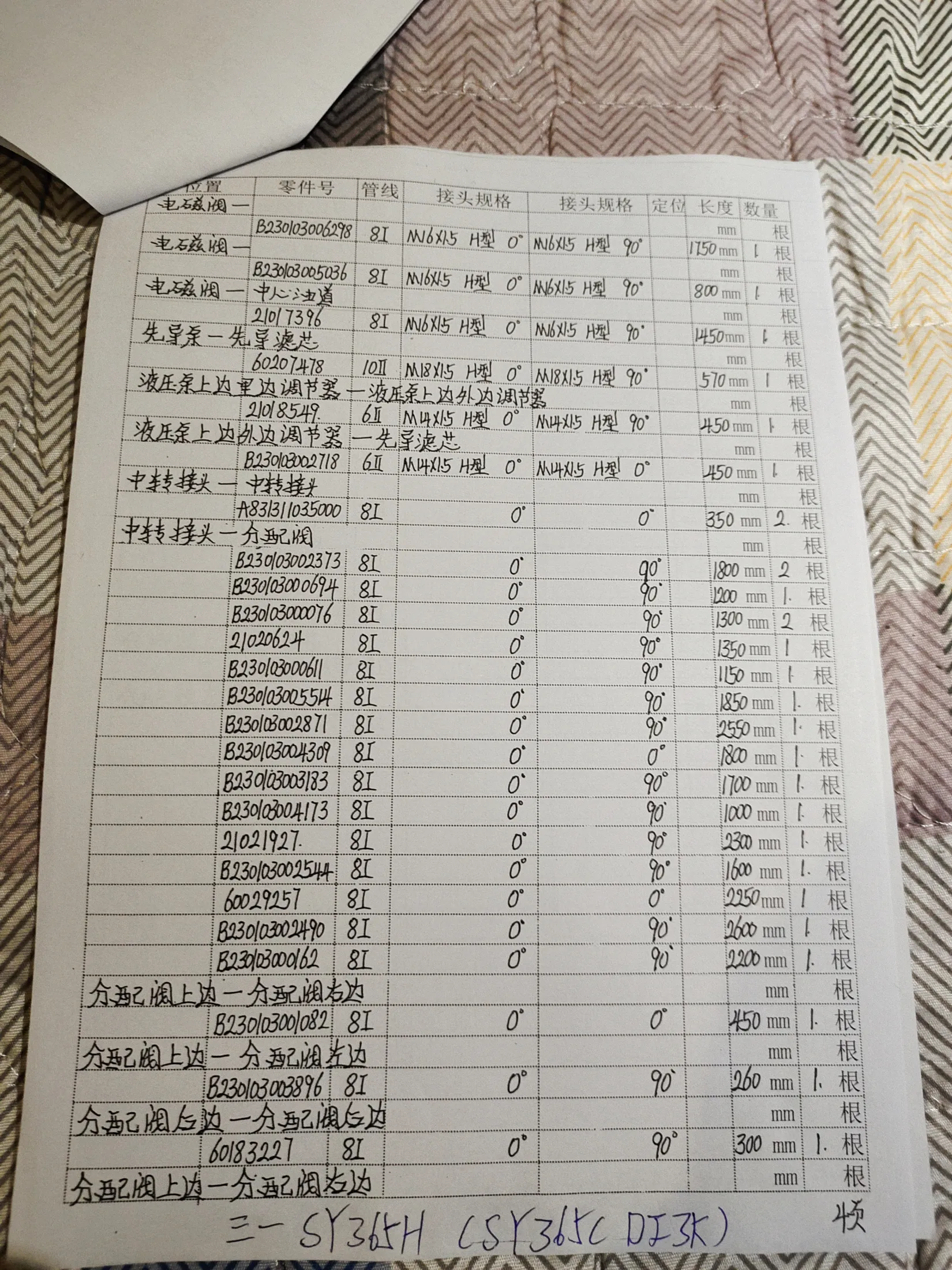

SANY SY365H hydraulic hose part numbers and recorded lengths — technician notebook page 9 of 10 — recorded hose parts B23003000076, B23003000162, B23003000828I
Notebook page 9 of 10Recorded on this sheet: B23003000076 — 1,300 mm; B23003000162 — 12,200 mm; B23003000828I — 450 mm; B23003002313 — 1,800 mm; and 9 more recorded hoses.

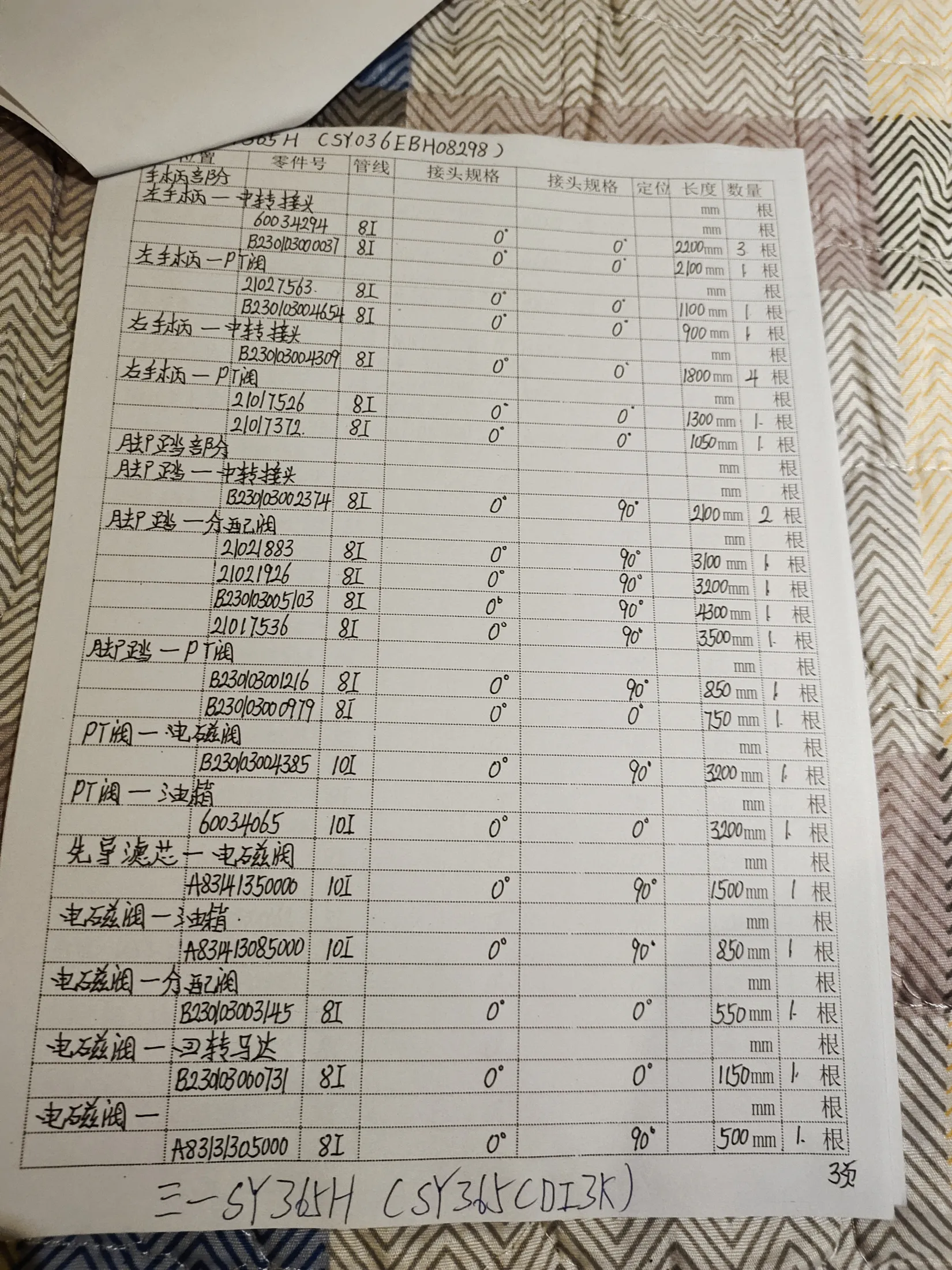

SANY SY365H hydraulic hose part numbers and recorded lengths — technician notebook page 8 of 10 — recorded hose parts A831413085000, A83141350006, A833305000
Notebook page 8 of 10Recorded on this sheet: A831413085000 — 850 mm; A83141350006 — 1,500 mm; A833305000 — 500 mm; B23003000979 — 750 mm; and 5 more recorded hoses.

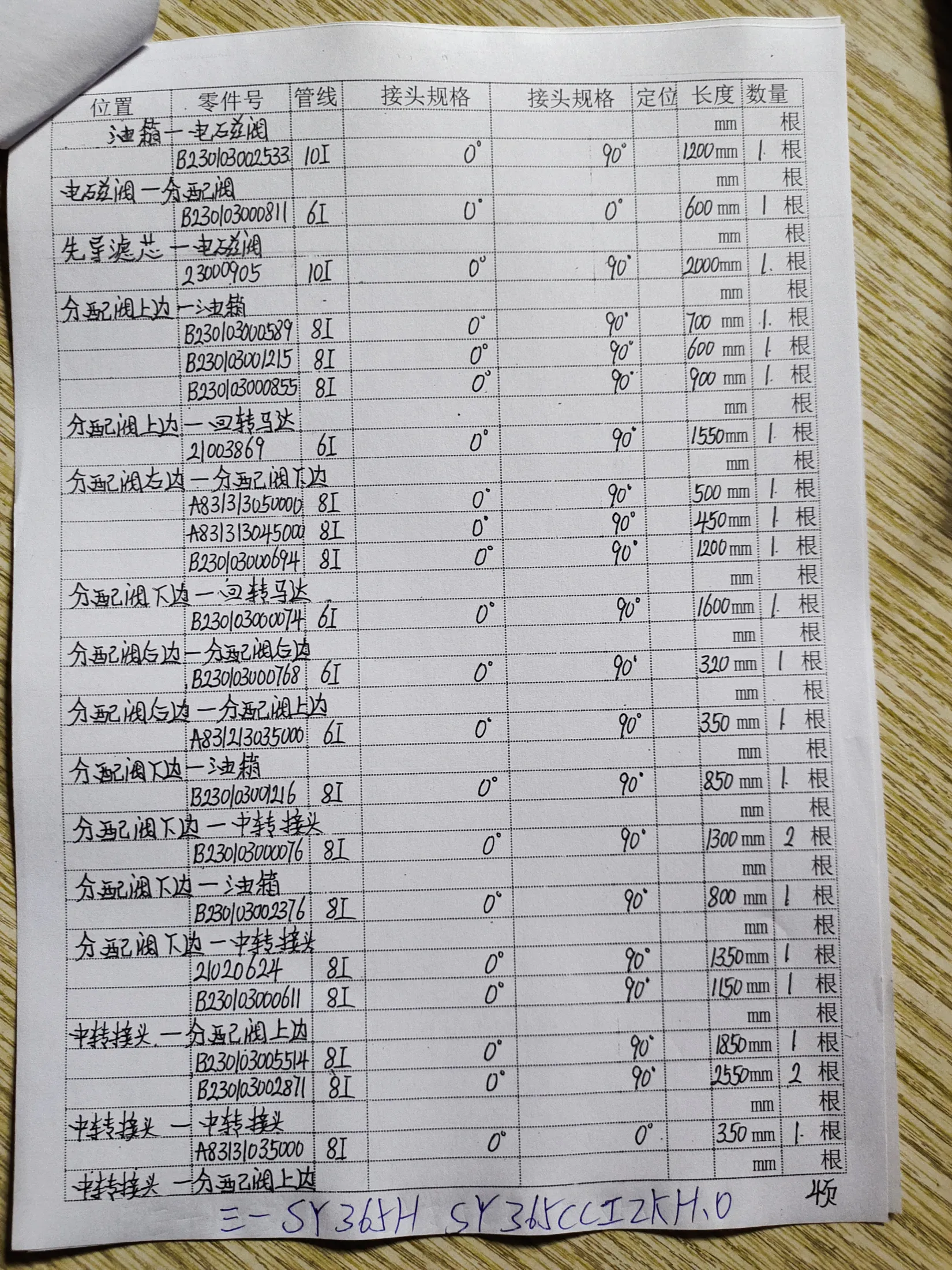

SANY SY365H hydraulic hose part numbers and recorded lengths — technician notebook page 4 of 10 — recorded hose parts A8313035000, A832303500001, A833305000081
Notebook page 4 of 10Recorded on this sheet: A8313035000 — 350 mm; A832303500001 — 350 mm; A833305000081 — 500 mm; B23003000014 — 1,600 mm; and 6 more recorded hoses.

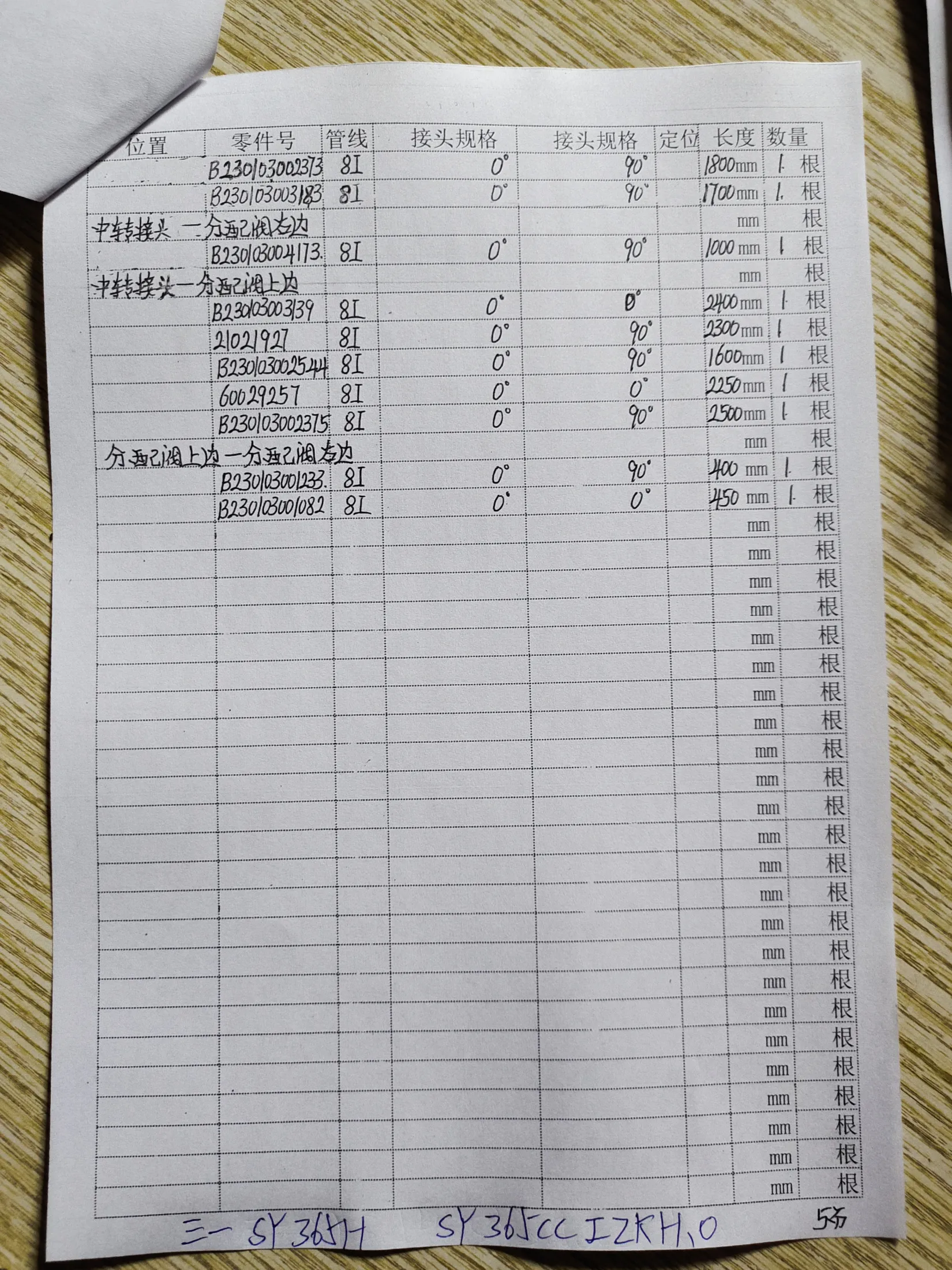

SANY SY365H hydraulic hose part numbers and recorded lengths — technician notebook page 5 of 10 — recorded hose parts B23003002373, B230030023758
Notebook page 5 of 10Recorded on this sheet: B23003002373 — 1,800 mm; B230030023758 — 2,500 mm.

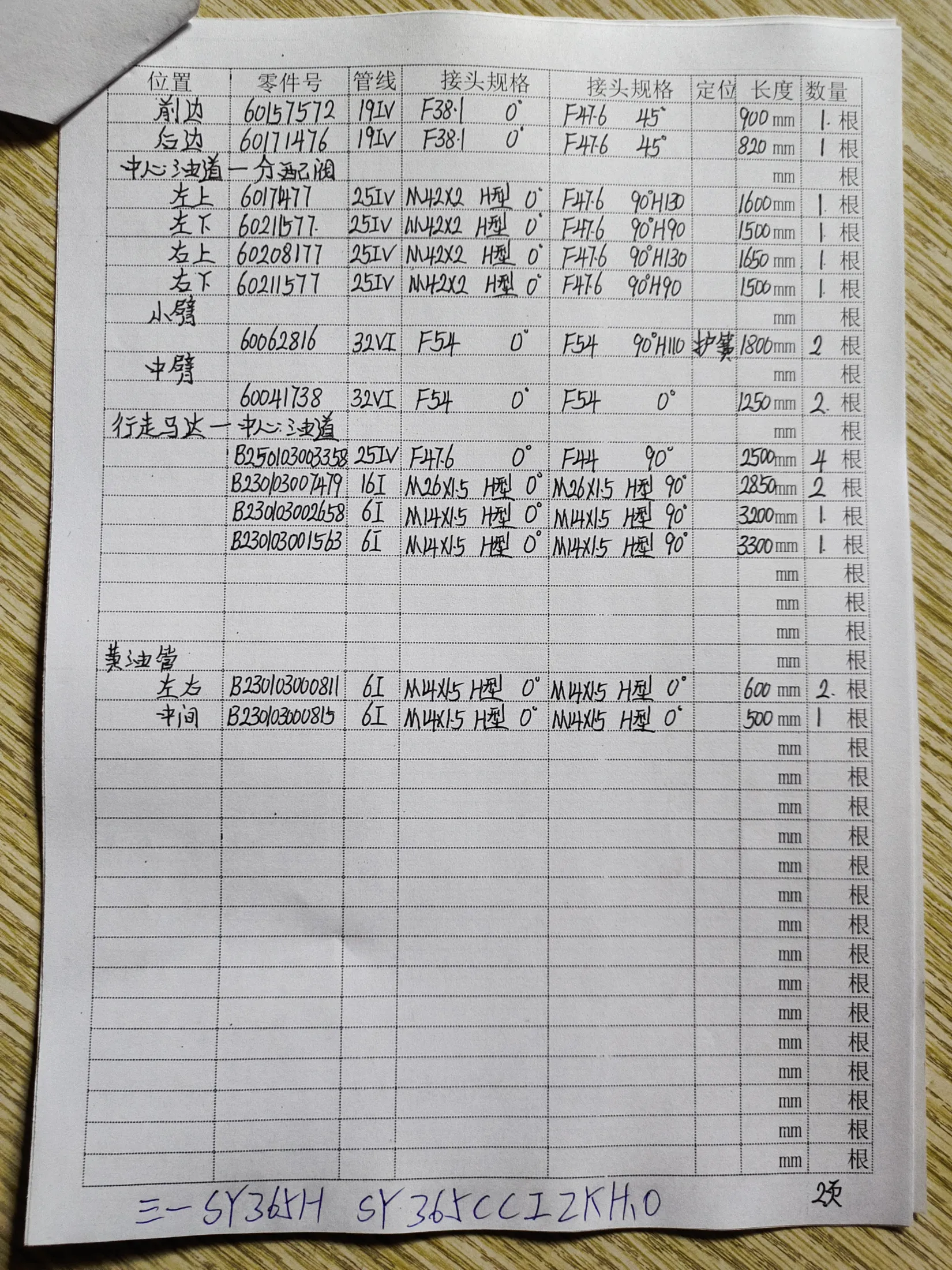

SANY SY365H hydraulic hose part numbers and recorded lengths — technician notebook page 2 of 10 — recorded hose parts B2300300081, B23003000815, B23003001563
Notebook page 2 of 10Recorded on this sheet: B2300300081 — 600 mm; B23003000815 — 500 mm; B23003001563 — 3,300 mm; B23003007479 — 2,850 mm; and 2 more recorded hoses.

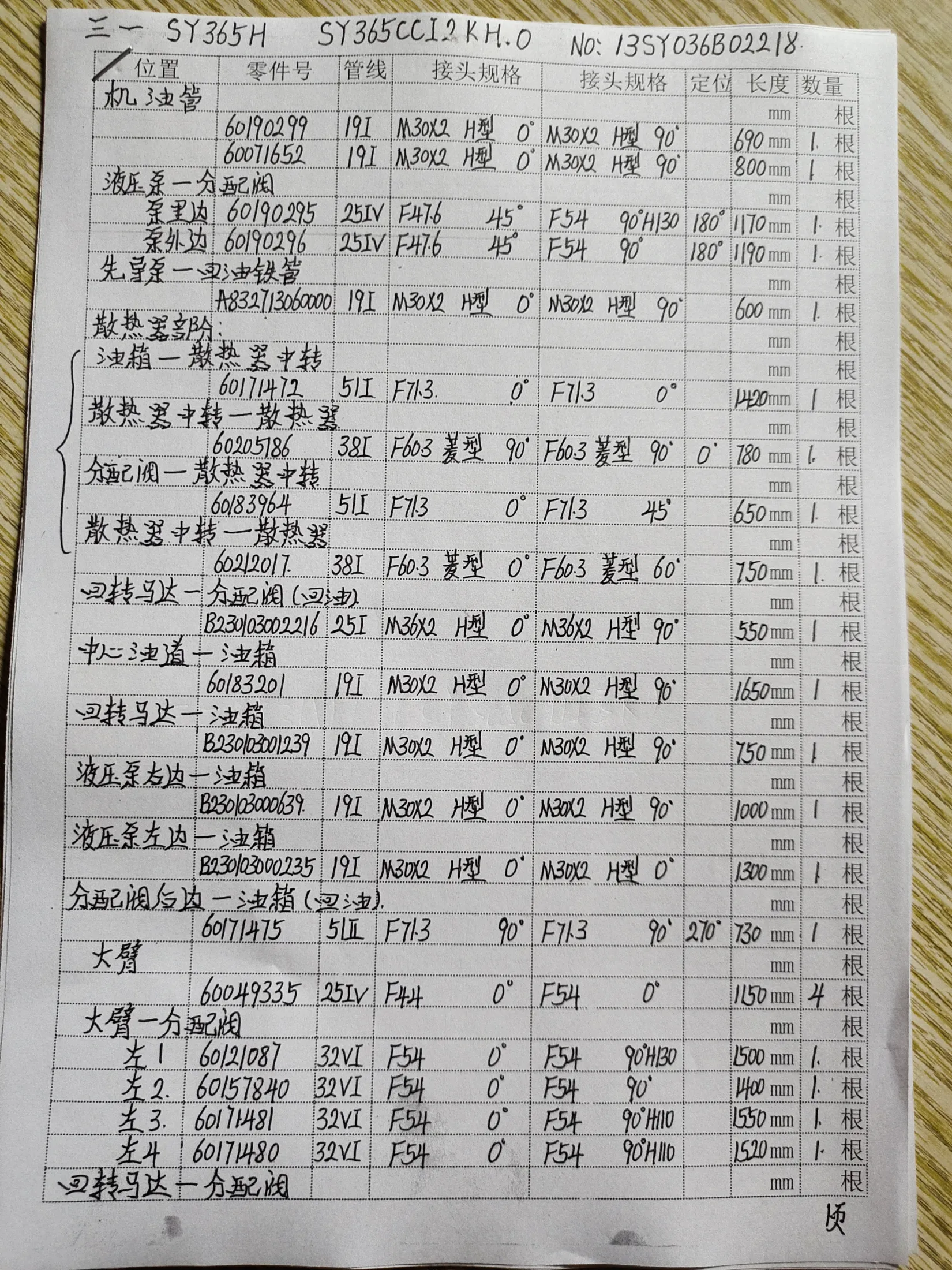

SANY SY365H hydraulic hose part numbers and recorded lengths — technician notebook page 1 of 10 — recorded hose parts A832713060000, B23003000235191, B23003000639
Notebook page 1 of 10Recorded on this sheet: A832713060000 — 600 mm; B23003000235191 — 1,300 mm; B23003000639 — 1,000 mm; B23003001239 — 750 mm; and 1 more recorded hose.

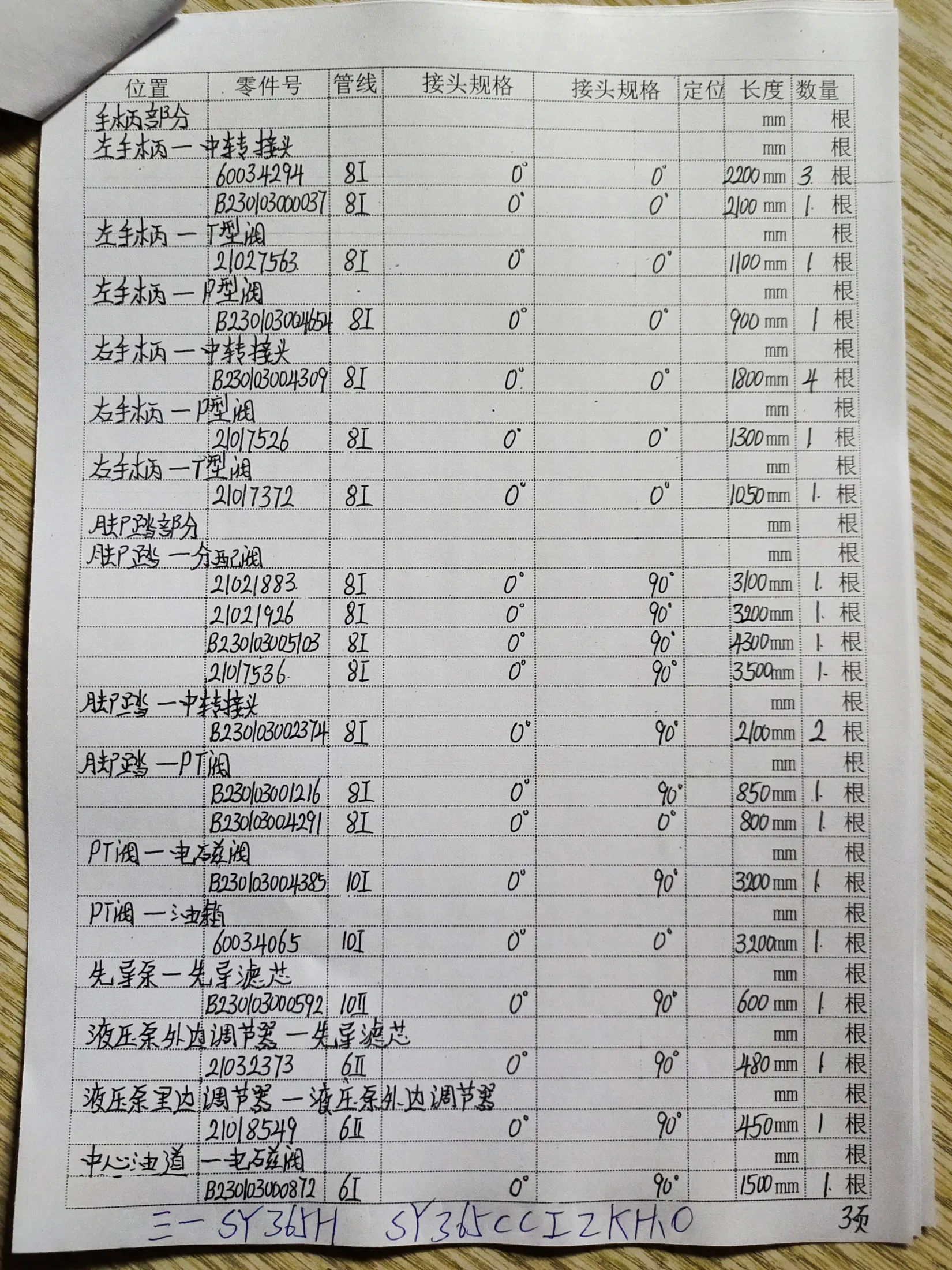

SANY SY365H hydraulic hose part numbers and recorded lengths — technician notebook page 3 of 10 — recorded hose parts B2300300059210II, B23003001216, B23003004291
Notebook page 3 of 10Recorded on this sheet: B2300300059210II — 600 mm; B23003001216 — 850 mm; B23003004291 — 800 mm; B23003004309 — 1,800 mm; and 4 more recorded hoses.

Workshop guide

Finding the correct hydraulic hose for SANY SY365H

Start with the machine and route

For SANY SY365H, identify the exact model and hydraulic system on the machine first. A part number or diagram pipe number is the fastest way to narrow a replacement hose; if neither is visible, compare the installation route and the existing hose.

Read the dimensions before cutting

Check whether a listed dimension is finished assembly length, hose-only length, or cut length. These are not interchangeable. Confirm hose specification and pressure rating, then compare both ends separately: thread, sealing seat, size, angle, and orientation.

Records to compare

  • B230103002718450 mm · 6I · 液压泵上边外边调节器—先导滤芯

Use the drawing as a location check

Where an installation drawing or manual figure is available, match its callout to the part number and physical route. A hydraulic circuit diagram explains connections but does not show the exact routing of a hose on the machine. Take the old hose or clear end-fitting photographs to the workshop if any dimension is missing.

Based on current published data

Common Repair Questions

Questions appear only when a published record or linked PDF page provides the answer.

What is the hose length range for SANY SY365H?

Based on published records with valid lengths, the range is 450 mm. Open the individual record to verify its installation position and both end fittings before fabrication.

Which hose specifications are common for SANY SY365H?

The most frequent raw specifications in the current published records are: 6I (1 records). Verify the specification together with length, pressure, and fitting details.

How can I identify the left and right hose fittings for SANY SY365H?

Each record keeps the left and right fitting descriptions separate. Current examples: B230103002718: left M14×1.5 H型 0°（手写接头规格）; right M14×1.5 H型 0°（手写接头规格）. Open the exact part-number or pipe-number record; do not swap ends based on appearance alone.
