Machine hose information
TYM TX22H Front End Loader Attachment hydraulic hose manuals and diagrams
Use these manuals and diagrams to identify the machine section before checking individual repair dimensions.
Open machine manualOpens the complete PDF from this site in a new tab.
Fast lookup
Find the exact hose data you need
Search the complete catalog by model, brand, part number, system, hose specification, or installation route.
A model or part number usually gives the fastest result.
- Equipment type
- Tractor / Loader Attachment
- Brand
- TYM
- Model
- TX22H Front End Loader Attachment
- Information available
- Dedicated machine manual group
- Related manuals
- 1
- Manufacturer manuals
- 1
- Hose specification manuals
- 0
Workshop hose lookup
TX22H hydraulic hose length and connection lookup
Match the manual figure and callout first, then confirm the part number, manual-listed length, and connection specification.

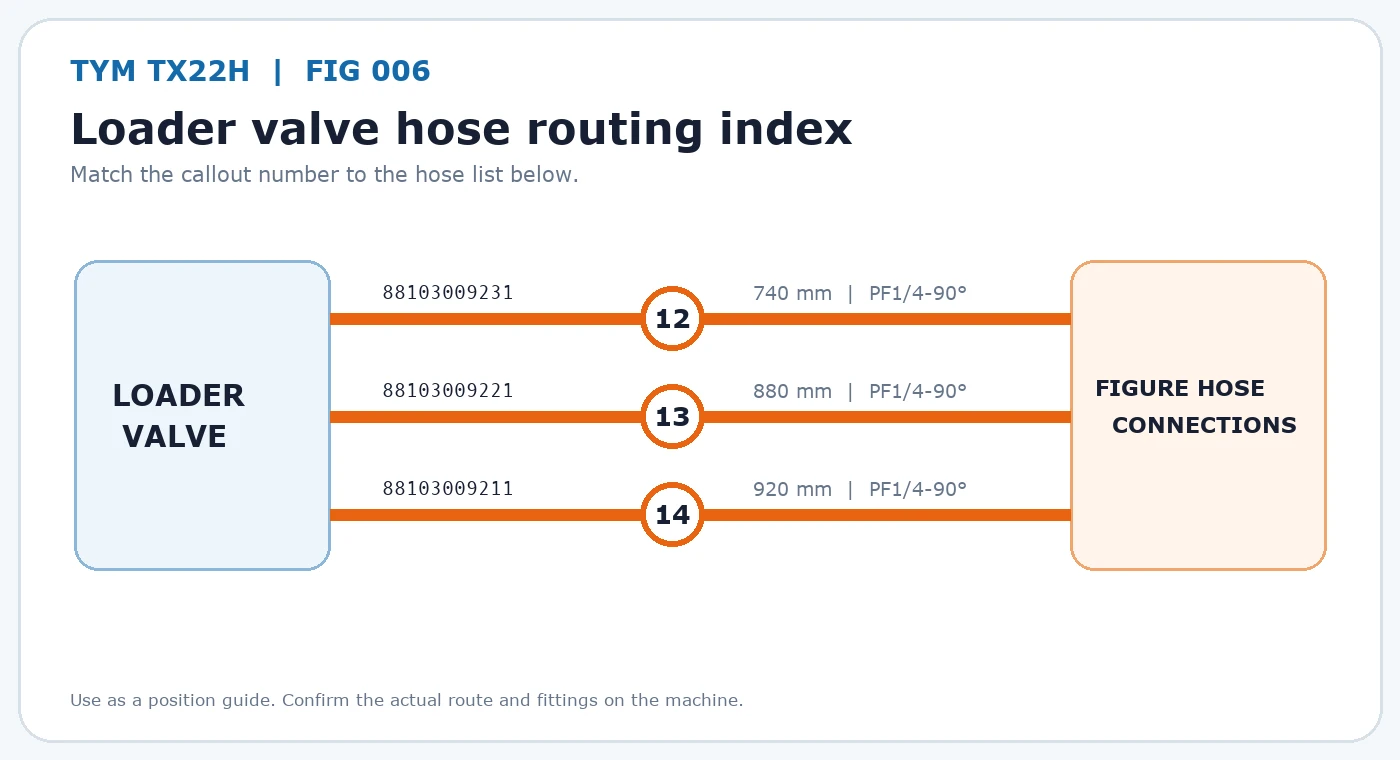

FIG 006
Loader valve
| Callout | Part number | Manual-listed length | Connection specification | Qty. | Diagram |
|---|---|---|---|---|---|

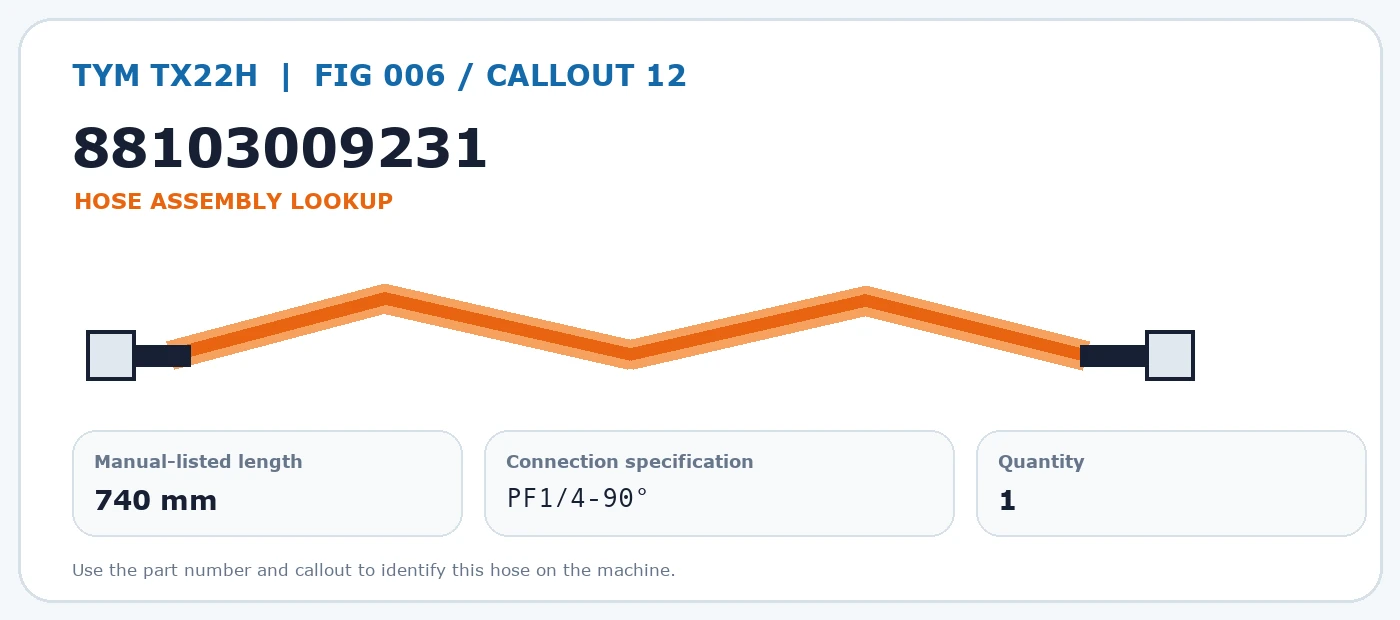

| 12 | 88103009231 | 740 mm | PF1/4-90° | 1 | View hose diagramManual pages 11 / 12 |

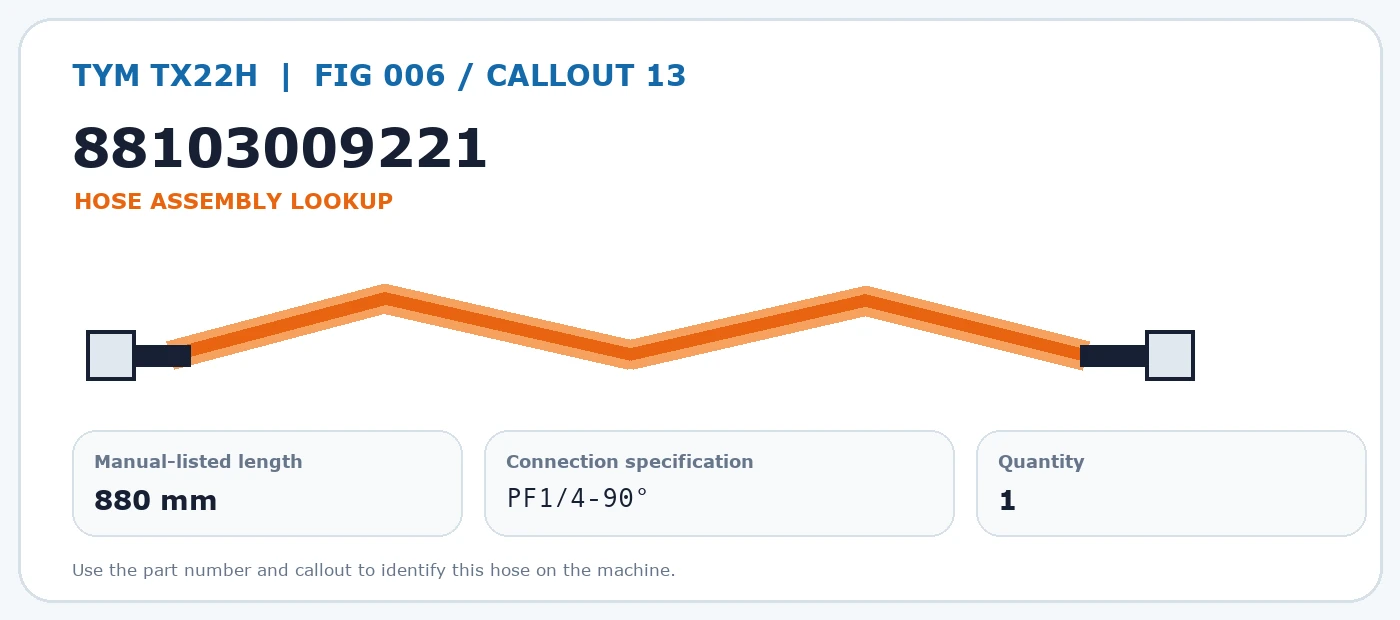

| 13 | 88103009221 | 880 mm | PF1/4-90° | 1 | View hose diagramManual pages 11 / 12 |

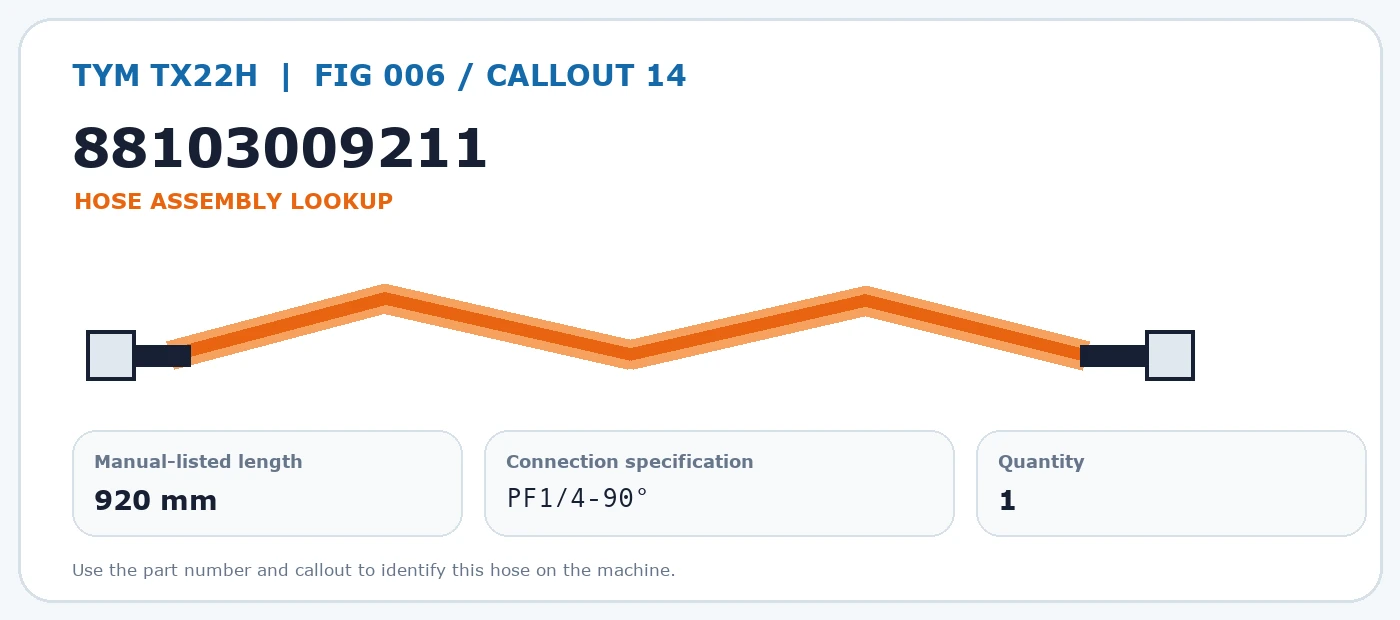

| 14 | 88103009211 | 920 mm | PF1/4-90° | 1 | View hose diagramManual pages 11 / 12 |

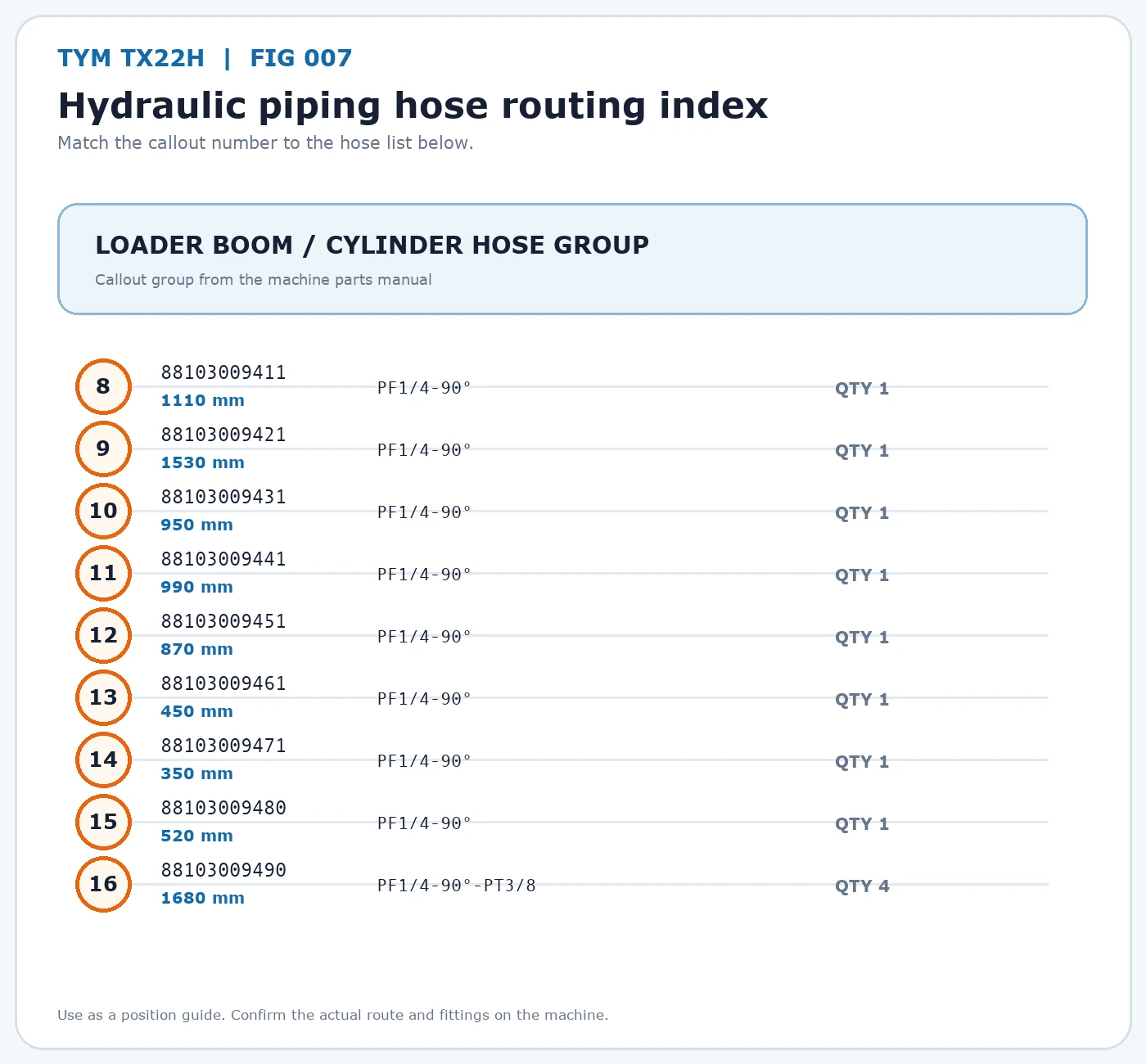

FIG 007
Hydraulic piping assembly
| Callout | Part number | Manual-listed length | Connection specification | Qty. | Diagram |
|---|---|---|---|---|---|
| 8 | 88103009411 | 1110 mm | PF1/4-90° | 1 | View hose diagramManual pages 13 / 14 |

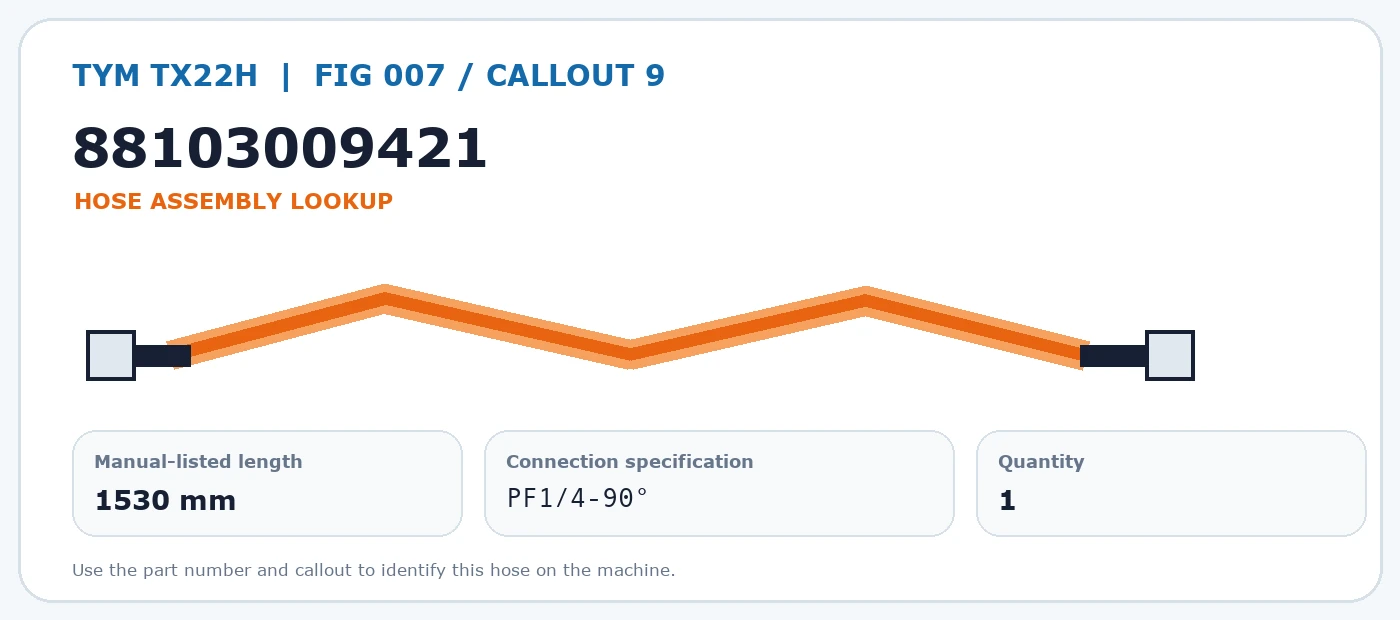

| 9 | 88103009421 | 1530 mm | PF1/4-90° | 1 | View hose diagramManual pages 13 / 14 |
| 10 | 88103009431 | 950 mm | PF1/4-90° | 1 | View hose diagramManual pages 13 / 14 |
| 11 | 88103009441 | 990 mm | PF1/4-90° | 1 | View hose diagramManual pages 13 / 14 |
| 12 | 88103009451 | 870 mm | PF1/4-90° | 1 | View hose diagramManual pages 13 / 14 |
| 13 | 88103009461 | 450 mm | PF1/4-90° | 1 | View hose diagramManual pages 13 / 14 |
| 14 | 88103009471 | 350 mm | PF1/4-90° | 1 | View hose diagramManual pages 13 / 14 |

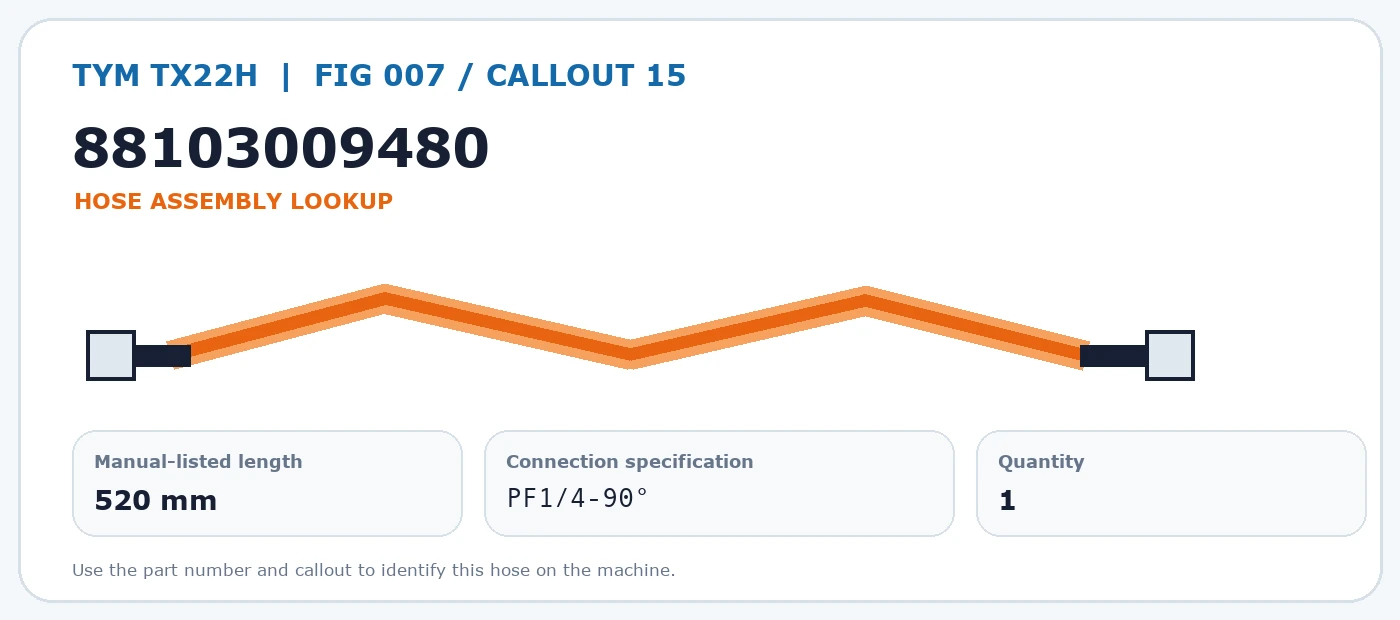

| 15 | 88103009480 | 520 mm | PF1/4-90° | 1 | View hose diagramManual pages 13 / 14 |

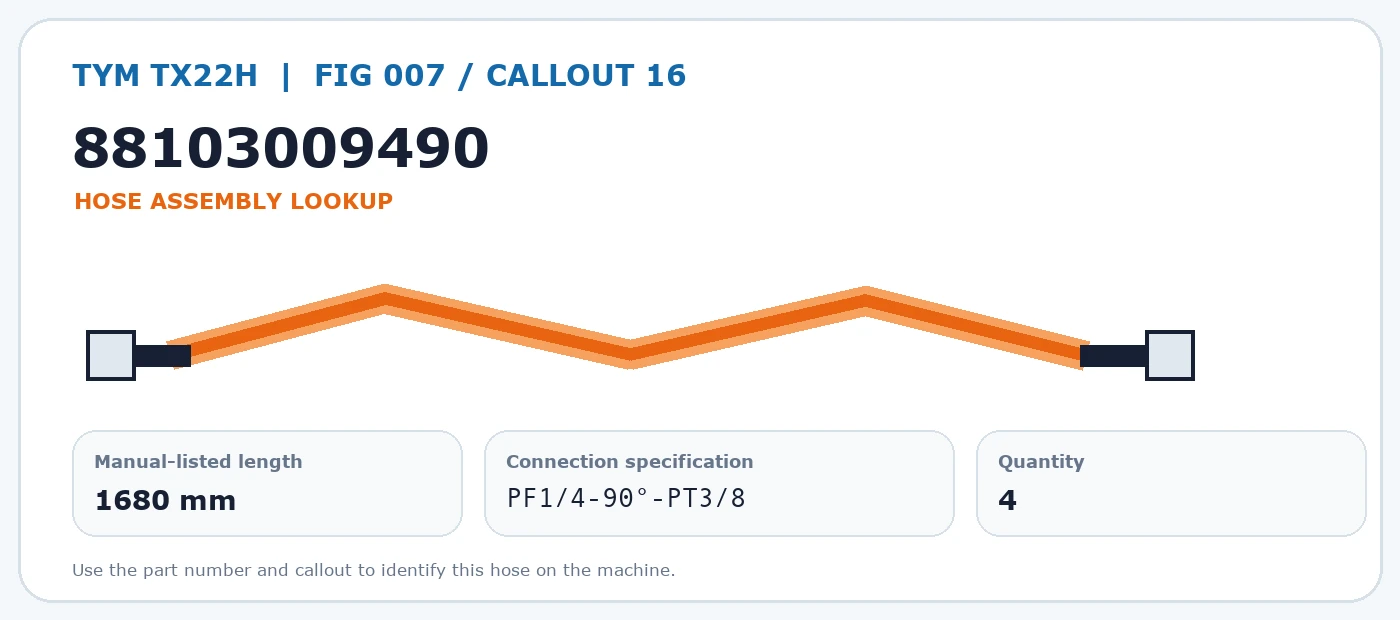

| 16 | 88103009490 | 1680 mm | PF1/4-90°-PT3/8 | 4 | View hose diagramManual pages 13 / 14 |
For reference only. Confirm the actual hose before fabrication.
Machine literature
Related manuals

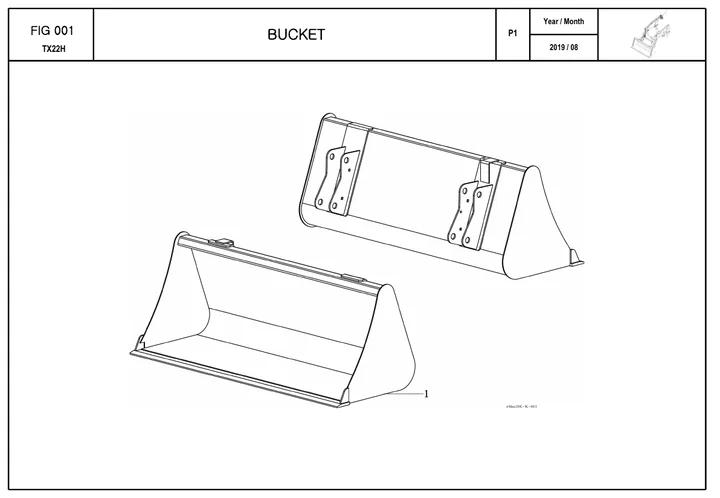

TYM TX22H Front End Loader Attachment Parts Catalog
- Manual coverage
- Parts and installation diagrams
- Pages
- 16
