TYM TX25P loader attachment hydraulic hose manuals and diagrams
Use these manuals and diagrams to identify the machine section before checking individual repair dimensions.
Open machine manualOpens the complete PDF from this site in a new tab.
Fast lookup
Find the exact hose data you need
Search the complete catalog by model, brand, part number, system, hose specification, or installation route.
A model or part number usually gives the fastest result.
- Equipment type
- Tractor / Loader Attachment
- Brand
- TYM
- Model
- TX25P loader attachment
- Information available
- Dedicated machine manual group
- Related manuals
- 1
- Manufacturer manuals
- 1
- Hose specification manuals
- 0
Workshop hose lookup
TX25P hydraulic hose length and connection lookup
Match the manual figure and callout first, then confirm the part number, manual-listed length, and connection specification.

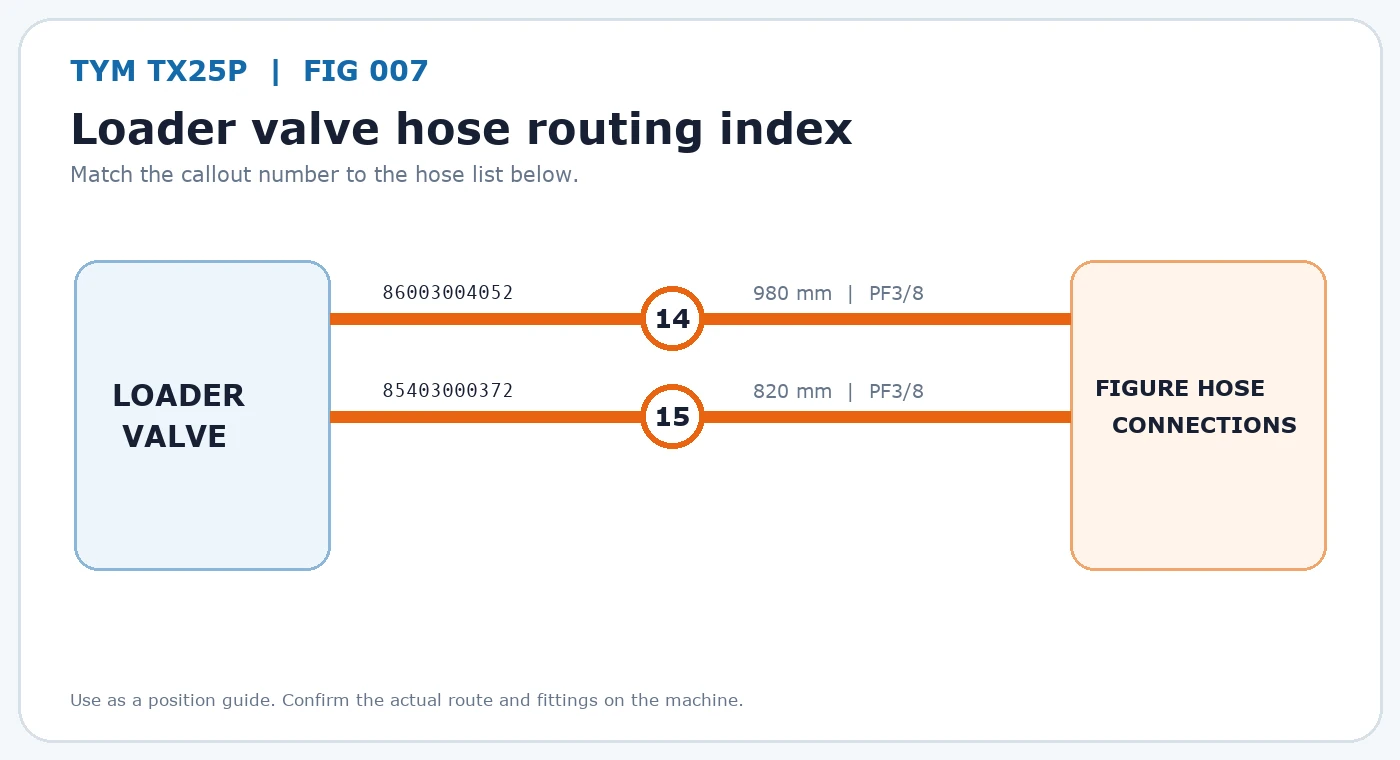

FIG 007
Loader valve
| Callout | Part number | Manual-listed length | Connection specification | Qty. | Diagram |
|---|---|---|---|---|---|

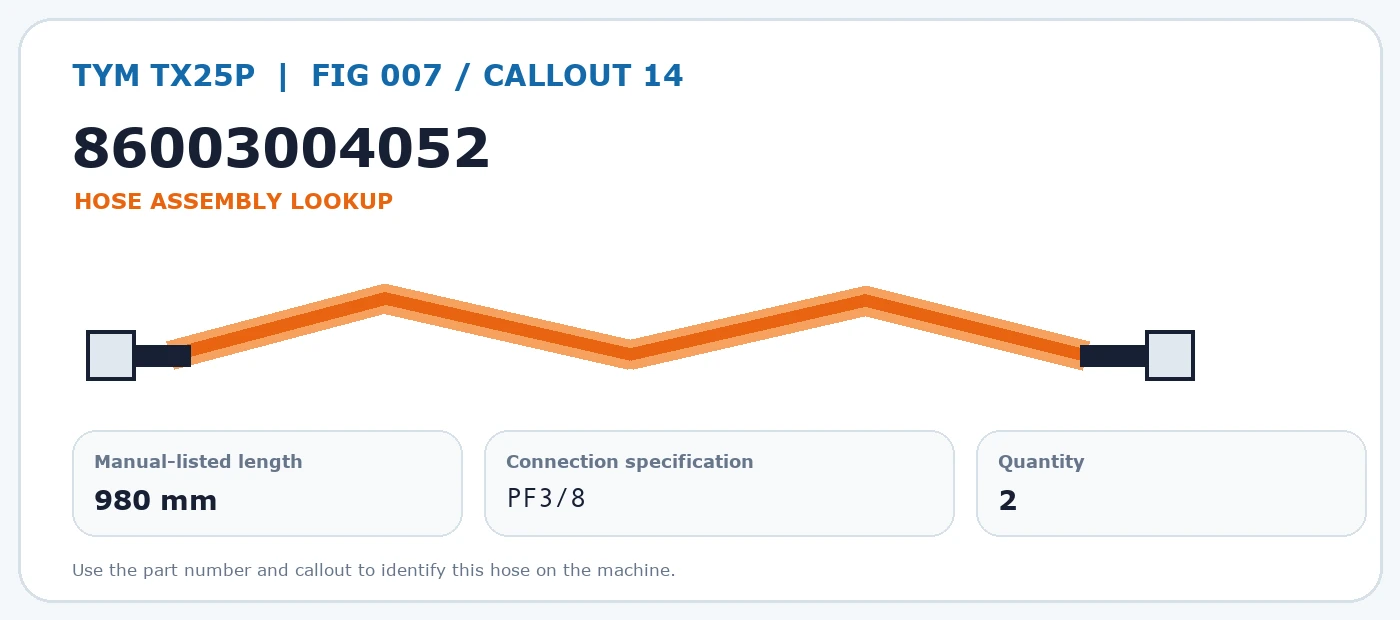

| 14 | 86003004052 | 980 mm | PF3/8 | 2 | View hose diagramManual pages 15 / 16 |

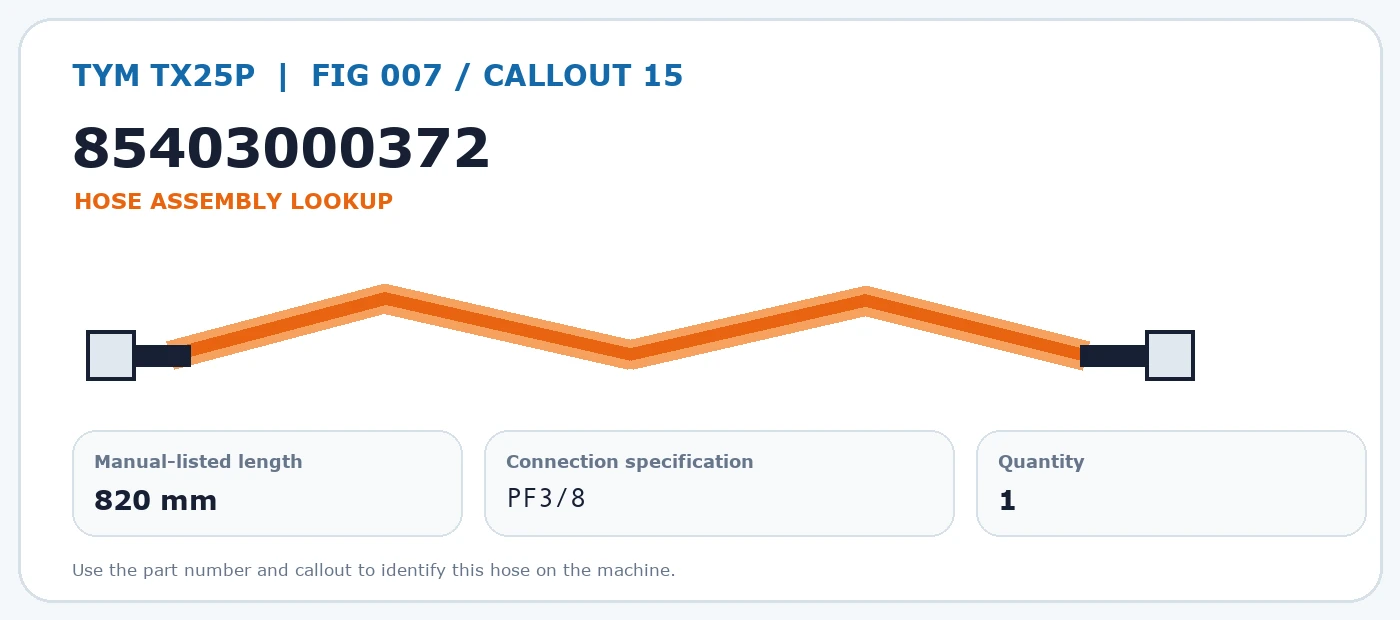

| 15 | 85403000372 | 820 mm | PF3/8 | 1 | View hose diagramManual pages 15 / 16 |
FIG 008

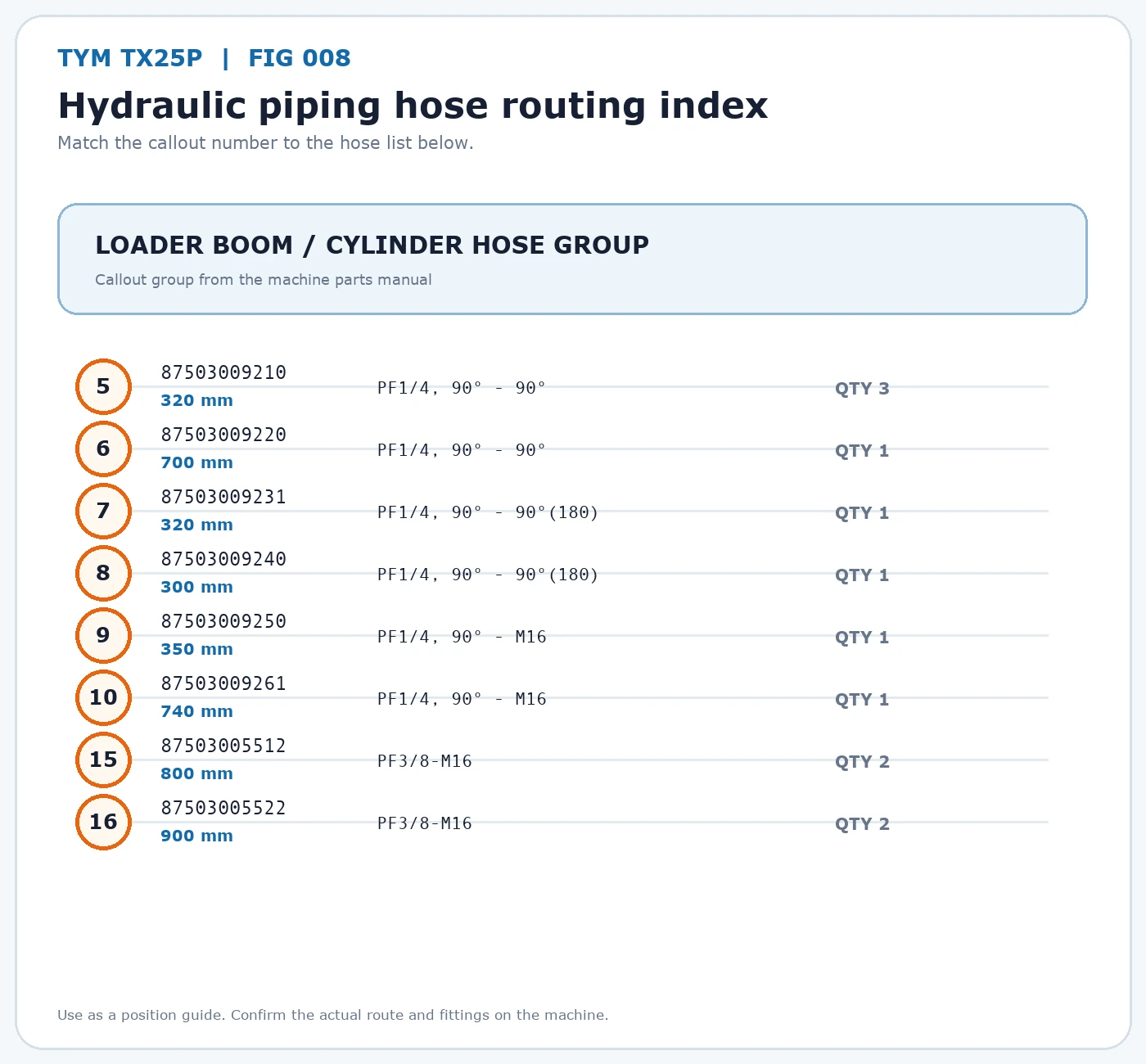

Hydraulic piping assembly
| Callout | Part number | Manual-listed length | Connection specification | Qty. | Diagram |
|---|---|---|---|---|---|
| 5 | 87503009210 | 320 mm | PF1/4, 90° - 90° | 3 | View hose diagramManual pages 17 / 18 |
| 6 | 87503009220 | 700 mm | PF1/4, 90° - 90° | 1 | View hose diagramManual pages 17 / 18 |

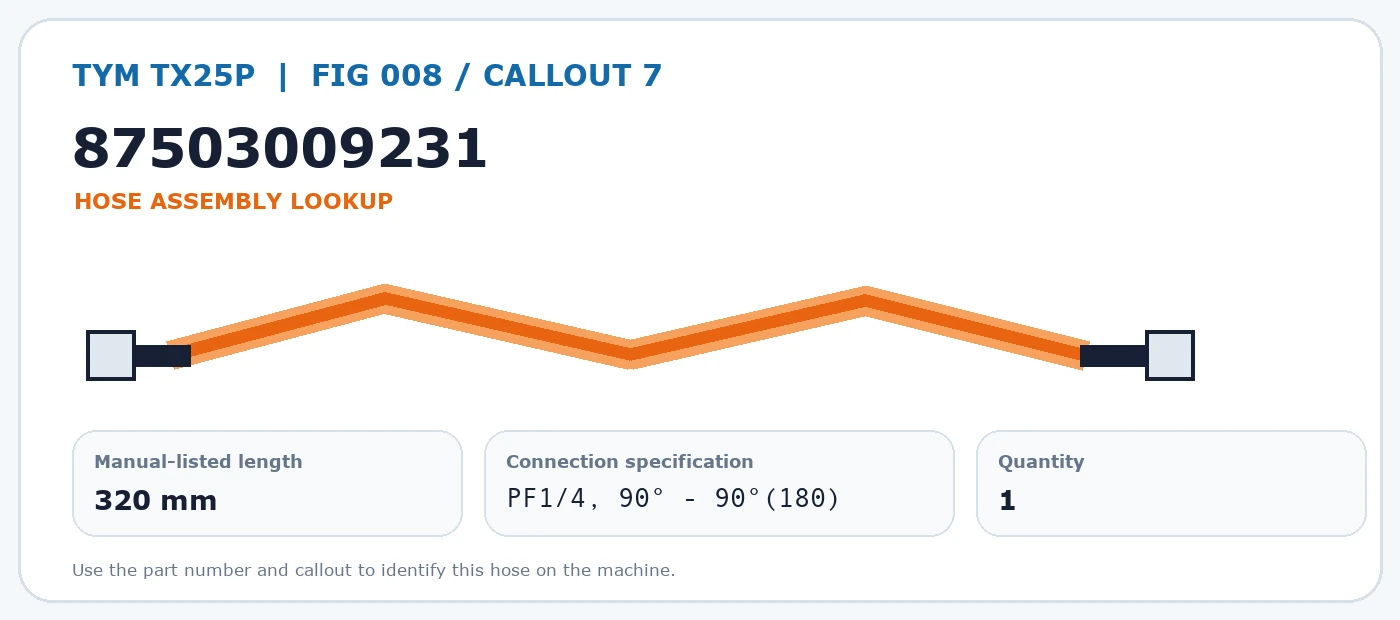

| 7 | 87503009231 | 320 mm | PF1/4, 90° - 90°(180) | 1 | View hose diagramManual pages 17 / 18 |
| 8 | 87503009240 | 300 mm | PF1/4, 90° - 90°(180) | 1 | View hose diagramManual pages 17 / 18 |
| 9 | 87503009250 | 350 mm | PF1/4, 90° - M16 | 1 | View hose diagramManual pages 17 / 18 |
| 10 | 87503009261 | 740 mm | PF1/4, 90° - M16 | 1 | View hose diagramManual pages 17 / 18 |

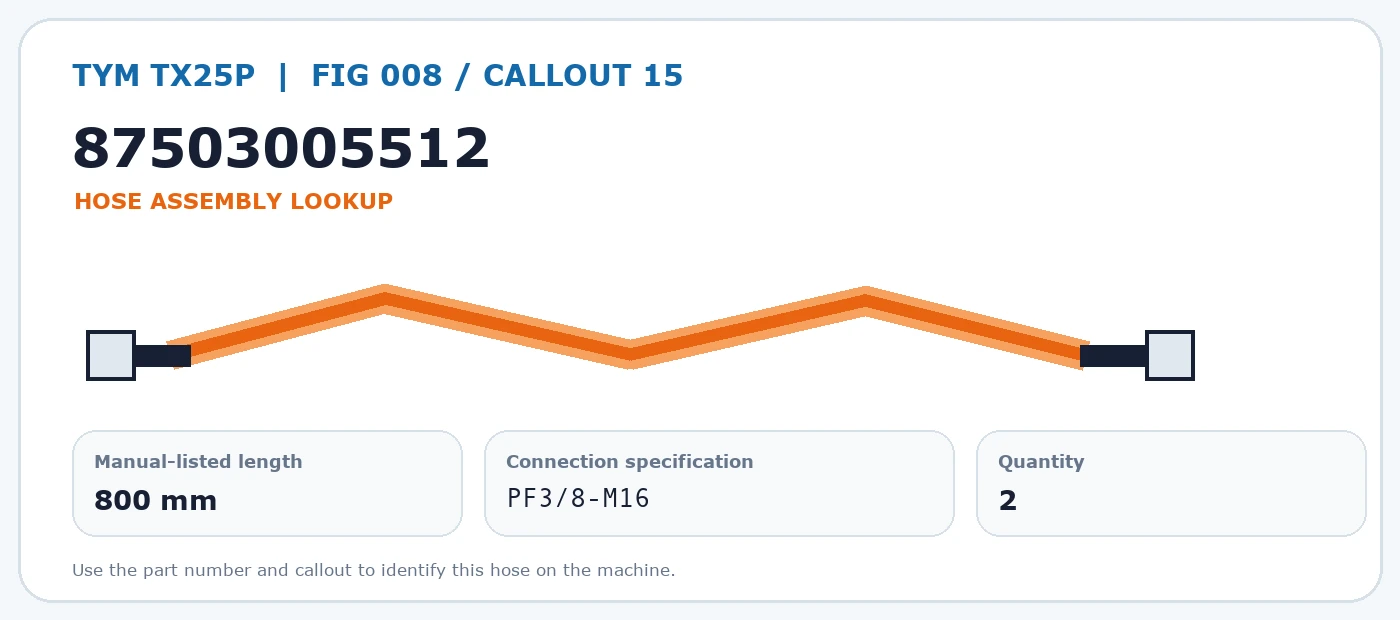

| 15 | 87503005512 | 800 mm | PF3/8-M16 | 2 | View hose diagramManual pages 17 / 18 |
| 16 | 87503005522 | 900 mm | PF3/8-M16 | 2 | View hose diagramManual pages 17 / 18 |
For reference only. Confirm the actual hose before fabrication.
Machine literature
Related manuals

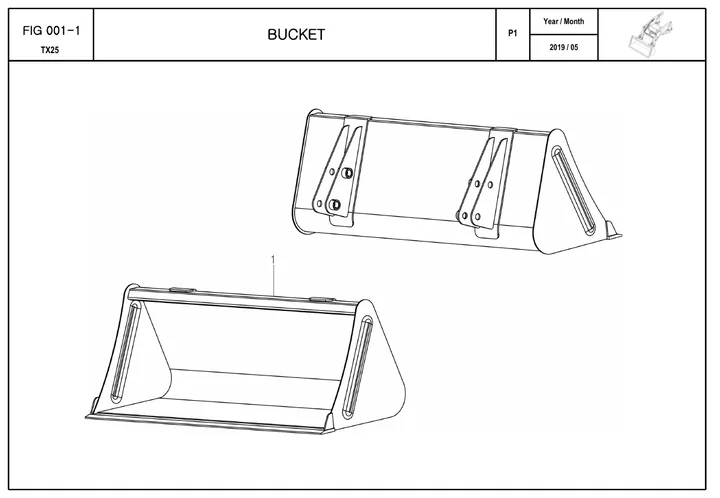

tym-tx25p-loader-attachment-parts-catalog
