Individual hose record
4I-6248 Hose Repair Specifications
Excavator · Caterpillar · CAT®318E L · Swing Motor
Finished length940 mm
Locate this hose

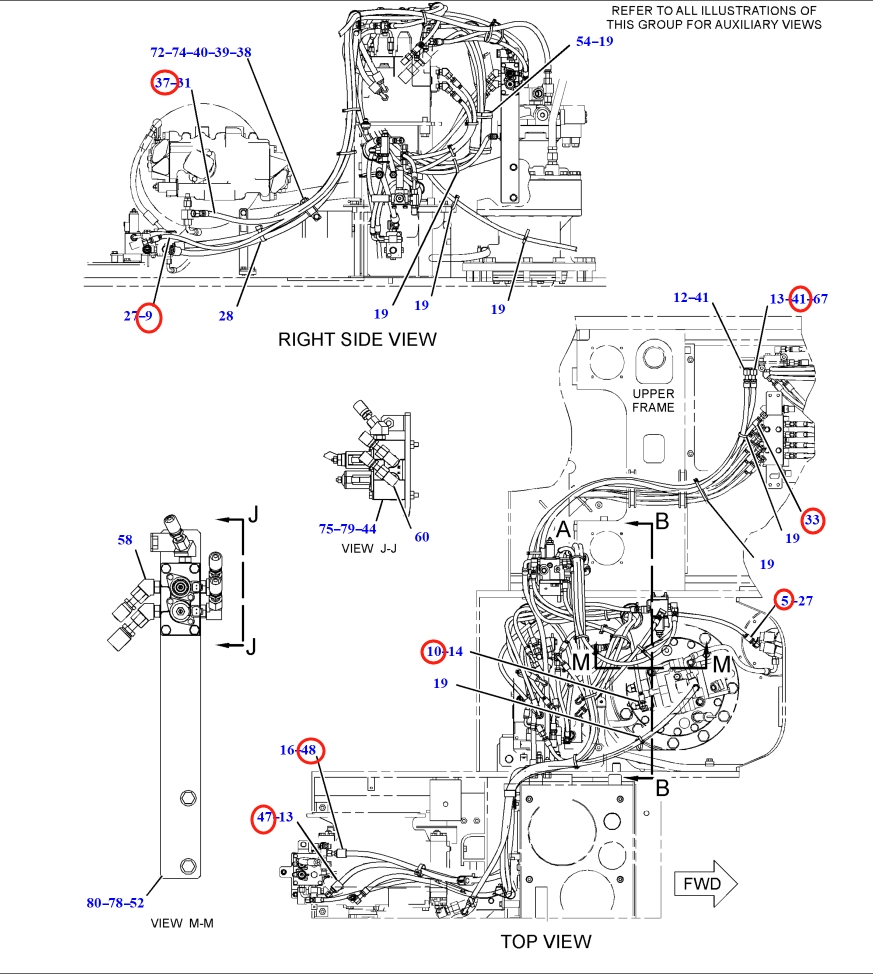

Installation diagram — Pipe No. 10
Locate Pipe No. 10 in the diagram, then confirm part number 4I-6248 before removing the hose.
Repair specifications
- Part number
- 4I-6248
- Diagram pipe number
- 10
- Installation route
- 回转马达~
- Hose specification
- DN10;-6;10.3Mpa
- Finished length
- 940 mm
- Working pressure
- 10.3 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
