Individual hose record

302-9414 Hose Repair Specifications

Excavator · Caterpillar · CAT®315F LCR · Attachments – Quick Coupler

Finished length1,120 mm

Locate this hose

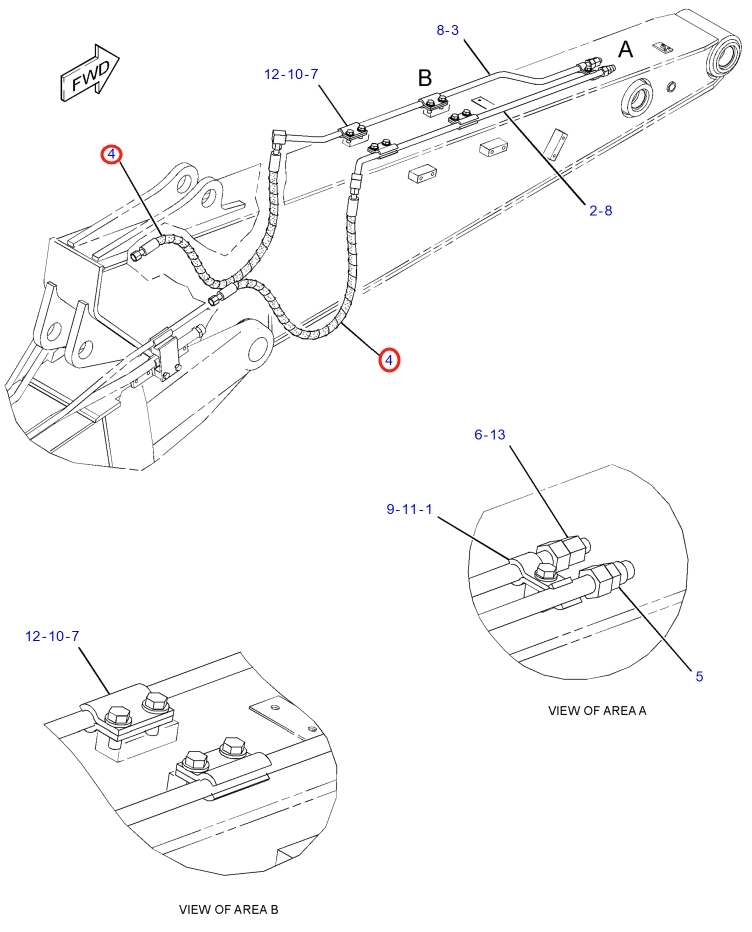

Installation diagram — Pipe No. 4

Locate Pipe No. 4 in the diagram, then confirm part number 302-9414 before removing the hose.

Caterpillar CAT®315F LCR installation diagram showing hydraulic hose 302-9414 at Pipe No. 4 — **Caterpillar CAT®315F LCR**Part 302-9414 · Pipe No. 4Open full-size diagram

Repair specifications

Part number: 302-9414
Diagram pipe number: 4
Installation route: 大臂(快换)~小臂大臂(快换)
Hose specification: DN13;6SH-8;42Mpa
Finished length: 1,120 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 6

115-8707

Installation route: 快速联轴阀~分配阀上

Length: 2,170 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 3

372-9624

Installation route: 大臂(快换)~小臂大臂(快换)

Length: 870 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 15

397-1483

Installation route: 大臂(快换)~控制阀(大臂座销旁)

Length: 3,060 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 16

397-1486

Installation route: 大臂(快换)~控制阀(大臂座销旁)

Length: 3,100 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 2

382-7079

Installation route: 大臂(快换)~小臂大臂(快换)

Length: 1,580 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 14

391-5275

Installation route: 控制阀(大臂座销旁)~分配阀

Length: 610 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 2

277-1251

Installation route: 大臂(快换)~小臂大臂(快换)

Length: 1,400 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 6

422-2985

Installation route: 小臂接头(快换)~快换装置

Length: 140 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
