Individual hose record

196-0634 Hose Repair Specifications

Excavator · Caterpillar · CAT®311C · Hydraulic Tank

Finished length505 mm

Locate this hose

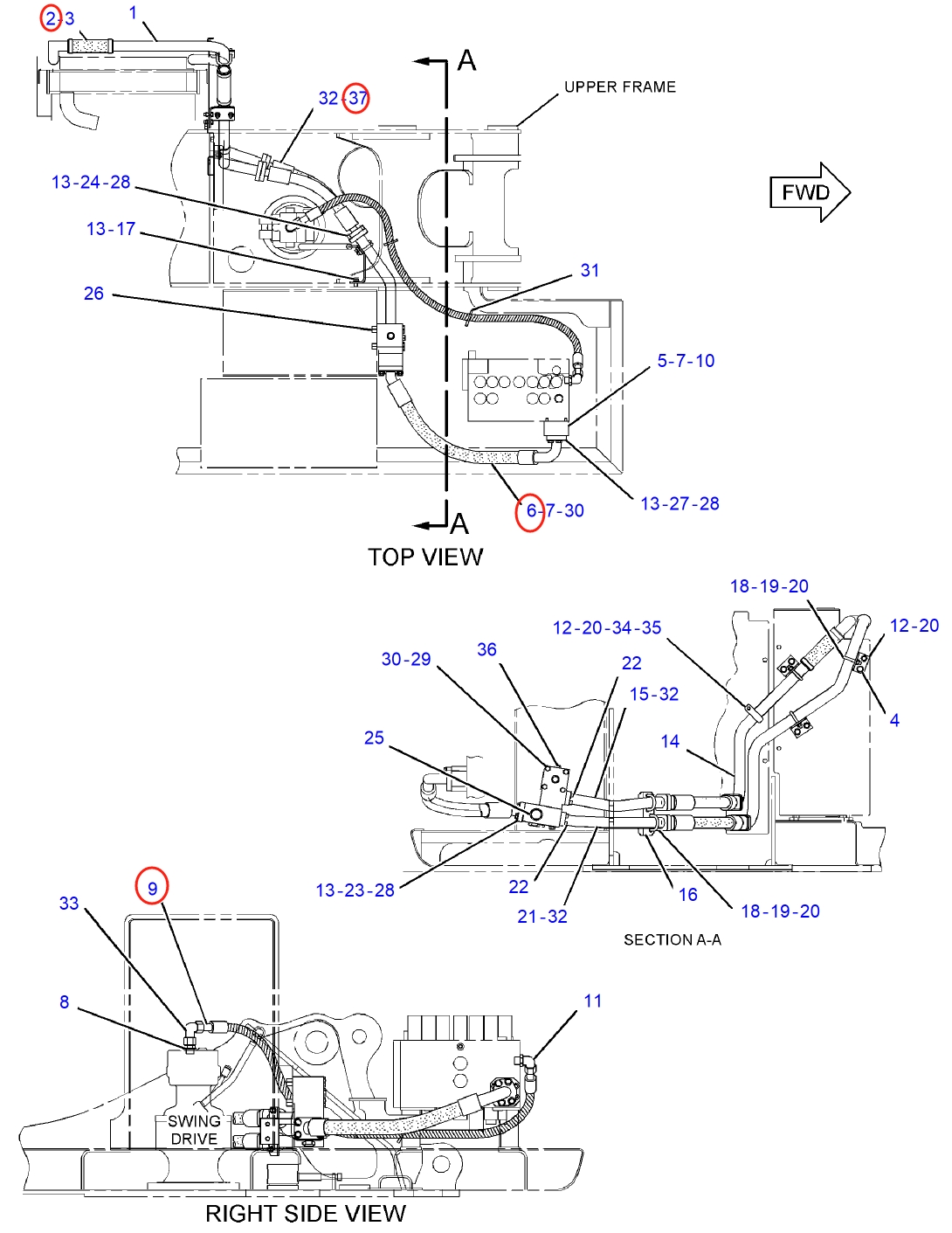

Installation diagram — Pipe No. 37

Locate Pipe No. 37 in the diagram, then confirm part number 196-0634 before removing the hose.

Caterpillar CAT®311C installation diagram showing hydraulic hose 196-0634 at Pipe No. 37 — Caterpillar CAT®311CPart 196-0634 · Pipe No. 37Open full-size diagram

Repair specifications

Part number: 196-0634
Diagram pipe number: 37
Installation route: 回油阀块(液压油箱前)~液压油散热器
Hose specification: DN32;1SN-20;4.3Mpa
Finished length: 505 mm
Working pressure: 4.3 MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 33

196-0634

Installation route: 回油阀块(液压油箱前)~铁管(连液压油散热器)

Length: 505 mm
Specification: DN32;1SN-20;4.3Mpa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
