Individual hose record
178-5955 Hose Repair Specifications
Excavator · Caterpillar · CAT®313D2 · Hydraulic Pump
Finished length610 mm
Locate this hose

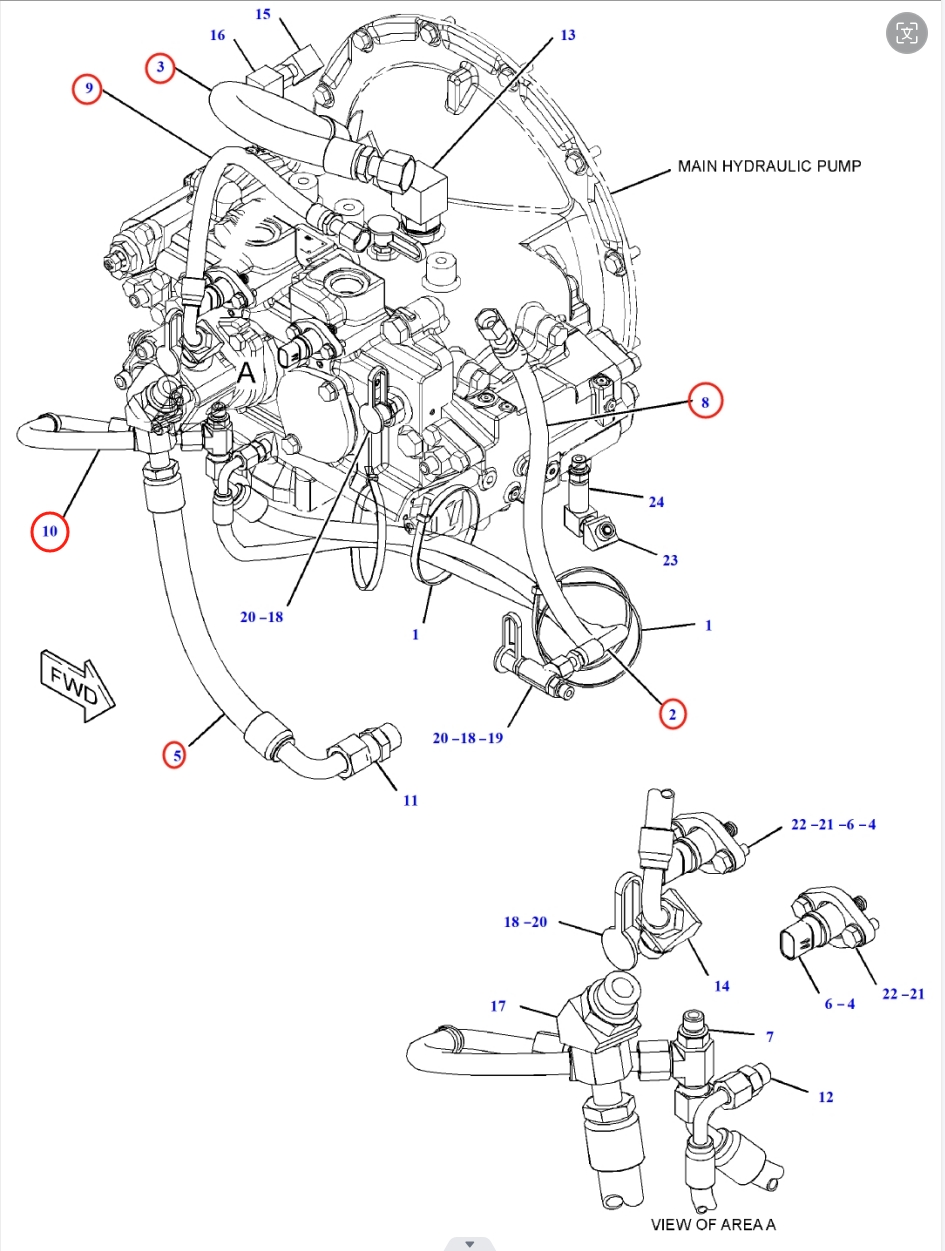

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number 178-5955 before removing the hose.
Repair specifications
- Part number
- 178-5955
- Diagram pipe number
- 3
- Installation route
- 液压泵~液压油过滤器
- Hose specification
- DN19;1SN-12;8.7Mpa
- Finished length
- 610 mm
- Working pressure
- 8.7 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
