Individual hose record

559-3077 Hose Repair Specifications

Excavator · Caterpillar · CAT®315 GC · Grease Lines

Finished length1,660 mm

Locate this hose

Installation diagram — Pipe No. 11

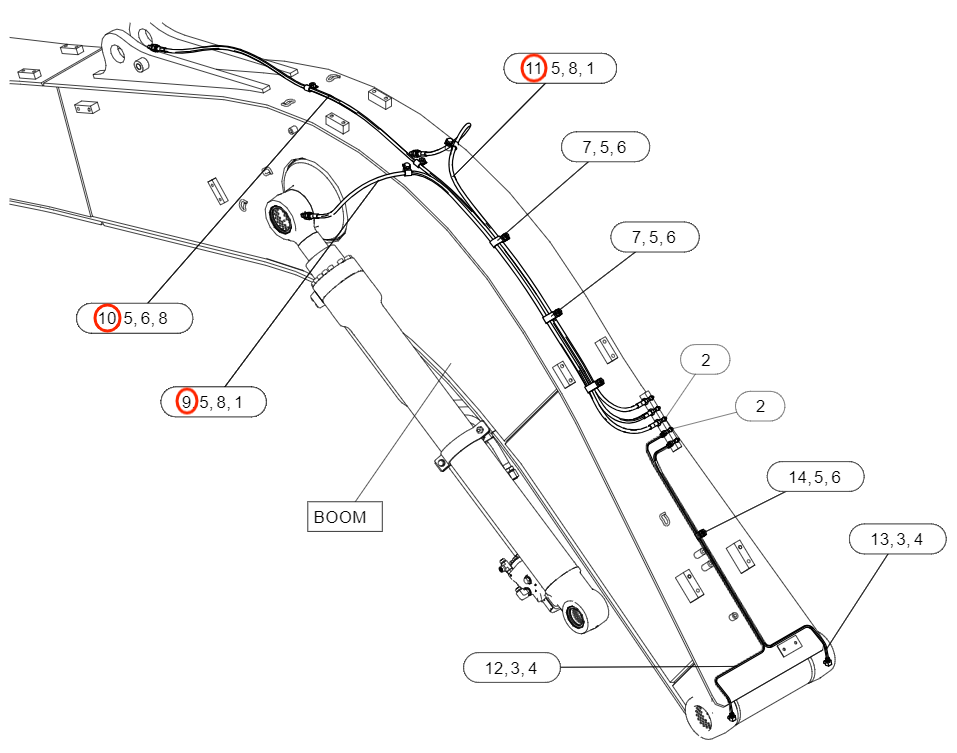

Locate Pipe No. 11 in the diagram, then confirm part number 559-3077 before removing the hose.

Caterpillar CAT®315 GC installation diagram showing hydraulic hose 559-3077 at Pipe No. 11
Caterpillar CAT®315 GCPart 559-3077 · Pipe No. 11Open full-size diagram

Repair specifications

Part number
559-3077
Diagram pipe number
11
Installation route
Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管
Hose specification
DN6;-4;10.3Mpa
Finished length
1,660 mm
Working pressure
10.3 MPa
Left fitting
美制锥形外螺纹
Right fitting
美制锥形外螺纹30°内锥
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 10

559-3076

Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管

Length
2,400 mm
Specification
DN6;-4;10.3Mpa
Left fitting
美制锥形外螺纹30°内锥
Right fitting
美制锥形外螺纹
View full repair specifications

Diagram Pipe No. 9

559-3075

Installation route: Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管

Length
1,700 mm
Specification
DN6;-4;10.3Mpa
Left fitting
美制锥形外螺纹
Right fitting
美制锥形外螺纹30°内锥
View full repair specifications

For reference only. Confirm the actual hose before fabrication.
