Individual hose record
315-0921 Hose Repair Specifications
Excavator · Caterpillar · CAT®315F LCR · Grease Lines
Finished length2,320 mm
Locate this hose

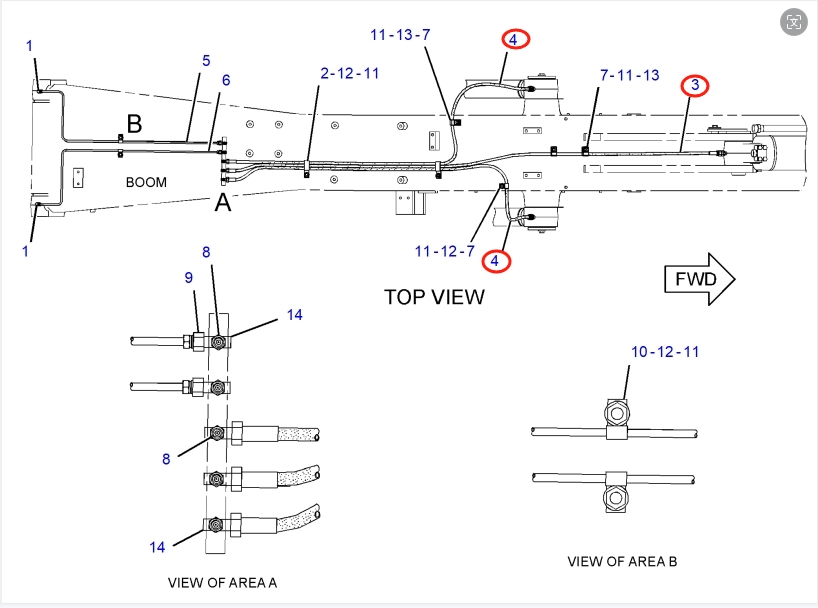

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number 315-0921 before removing the hose.
Repair specifications
- Part number
- 315-0921
- Diagram pipe number
- 3
- Installation route
- Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
- Hose specification
- DN6;-4;10.3Mpa
- Finished length
- 2,320 mm
- Working pressure
- 10.3 MPa
- Left fitting
- 美制锥形外螺纹
- Right fitting
- 美制锥形外螺纹
- Quantity
- 1
