Individual hose record
108-9097 Hose Repair Specifications
Excavator · Caterpillar · CAT®312D L · Grease Lines
Finished length1,520 mm
Locate this hose

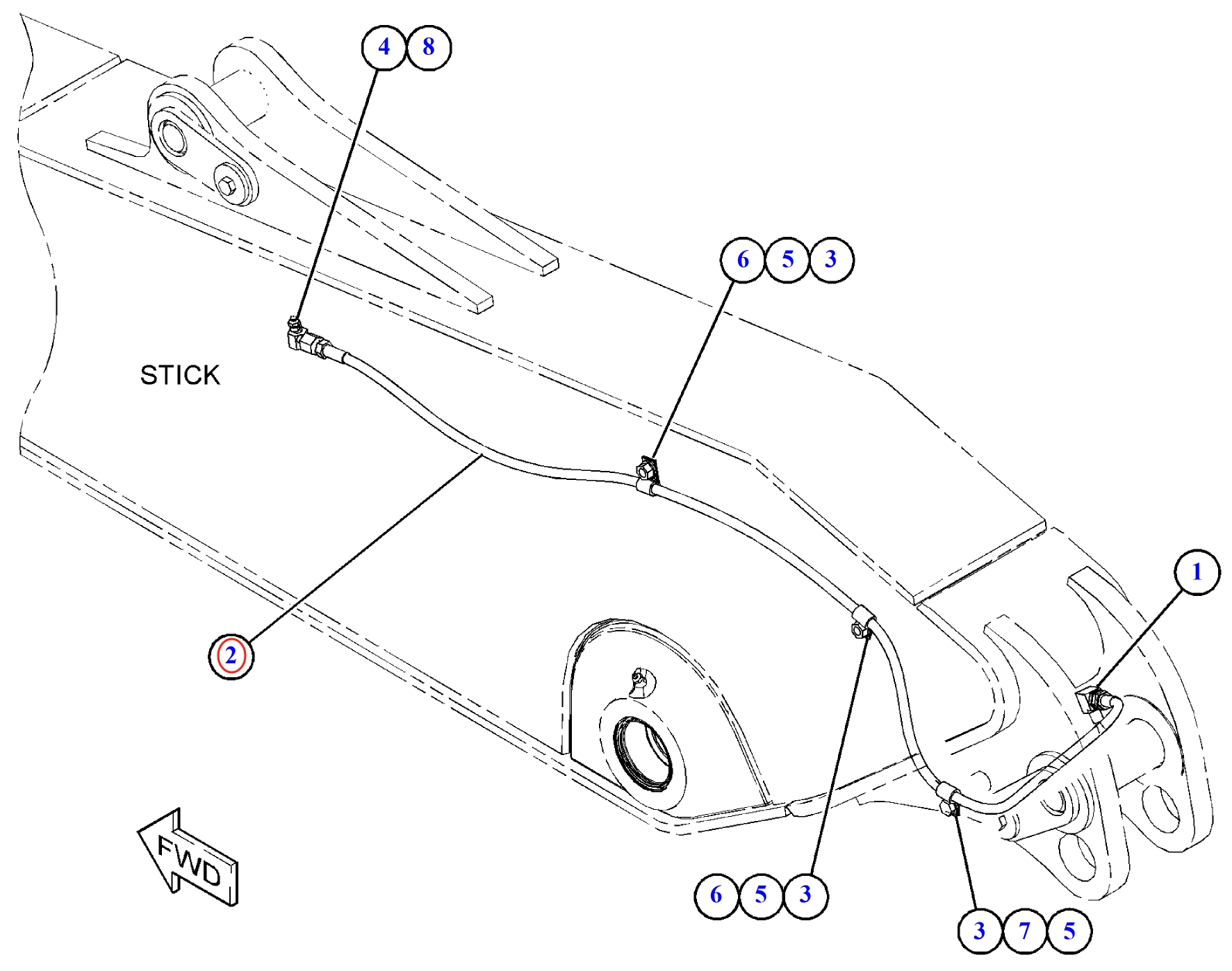

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 108-9097 before removing the hose.
Repair specifications
- Part number
- 108-9097
- Diagram pipe number
- 2
- Installation route
- Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
- Hose specification
- DN6;-4;10.3Mpa
- Finished length
- 1,520 mm
- Working pressure
- 10.3 MPa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
- Quantity
- 1
Same system
Related Hoses
- Length
- 2,000 mm
- Specification
- DN6;-4;10.3Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
Diagram Pipe No. 7
203-7401
Installation route: Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管
- Length
- 2,100 mm
- Specification
- DN6;-4;10.3Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
- Length
- 1,550 mm
- Specification
- DN6;-4;10.3Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
- Length
- 730 mm
- Specification
- DN6;-4;19.2Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
- Length
- 1,900 mm
- Specification
- DN6;-4;10.3Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹30°内锥
- Length
- 625 mm
- Specification
- DN6;-4;19.2Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
- Length
- 2,000 mm
- Specification
- DN6;-4;10.3Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
For reference only. Confirm the actual hose before fabrication.
