Individual hose record

4I-1452 Hose Repair Specifications

Excavator · Caterpillar · CAT®312B L · Attachments

Finished length2,840 mm

Locate this hose

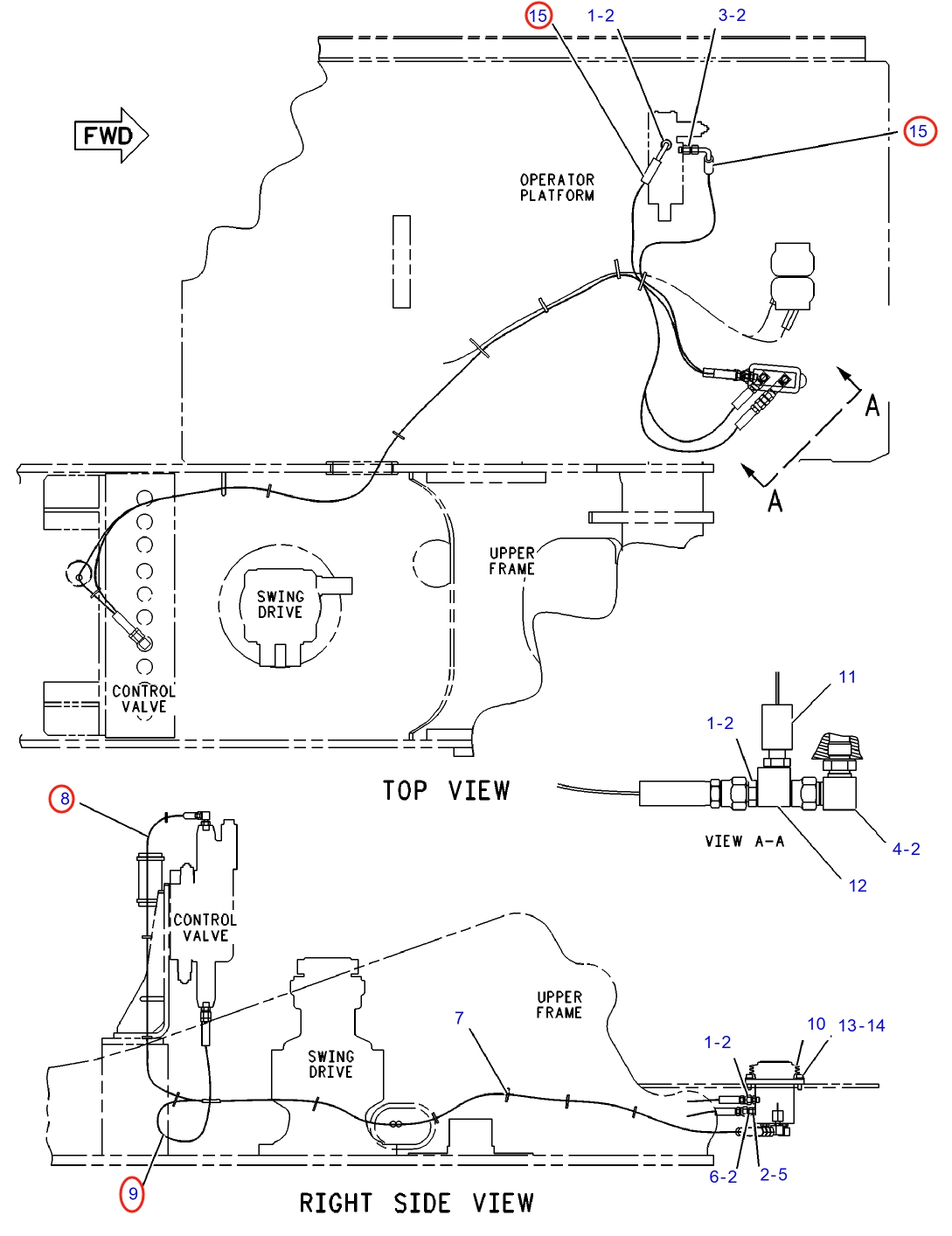

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 4I-1452 before removing the hose.

Caterpillar CAT®312B L installation diagram showing hydraulic hose 4I-1452 at Pipe No. 8 — **Caterpillar CAT®312B L**Part 4I-1452 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 4I-1452
Diagram pipe number: 8
Installation route: 右踏板~分配阀上
Hose specification: DN10;-6;10.3Mpa
Finished length: 2,840 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 13

197-8202

Installation route: 大臂后段(附加装置)~大臂前段(附加装置)

Length: 1,350 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 7

202-0448

Installation route: 过渡阀块(回转接头左)~过渡阀块(分节油缸右)

Length: 2,225 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 7

191-8268

Installation route: 大臂(附加装置)~分配阀前

Length: 965 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 7

161-0004

Installation route: 大臂(附加装置)~分配阀前

Length: 1,050 mm
Specification: DN16;6SH-10;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 12

197-8201

Installation route: 大臂后段附加装置管

Length: 2,105 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 4

129-6498

Installation route: 手动阀(大臂上)~大臂前段铁管

Length: 1,045 mm
Specification: DN25;4SP-16;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 6

160-9993

Installation route: 大臂(附加装置)~分配阀前

Length: 1,500 mm
Specification: DN16;6SH-10;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 6

202-0447

Installation route: 过渡阀块(回转接头左)~过渡阀块(分节油缸左)

Length: 1,235 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
