Individual hose record

307-5022 Hose Repair Specifications

Excavator · Caterpillar · CAT®315F LCR · Attachments

Finished length2,360 mm

Locate this hose

Installation diagram — Pipe No. 11

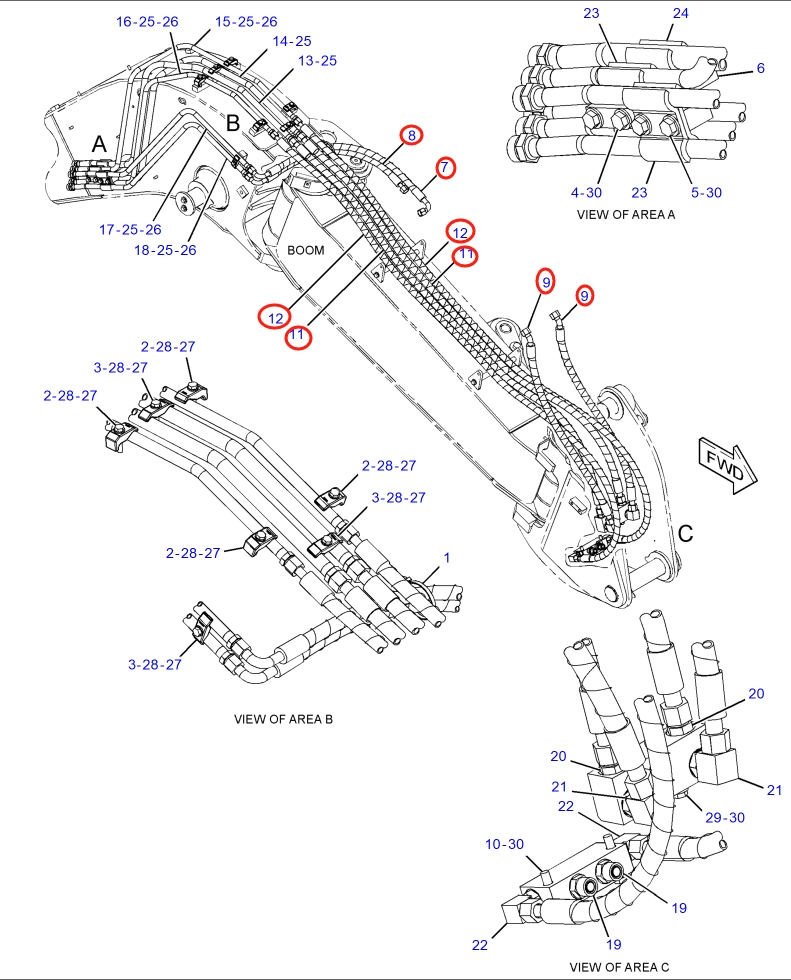

Locate Pipe No. 11 in the diagram, then confirm part number 307-5022 before removing the hose.

Caterpillar CAT®315F LCR installation diagram showing hydraulic hose 307-5022 at Pipe No. 11 — **Caterpillar CAT®315F LCR**Part 307-5022 · Pipe No. 11Open full-size diagram

Repair specifications

Part number: 307-5022
Diagram pipe number: 11
Installation route: 大臂后段(附加装置)~过渡阀块(附加装置)
Hose specification: DN19;6SH-12;42Mpa
Finished length: 2,360 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 7

372-9837

Installation route: 大臂(附加装置)~小臂(附加装置)

Length: 1,290 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 3

416-1796

Installation route: 大臂(附加装置)~过渡阀块(大臂后段左侧)

Length: 1,780 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 9

372-9662

Installation route: 推土铲手柄~控制阀(回转马达左前)

Length: 2,240 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 2

416-1792

Installation route: 大臂(附加装置)~过渡阀块(大臂后段左侧)

Length: 1,700 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 7

393-1251

Installation route: 中转接头~梭阀(驾驶室)

Length: 330 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

4I-5900

Installation route: 踏板(附加装置)~进回油阀

Length: 900 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 8

382-7076

Installation route: 大臂(附加装置)~小臂(附加装置)

Length: 1,680 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 4

416-4388

Installation route: 大臂(附加装置)~控制阀(回转马达左)

Length: 3,110 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
