Individual hose record
351-3943 Hose Repair Specifications
Excavator · Caterpillar · CAT®313F · Engine Oil Lines
Finished length764 mm
Locate this hose

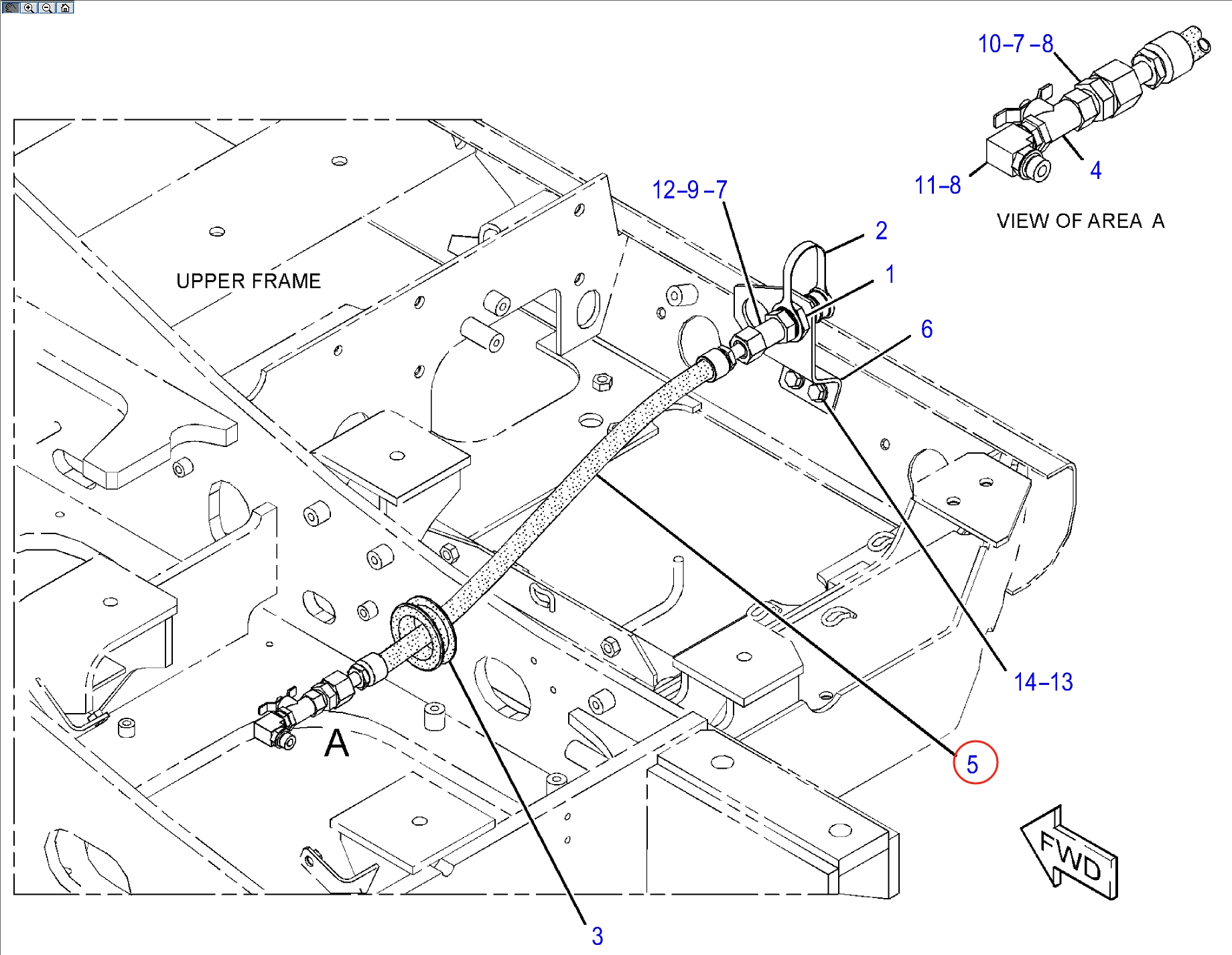

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 351-3943 before removing the hose.
Repair specifications
- Part number
- 351-3943
- Diagram pipe number
- 5
- Installation route
- 油底壳排油管
- Hose specification
- DN16;1SN-10;10.5Mpa
- Finished length
- 764 mm
- Working pressure
- 10.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
