Individual hose record

7I-0927 Hose Repair Specifications

Excavator · Caterpillar · CAT®317-A · Swing Motor

Finished length1,450 mm

Locate this hose

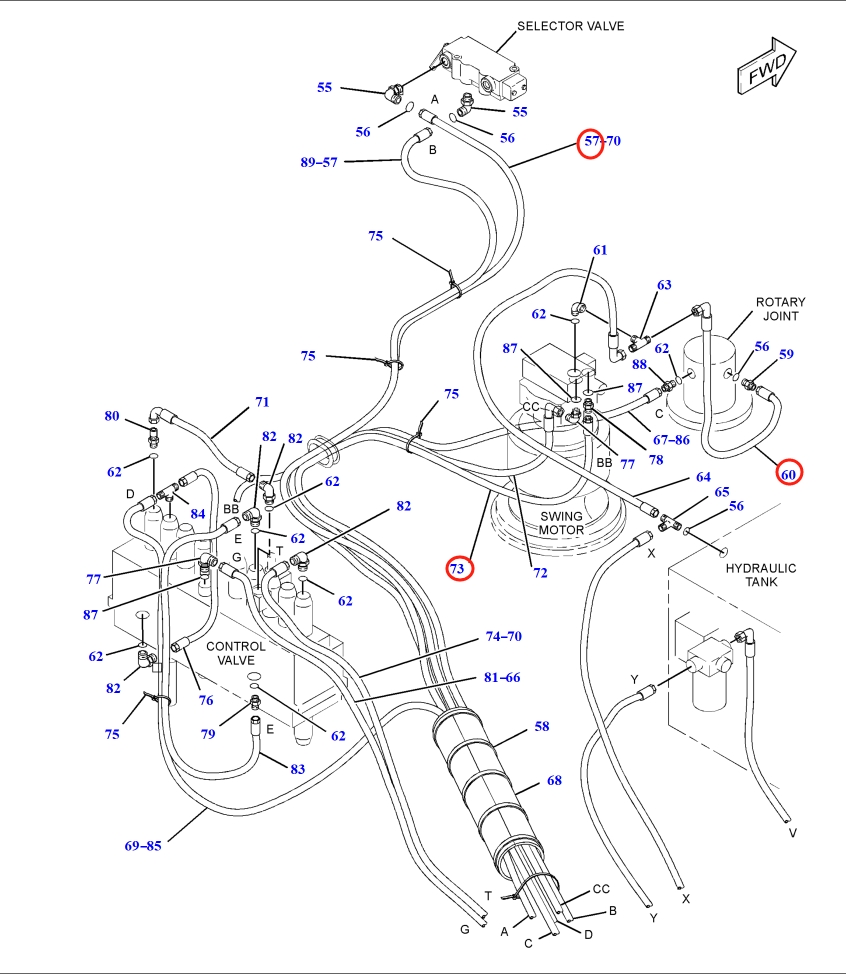

Installation diagram — Pipe No. 73

Locate Pipe No. 73 in the diagram, then confirm part number 7I-0927 before removing the hose.

Caterpillar CAT®317-A installation diagram showing hydraulic hose 7I-0927 at Pipe No. 73 — Caterpillar CAT®317-APart 7I-0927 · Pipe No. 73Open full-size diagram

Repair specifications

Part number: 7I-0927
Diagram pipe number: 73
Installation route: 回转马达~蓄能器电磁阀
Hose specification: DN6;-4;10.3Mpa
Finished length: 1,450 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 79

111-6505

Installation route: 回转马达~蓄能器电磁阀

Length: 2,300 mm
Specification: DN6;-4;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
