Individual hose record
7I-0181 Hose Repair Specifications
Excavator · Caterpillar · CAT®317-A · Control Valve
Finished length1,250 mm
Locate this hose

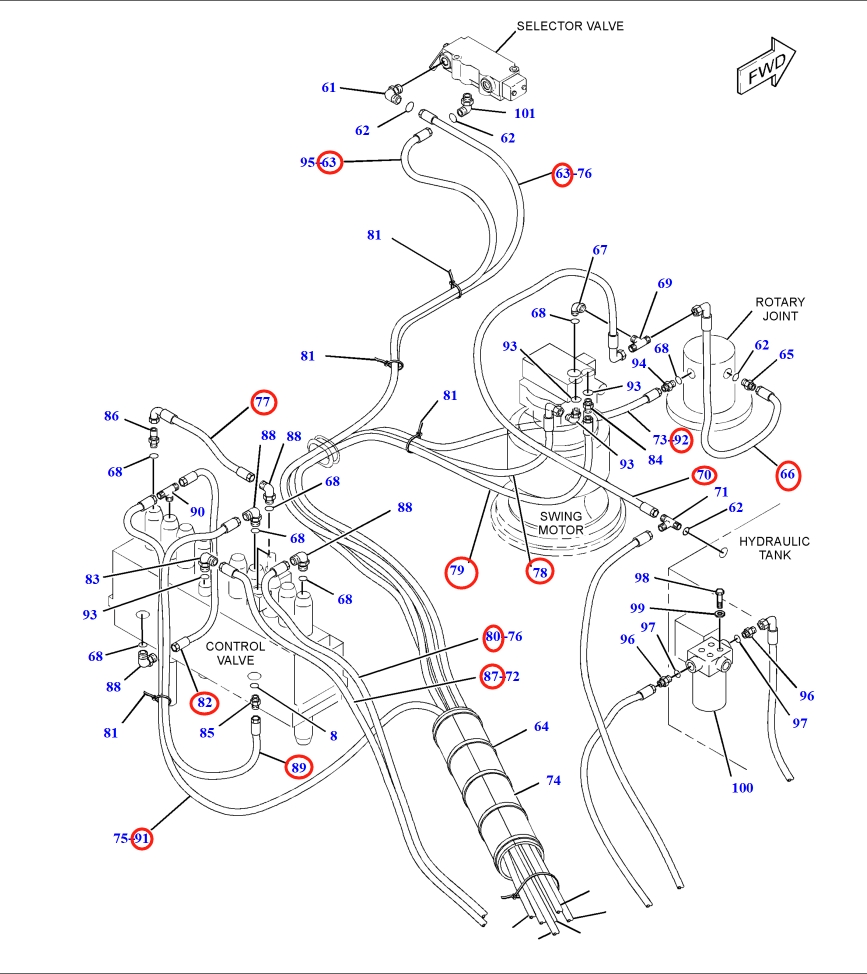

Installation diagram — Pipe No. 89
Locate Pipe No. 89 in the diagram, then confirm part number 7I-0181 before removing the hose.
Repair specifications
- Part number
- 7I-0181
- Diagram pipe number
- 89
- Installation route
- 分配阀上~分配阀下
- Hose specification
- DN10;-6;10.3Mpa
- Finished length
- 1,250 mm
- Working pressure
- 10.3 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 730 mm
- Specification
- DN10;-6;10.3Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 1,470 mm
- Specification
- DN6;-4;19.2Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 1,400 mm
- Specification
- DN6;2SN-4;40Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 1,250 mm
- Specification
- DN10;-6;10.3Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 2,100 mm
- Specification
- DN10;-6;10.3Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 1,050 mm
- Specification
- DN10;-6;10.3Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 1,850 mm
- Specification
- DN6;-4;10.3Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
For reference only. Confirm the actual hose before fabrication.
