Individual hose record

481-6561 Hose Repair Specifications

Excavator · Caterpillar · CAT®M315F · Attachments – Quick Coupler

Finished length262 mm

Locate this hose

Installation diagram — Pipe No. 23

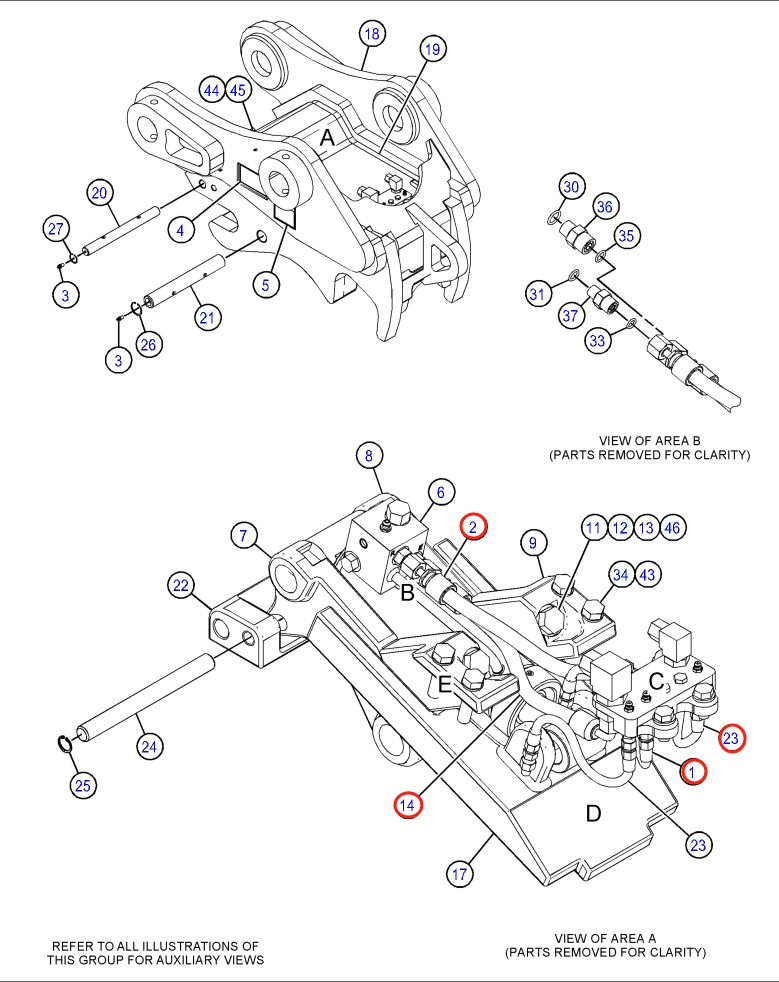

Locate Pipe No. 23 in the diagram, then confirm part number 481-6561 before removing the hose.

Caterpillar CAT®M315F installation diagram showing hydraulic hose 481-6561 at Pipe No. 23 — Caterpillar CAT®M315FPart 481-6561 · Pipe No. 23Open full-size diagram

Repair specifications

Part number: 481-6561
Diagram pipe number: 23
Installation route: 快换装置管路
Hose specification: DN3;-2;0Mpa
Finished length: 262 mm
Working pressure: 0 MPa
Left fitting: 美制锥形外螺纹30°内锥
Right fitting: 美制锥形外螺纹30°内锥
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 1

394-9473

Installation route: 快换装置管路

Length: 318 mm
Specification: DN3;-2;0Mpa
Left fitting: 美制锥形外螺纹30°内锥
Right fitting: 美制锥形外螺纹30°内锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
