Individual hose record

108-7562 Hose Repair Specifications

Excavator · Caterpillar · CAT®316F L · Attachments

Finished length1,100 mm

Locate this hose

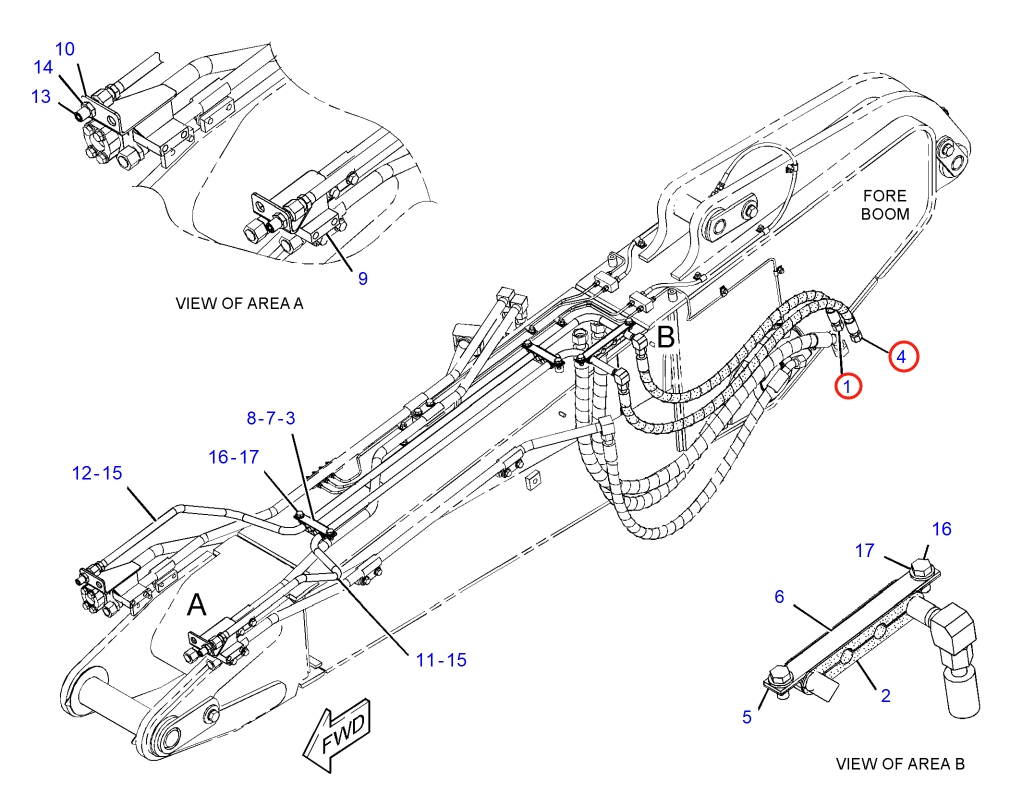

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 108-7562 before removing the hose.

Caterpillar CAT®316F L installation diagram showing hydraulic hose 108-7562 at Pipe No. 1 — **Caterpillar CAT®316F L**Part 108-7562 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 108-7562
Diagram pipe number: 1
Installation route: 大臂(附加装置)~小臂(附加装置)
Hose specification: DN16;4SP-10;28Mpa
Finished length: 1,100 mm
Working pressure: 28 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 4

361-6842

Installation route: 踏板(附加装置)~分配阀上

Length: 3,380 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 3

173-7864

Installation route: 大臂(附加装置)~小臂(附加装置)

Length: 1,800 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

4I-6003

Installation route: 踏板(附加装置)~分配阀上

Length: 2,650 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 2

370-0298

Installation route: 大臂后段附加装置管

Length: 2,470 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 4

262-3538

Installation route: 大臂(附加装置)~过渡阀块(附加装置)

Length: 1,220 mm
Specification: DN25;6SH-16;42Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 4

370-8863

Installation route: 大臂(附加装置)~小臂(附加装置)

Length: 1,260 mm
Specification: DN16;4SP-10;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

197-2299

Installation route: 大臂(附加装置)~过渡阀块(附加装置)

Length: 1,220 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 5

361-8966

Installation route: 大臂(附加装置)~控制阀(回转接头左前)

Length: 1,540 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
