Individual hose record

5I-3127 Hose Repair Specifications

Excavator · Caterpillar · CAT®315-A L · Swivel Joint

Finished length1,900 mm

Locate this hose

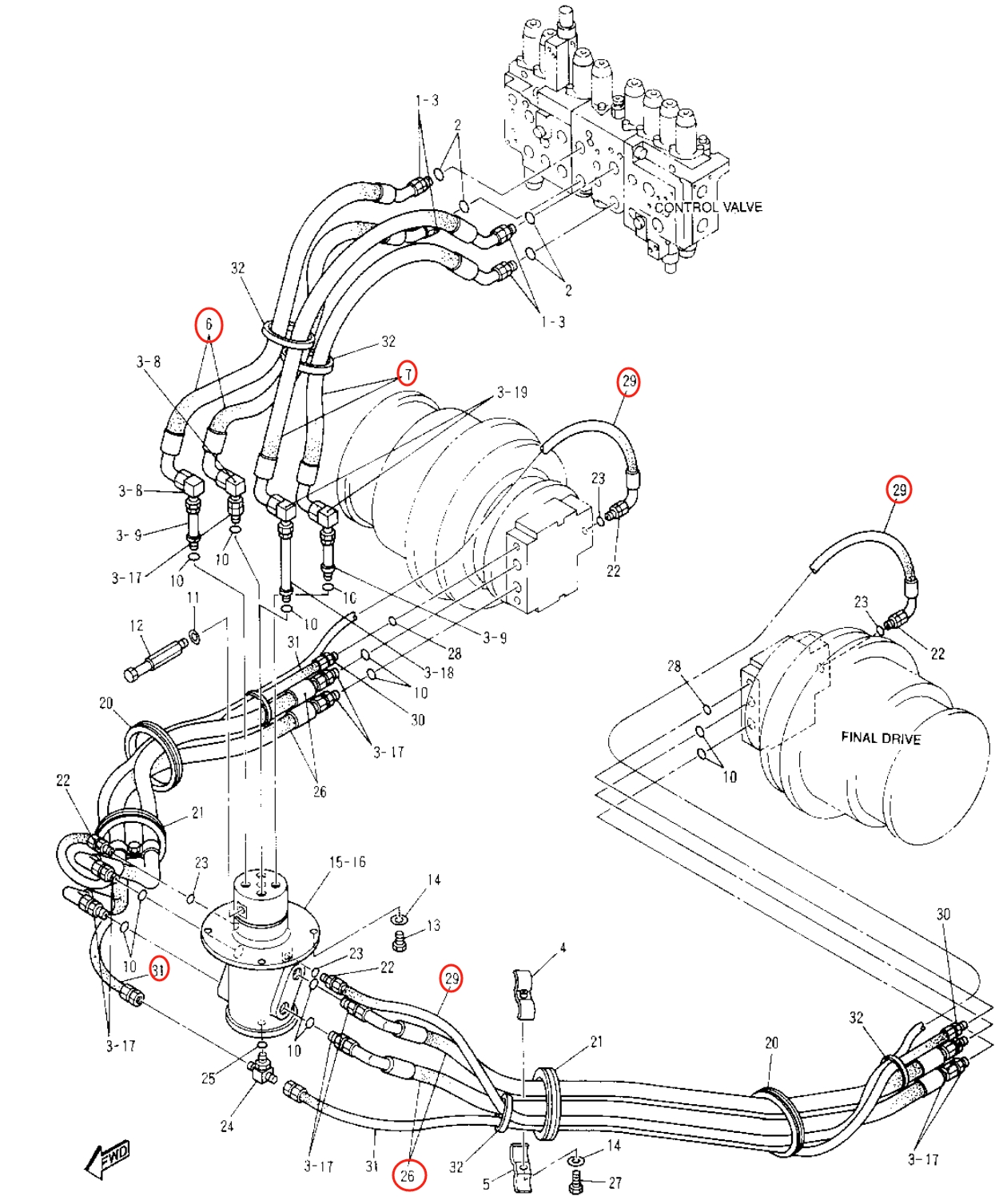

Installation diagram — Pipe No. 31

Locate Pipe No. 31 in the diagram, then confirm part number 5I-3127 before removing the hose.

Caterpillar CAT®315-A L installation diagram showing hydraulic hose 5I-3127 at Pipe No. 31 — Caterpillar CAT®315-A LPart 5I-3127 · Pipe No. 31Open full-size diagram

Repair specifications

Part number: 5I-3127
Diagram pipe number: 31
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification: DN10;-6;10.3Mpa
Finished length: 1,900 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 32

7I-0918

Installation route: 回转接头~蓄能器电磁阀(液压油箱右后)

Length: 2,000 mm
Specification: DN6;-4;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
