Individual hose record
4I-3981 Hose Repair Specifications
Excavator · Caterpillar · CAT®317B LN · Solenoid Valve
Finished length2,750 mm
Locate this hose

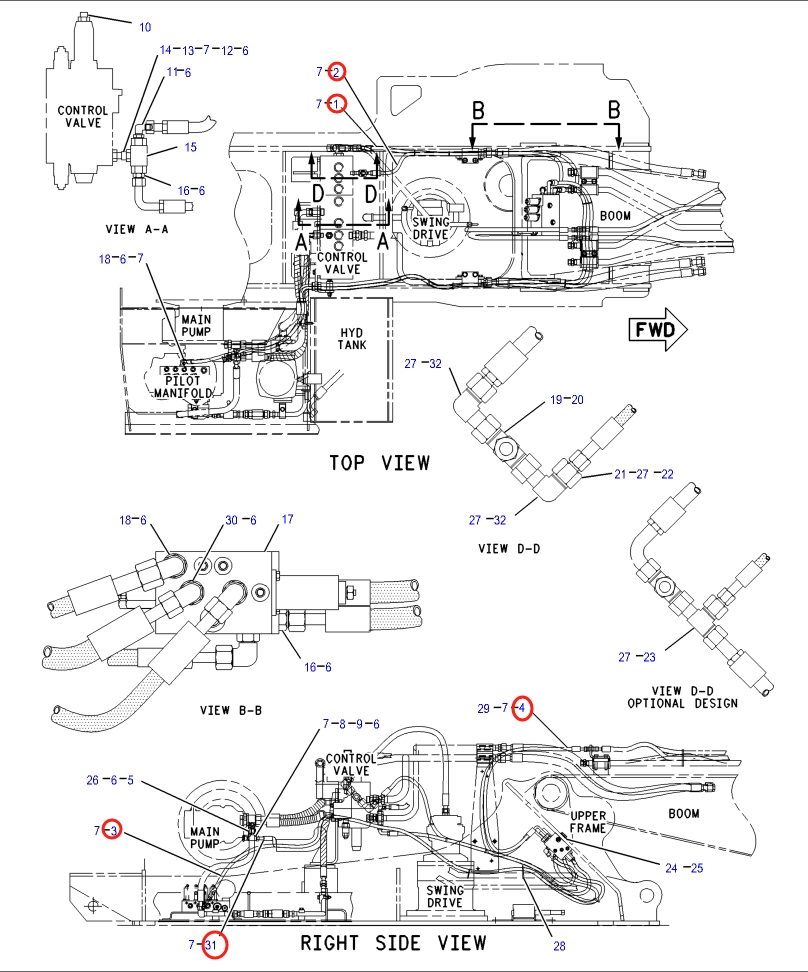

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number 4I-3981 before removing the hose.
Repair specifications
- Part number
- 4I-3981
- Diagram pipe number
- 3
- Installation route
- 蓄能器电磁阀~
- Hose specification
- DN10;1SN-6;10.4Mpa
- Finished length
- 2,750 mm
- Working pressure
- 10.4 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
