Individual hose record

178-8830 Hose Repair Specifications

Excavator · Caterpillar · CAT®M315F · Swivel Joint

Finished length1,500 mm

Locate this hose

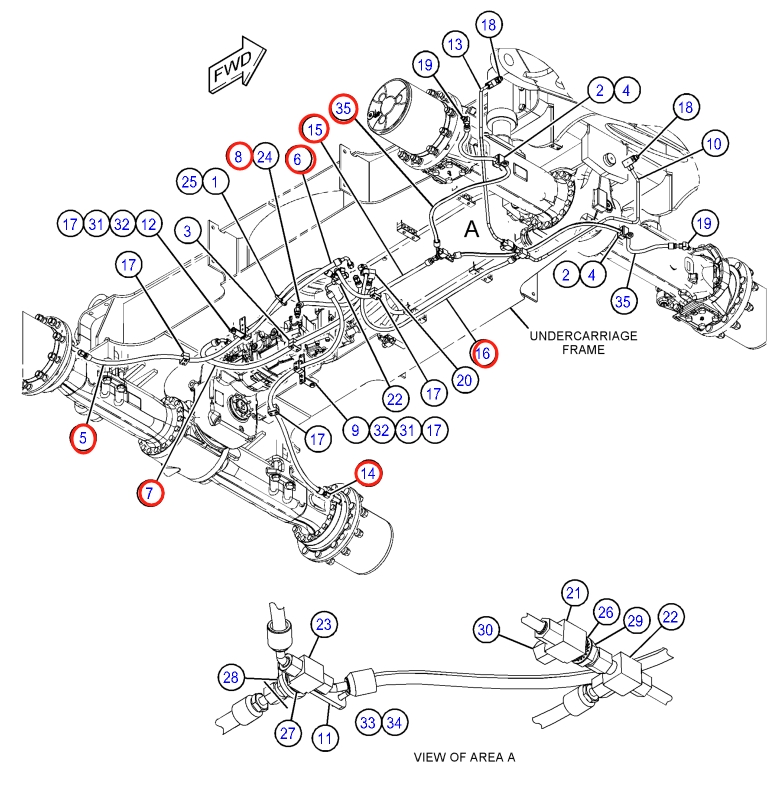

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number 178-8830 before removing the hose.

Part number: 178-8830
Diagram pipe number: 5
Installation route: 回转接头~后传动轴
Hose specification: DN10;1SN-6;15.7Mpa
Finished length: 1,500 mm
Working pressure: 15.7 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 3

Installation route: 回转接头~过渡接头

Length: 550 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 8

Installation route: 回转接头~电磁阀(连接回转接头)

Length: 1,750 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
