Individual hose record
8U-4703 Hose Repair Specifications
Excavator · Caterpillar · CAT®205B · Control Valve
Finished length2,756 mm
Locate this hose

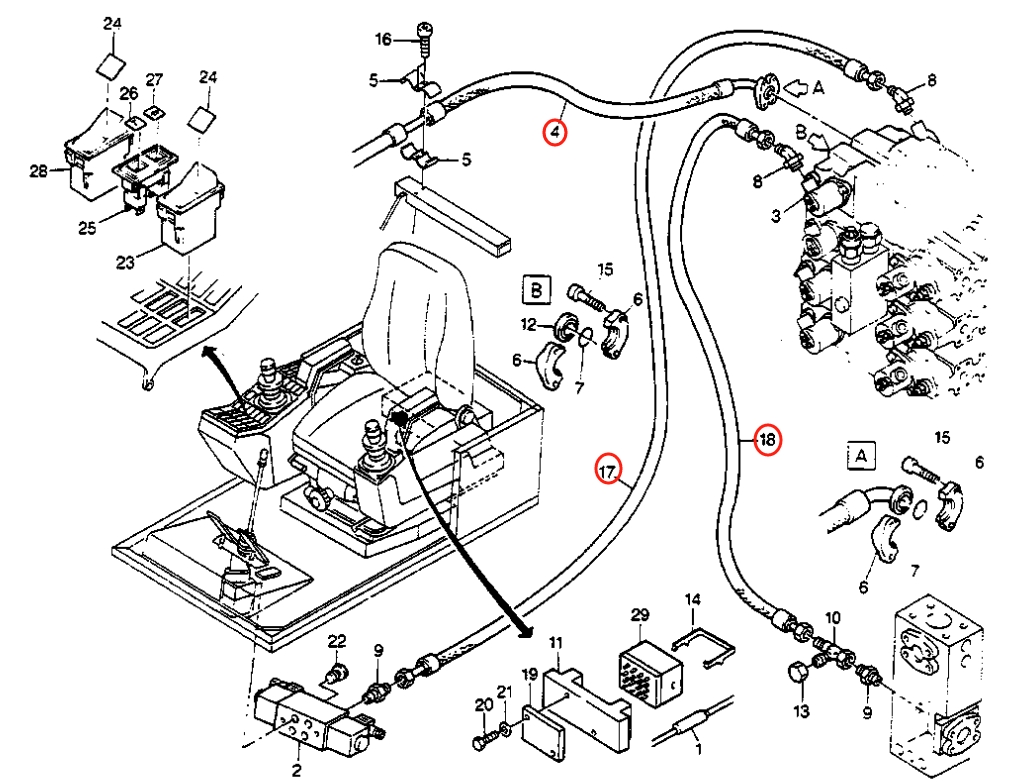

Installation diagram — Pipe No. 17
Locate Pipe No. 17 in the diagram, then confirm part number 8U-4703 before removing the hose.
Repair specifications
- Part number
- 8U-4703
- Diagram pipe number
- 17
- Installation route
- 分配阀后~电磁阀
- Hose specification
- DN8;-5;17.5Mpa
- Finished length
- 2,756 mm
- Working pressure
- 17.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
