7I-0175 Hose Repair Specifications

Excavator · Caterpillar · CAT®315-A · Swivel Joint

Finished length1,800 mm

Locate this hose

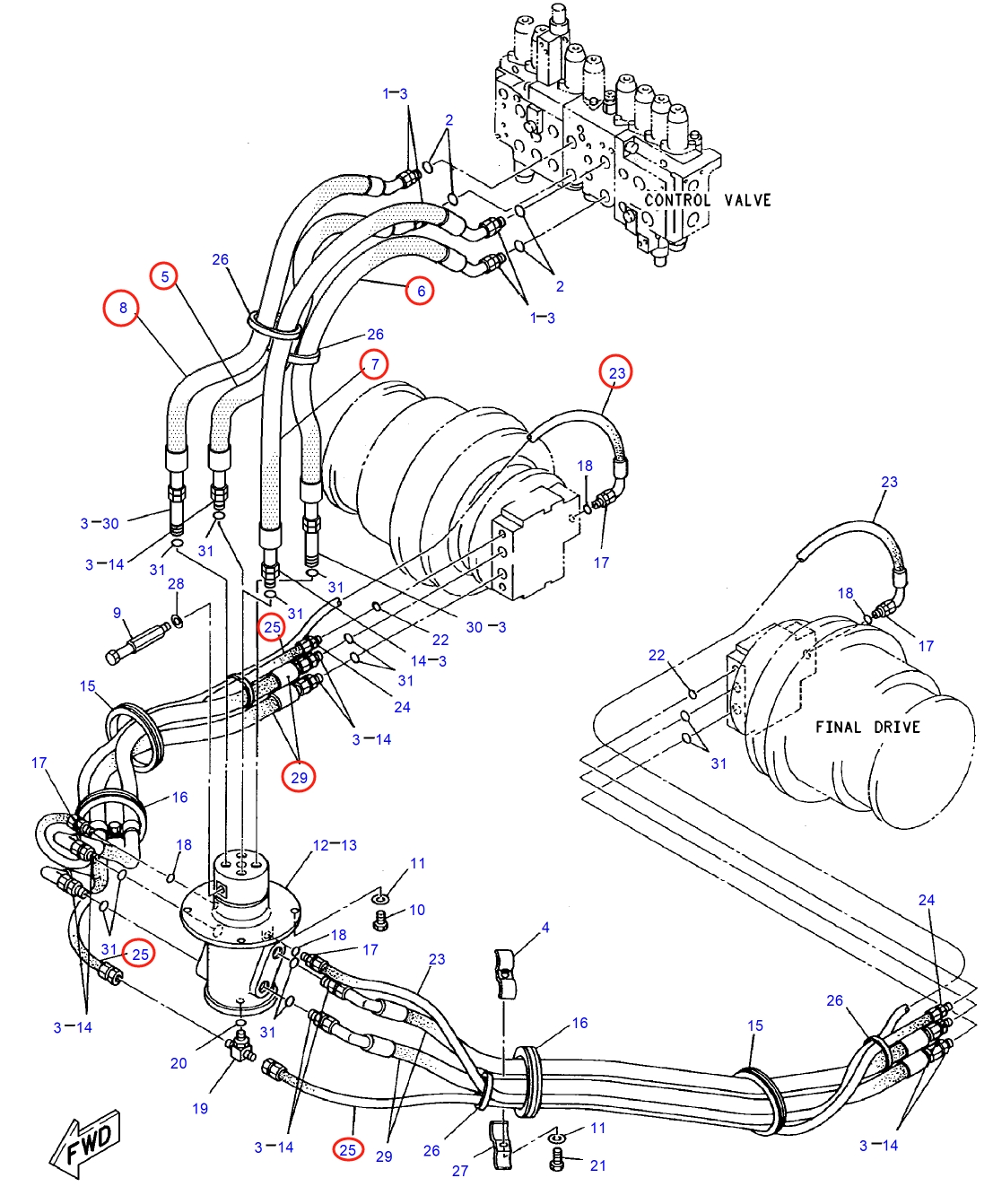

Installation diagram — Pipe No. 25

Locate Pipe No. 25 in the diagram, then confirm part number 7I-0175 before removing the hose.

Caterpillar CAT®315-A installation diagram showing hydraulic hose 7I-0175 at Pipe No. 25 — Caterpillar CAT®315-APart 7I-0175 · Pipe No. 25Open full-size diagram

Repair specifications

Part number: 7I-0175
Diagram pipe number: 25
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification: DN10;-6;10.3Mpa
Finished length: 1,800 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 92

121-6433

Installation route: 回转接头~蓄能器电磁阀(液压油箱后)

Length: 1,900 mm
Specification: DN6;-4;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 86

7I-0918

Installation route: 回转接头~蓄能器电磁阀(液压油箱后)

Length: 2,000 mm
Specification: DN6;-4;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
