Individual hose record
123-2636 Hose Repair Specifications
Excavator · Caterpillar · CAT®312-A · Attachments – Lock Valve
Finished length760 mm
Locate this hose

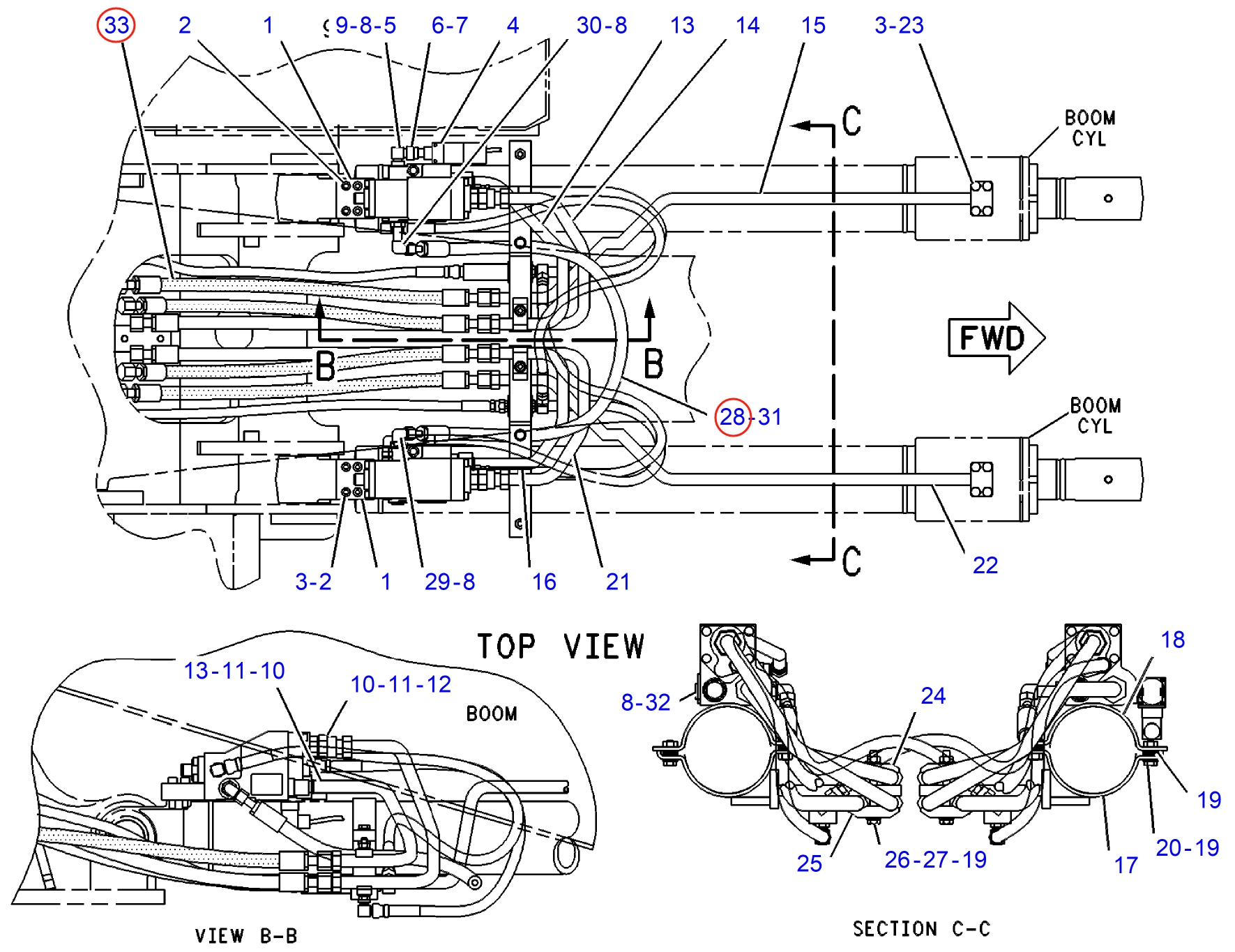

Installation diagram — Pipe No. 33
Locate Pipe No. 33 in the diagram, then confirm part number 123-2636 before removing the hose.
Repair specifications
- Part number
- 123-2636
- Diagram pipe number
- 33
- Installation route
- 过渡接头(大臂油缸锁止阀)~过渡阀块(大臂油缸锁止阀)
- Hose specification
- DN16;6SH-10;42Mpa
- Finished length
- 760 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 4
