Individual hose record

6I-6755 Hose Repair Specifications

Excavator · Caterpillar · CAT®307 · Pedal

Finished length700 mm

Locate this hose

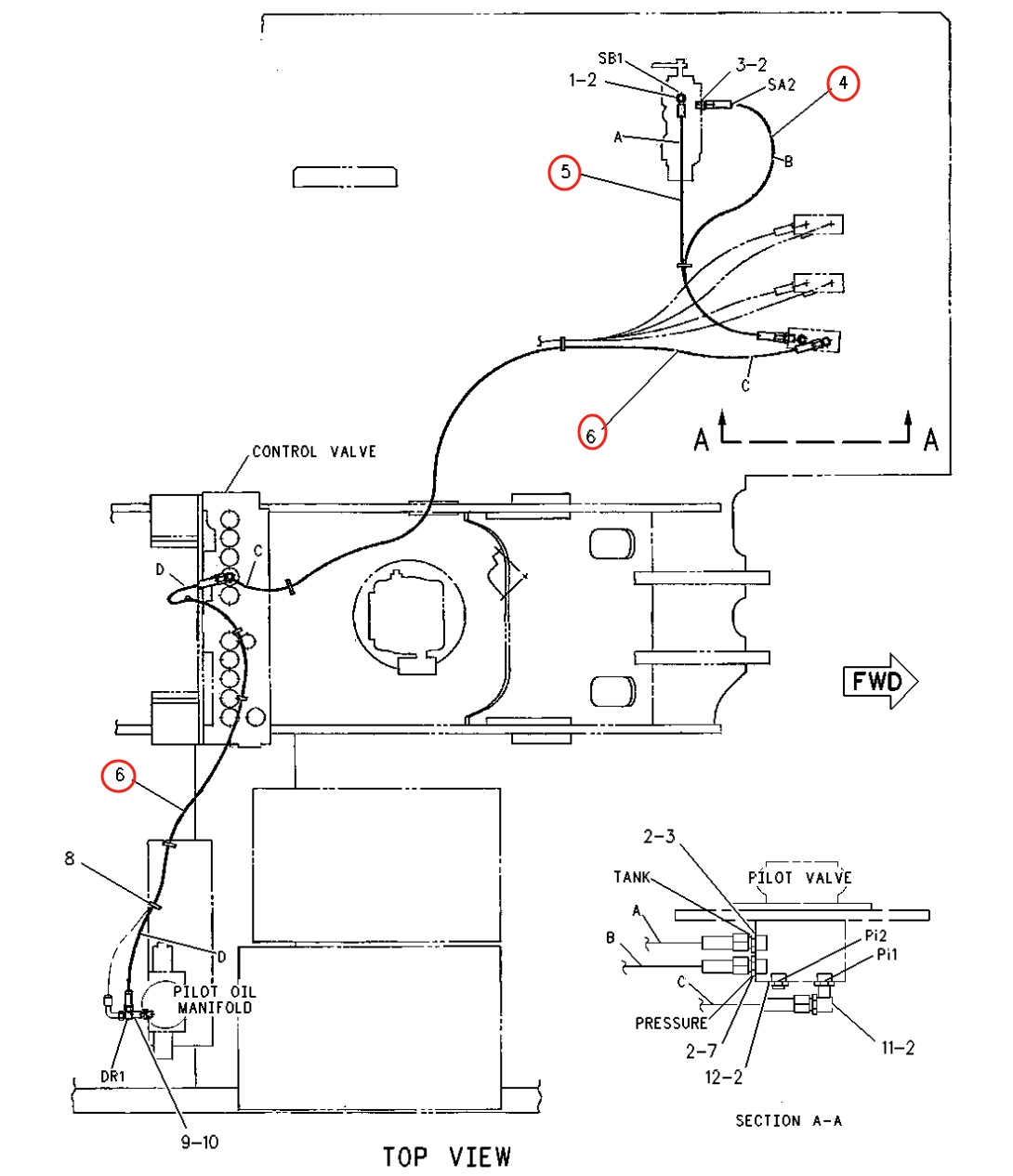

Installation diagram — Pipe No. 4

Locate Pipe No. 4 in the diagram, then confirm part number 6I-6755 before removing the hose.

Caterpillar CAT®307 installation diagram showing hydraulic hose 6I-6755 at Pipe No. 4
Caterpillar CAT®307Part 6I-6755 · Pipe No. 4Open full-size diagram

Repair specifications

Part number
6I-6755
Diagram pipe number
4
Installation route
行走踏板~进回油阀
Hose specification
DN6;-4;10.3Mpa
Finished length
700 mm
Working pressure
10.3 MPa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
Quantity
1

Same system

Related Hoses

For reference only. Confirm the actual hose before fabrication.
