185-6791 Hose Repair Specifications

Excavator · Caterpillar · CAT®M317F · Attachments

Finished length3,760 mm

Locate this hose

Installation diagram — Pipe No. 3

Locate Pipe No. 3 in the diagram, then confirm part number 185-6791 before removing the hose.

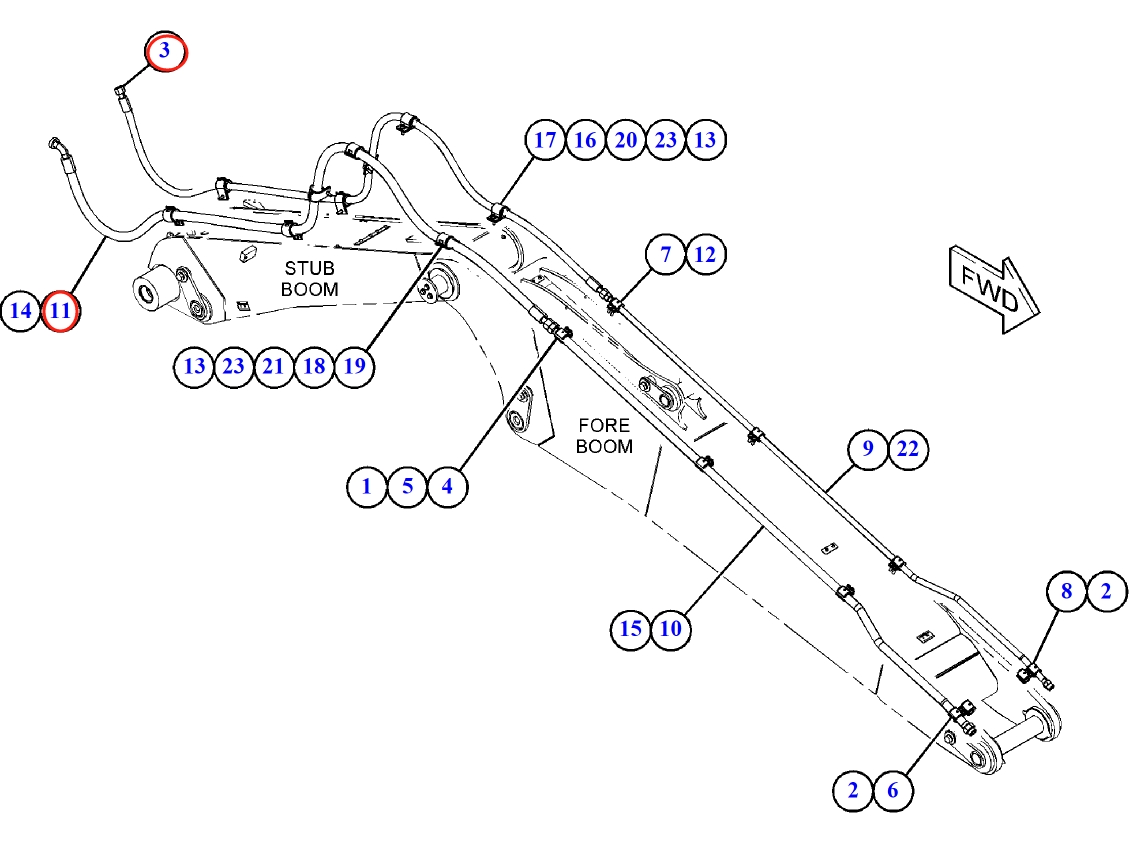

Caterpillar CAT®M317F installation diagram showing hydraulic hose 185-6791 at Pipe No. 3 — **Caterpillar CAT®M317F**Part 185-6791 · Pipe No. 3Open full-size diagram

Repair specifications

Part number: 185-6791
Diagram pipe number: 3
Installation route: 大臂辅助管路
Hose specification: DN19;6SH-12;42Mpa
Finished length: 3,760 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 19

218-0574

Installation route: 先导阀(分配阀左前)

Length: 1,600 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 25

441-1149

Installation route: 阀块(驾驶室)~过渡阀块(分配阀左前)

Length: 1,230 mm
Specification: DN13;1SN-8;14Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 16

383-1284

Installation route: 大臂(前段)~大臂(后段)

Length: 4,680 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 16

164-6930

Installation route: 先导阀(分配阀左前)

Length: 832 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 4

141-9888

Installation route: 风扇泵~液压油箱

Length: 2,080 mm
Specification: DN13;2SN-8;27.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 12

389-6908

Installation route: 大臂(前段)~大臂(后段)

Length: 2,530 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 13

464-4946

Installation route: 大臂(前段)~大臂(后段)

Length: 2,530 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 17

201-0536

Installation route: 先导阀(分配阀左前)

Length: 1,580 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
