Individual hose record
269-9714 Hose Repair Specifications
Excavator · Caterpillar · CAT®313D2 LGP · Hydraulic Tank
Finished length420 mm
Locate this hose

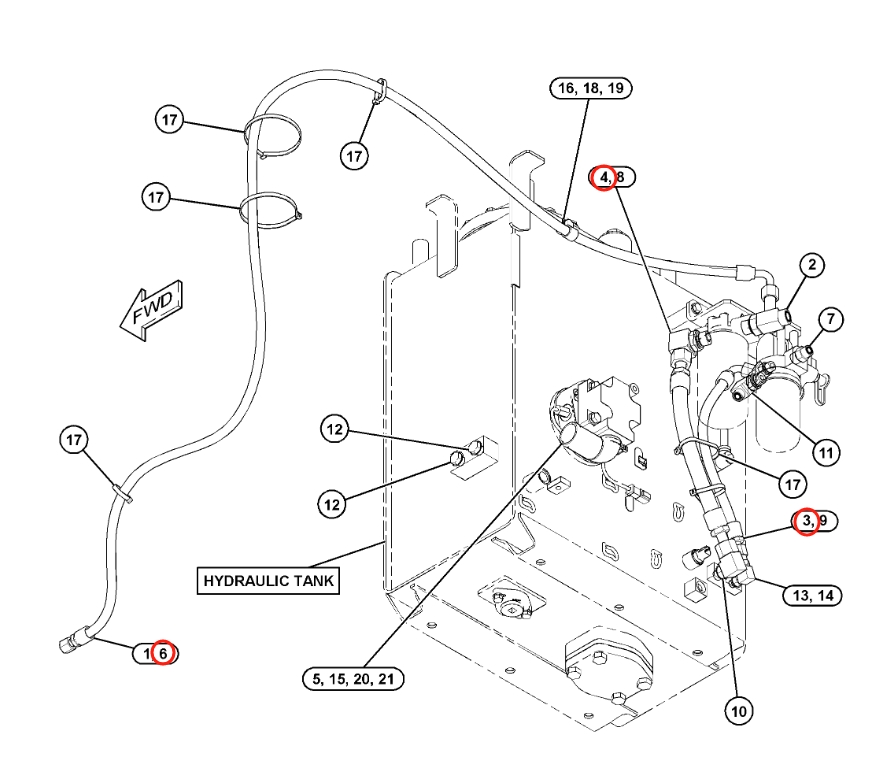

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number 269-9714 before removing the hose.
Repair specifications
- Part number
- 269-9714
- Diagram pipe number
- 4
- Installation route
- 液压油箱~液压油过滤器
- Hose specification
- DN19;1SN-12;8.7Mpa
- Finished length
- 420 mm
- Working pressure
- 8.7 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
