Individual hose record

351-5091 Hose Repair Specifications

Excavator · Caterpillar · CAT®316F L · Attachments – Quick Coupler

Finished length2,670 mm

Locate this hose

Installation diagram — Pipe No. 23

Locate Pipe No. 23 in the diagram, then confirm part number 351-5091 before removing the hose.

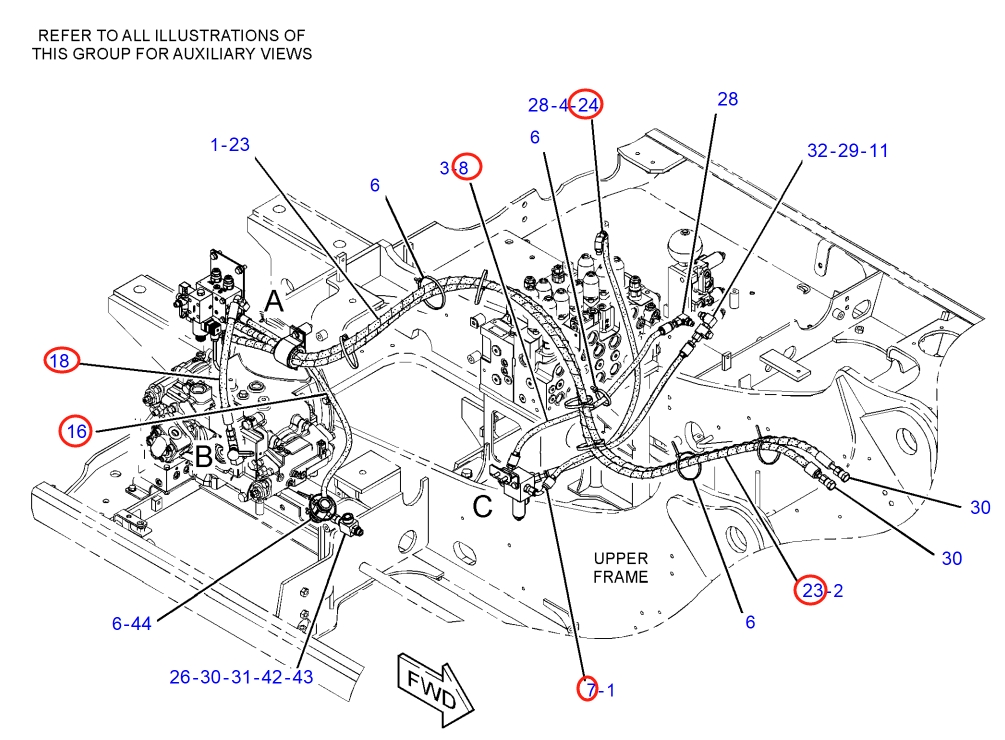

Caterpillar CAT®316F L installation diagram showing hydraulic hose 351-5091 at Pipe No. 23 — **Caterpillar CAT®316F L**Part 351-5091 · Pipe No. 23Open full-size diagram

Repair specifications

Part number: 351-5091
Diagram pipe number: 23
Installation route: 大臂(快换)~控制阀(液压泵上)
Hose specification: DN10;6SH-6;42Mpa
Finished length: 2,670 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 15

350-0840

Installation route: 大臂(快换)~分配阀前

Length: 1,010 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 8

113-6726

Installation route: 快速联轴阀~蓄能器电磁阀

Length: 720 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 2

210-9966

Installation route: 大臂(快换)~小臂(快换)

Length: 1,500 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 2

371-0140

Installation route: 大臂前段(快换)~大臂后段(快换

Length: 1,250 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

371-0139

Installation route: 大臂前段(快换)~大臂后段(快换

Length: 1,210 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 22

463-5709

Installation route: 大臂(快换)~单向阀(液压油箱后)前

Length: 2,260 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 4

277-1251

Installation route: 大臂(快换)~小臂(快换)

Length: 1,400 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 5

370-0303

Installation route: 大臂后段快换管

Length: 2,560 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
