Individual hose record

137-4678 Hose Repair Specifications

Excavator · Caterpillar · CAT®315-A · Attachments – Lock Valve

Finished length3,600 mm

Locate this hose

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 137-4678 before removing the hose.

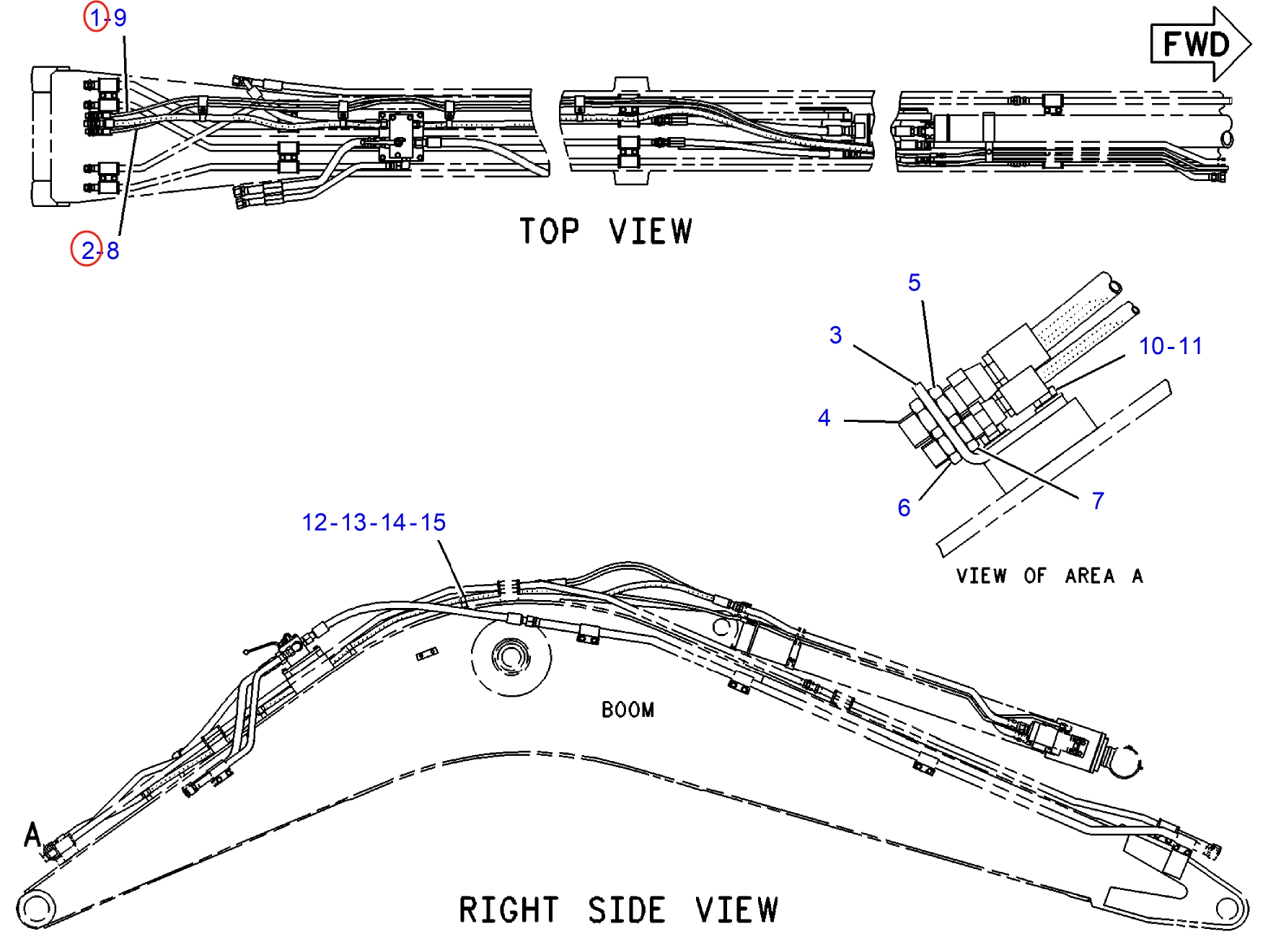

Caterpillar CAT®315-A installation diagram showing hydraulic hose 137-4678 at Pipe No. 2 — **Caterpillar CAT®315-A**Part 137-4678 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 137-4678
Diagram pipe number: 2
Installation route: 小臂油缸锁止阀
Hose specification: DN10;1SN-6;15.7Mpa
Finished length: 3,600 mm
Working pressure: 15.7 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 4

7T-6625

Installation route: 过渡接头(大臂油缸锁止阀)~分配阀

Length: 2,200 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 5

8R-2014

Installation route: 过渡接头(大臂油缸锁止阀)~过渡阀块(大臂油缸锁止阀)

Length: 600 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 7

141-6246

Installation route: 左大臂油缸锁止阀~过渡接头(大臂油缸锁止阀)

Length: 620 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 10

141-6247

Installation route: 左大臂油缸锁止阀~过渡接头(大臂油缸锁止阀)

Length: 910 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 4

137-6451

Installation route: 大臂(锁止阀)~分配阀前

Length: 2,100 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 28

6C-6464

Installation route: Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀

Length: 1,300 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 10

103-1434

Installation route: 过渡接头(大臂油缸锁止阀)~分配阀下

Length: 1,200 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 1

137-4679

Installation route: 小臂油缸锁止阀

Length: 3,500 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
