Individual hose record

085-4610 Hydraulic Hose Replacement Specifications

Excavator · Caterpillar · CAT®EL200B · Control Valve

Finished length508 mm

Hose repair card

Everything needed to identify and make this hose

Caterpillar CAT®EL200BPipe No. 4 · Part 085-4610

LocateInstallation diagram — Pipe No. 4

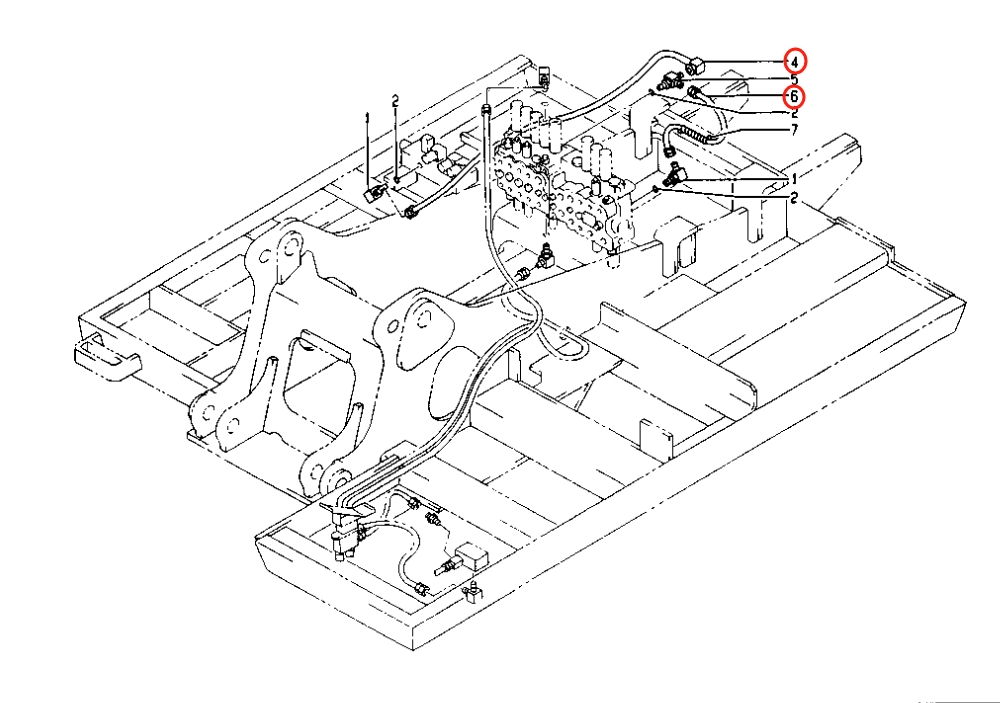

Caterpillar CAT®EL200B installation diagram showing hydraulic hose 085-4610 at Pipe No. 4
Make this hose085-4610
L = 508 mmDN10;2SN-6;33MpaL0°R0°
Finished length508 mm
Working pressure33 MPa
Hose specificationDN10;2SN-6;33Mpa
Quantity1
L0°

Left fittingAmerican female thread, 37° cone seatJIC 37° · 0°View real fitting photos ↗

R0°

Right fittingAmerican female thread, 37° cone seatJIC 37° · 0°View real fitting photos ↗

RouteInstallation route — English review pending

Tap the card to enlarge it without leaving this page.

085-4610 hose repair card

Repair specifications

Part number
085-4610
Diagram pipe number
4
Installation route
Installation route — English review pendingOriginal Chinese: 分配阀后~电磁阀
Hose specification
DN10;2SN-6;33Mpa
Finished length
508 mm
Working pressure
33 MPa
Left fitting
American female thread, 37° cone seatOriginal Chinese: 美制内螺纹37°锥
Right fitting
American female thread, 37° cone seatOriginal Chinese: 美制内螺纹37°锥
Quantity
1

Workshop guide

Finding the correct hydraulic hose for Caterpillar CAT®EL200B Control Valve

Start with the machine and route

For Caterpillar CAT®EL200B Control Valve, identify the exact model and hydraulic system on the machine first. A part number or diagram pipe number is the fastest way to narrow a replacement hose; if neither is visible, compare the installation route and the existing hose.

See all Caterpillar CAT®EL200B systems

Read the dimensions before cutting

Check whether a listed dimension is finished assembly length, hose-only length, or cut length. These are not interchangeable. Confirm hose specification and pressure rating, then compare both ends separately: thread, sealing seat, size, angle, and orientation.

Records to compare

  • 085-4610508 mm · DN10;2SN-6;33Mpa · Installation route — English review pending

Use the drawing as a location check

Where an installation drawing or manual figure is available, match its callout to the part number and physical route. A hydraulic circuit diagram explains connections but does not show the exact routing of a hose on the machine. Take the old hose or clear end-fitting photographs to the workshop if any dimension is missing.

Optional cross-check

Ask an AI search tool to check this repair data

The question is already written for this machine or hose. Use a tool with web search enabled; treat its answer as a starting point and verify on the machine.

ChatGPT Perplexity Claude Google AI Mode
See the exact question being sent
I am checking hydraulic hose repair information for "085-4610 Hydraulic Hose Replacement Specifications". Use web search and cite a source for every factual point. Compare this HoseSeek page with manufacturer manuals and reliable parts documentation: https://www.hoseseek.com/hoses/hose_585b42be6049705ea67bdeca/
HoseSeek currently shows: part number: 085-4610; diagram pipe number: 4; installation route: Installation route — English review pending; hose specification: DN10;2SN-6;33Mpa; finished length in millimetres: 508; left fitting: American female thread, 37° cone seat; right fitting: American female thread, 37° cone seat.

Verify, where applicable:
1. Exact machine model and any serial-number range.
2. Hydraulic system and installation route.
3. Hose part number and diagram pipe number.
4. Finished length, hose specification, and pressure rating.
5. Both end fittings, including thread, sealing seat, size, and angle.
6. Installation-diagram position and routing.

State explicitly what you could not verify. Do not infer a missing dimension or fitting. End with a short on-machine checklist for a hose repair technician.

For reference only. Confirm the actual hose before fabrication.
